Tractor · 1992Unverified

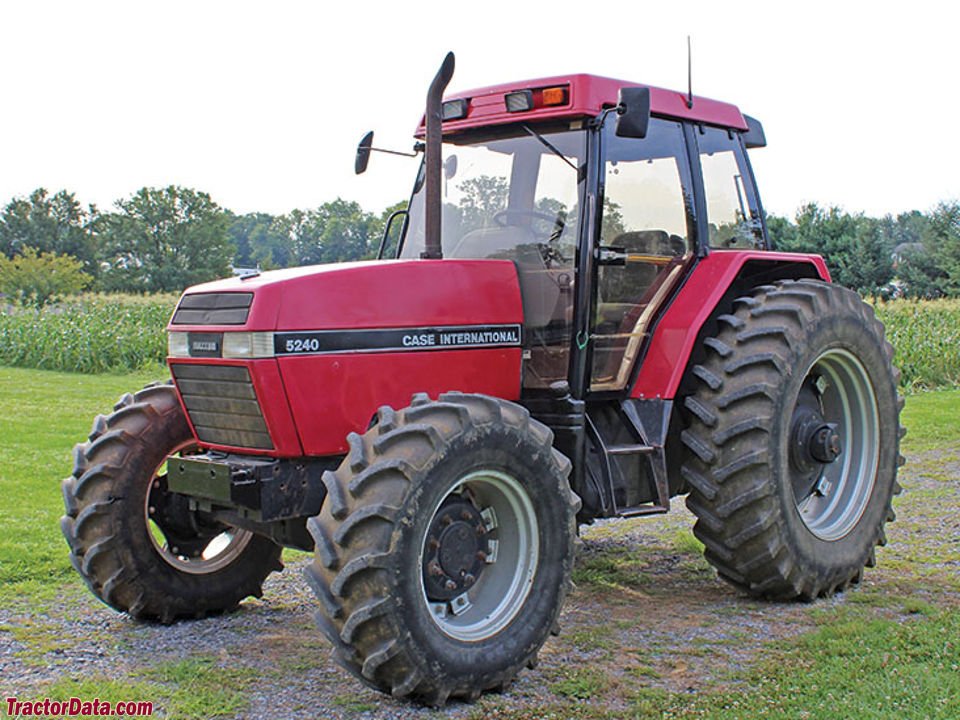

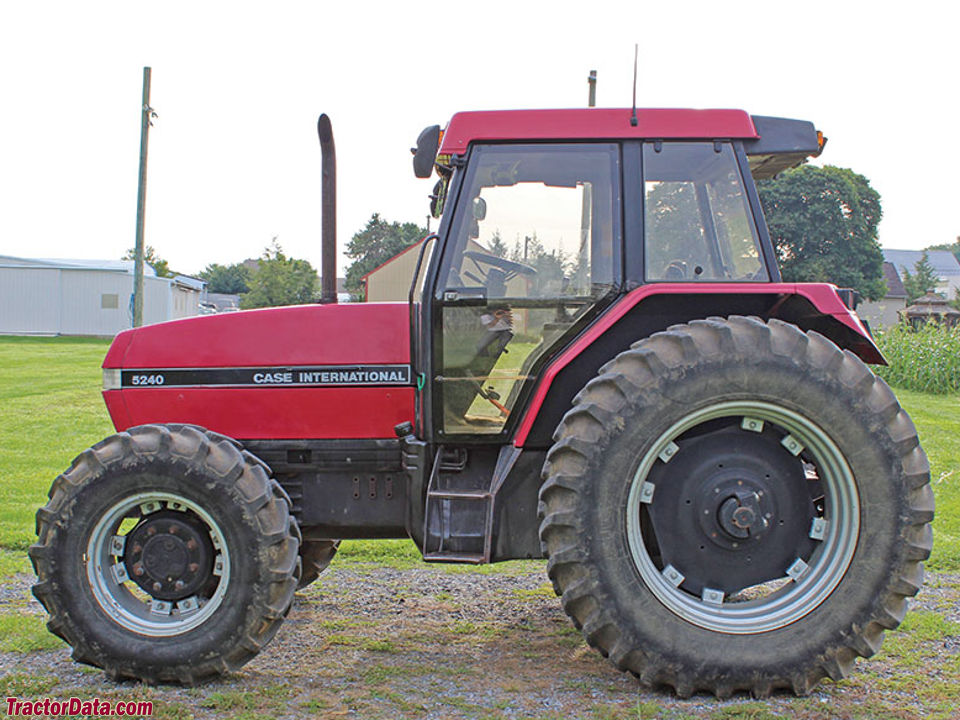

CaseIH 5240 Maxxum
CaseIH 5240 Maxxum — Maxxum Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
9787 to 11067 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Original price was $42,300 in 1997Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
CDC 5.9L 6-cyl dieselReference
Fuel tank135.1 LReference
Fuel tank170.3 LReference
CDCReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Rated RPM2200Reference
Idle RPM850-2355Reference
Starter volts12Reference
Transmission
16-speed synchronizedReference
16-speed 4-speed power shiftReference
TypesynchronizedReference
Gears16 forward and 12 reverseReference
Type4-speed power shiftReference
Four power shift gears in four synchronized ranges and shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Typeclosed center pressure-flow compensatedReference
Pressure179.3 barReference
Valves1 to 3Reference
Pump flow75.7 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift3492 kgReference
Front HitchIIReference
Front lift (at 24"/610mm)2358 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase263 cmReference
4WD Wheelbase258 cmReference
Weight9787 to 11067 poundsReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
Ag front10.00-16Reference
Ag rear18.4-38Reference
2WD Length433 cmReference
4WD Length442 cmReference
2WD ROPS Weight4439 kgReference
4WD ROPS Weight5019 kgReference
@WD Clearance (front axle)56 cmReference
4WD Clearance (front axle)46 cmReference
Clearance (drawbar)47 cmReference
Flange rear axleReference
Bar rear axle2438 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 223 cmReference
Rear tread152 to 279 cmReference
Steering wheel204 cmReference
5240 Serial Numbers
Location:Inside cab on leftReference
1992JJF1015072Reference
1993JJF1023186Reference
1994JJF1029431Reference
1995JJF1036193Reference
1996JJF1047028Reference
1997JJF1059169Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging amps95Reference
Batteries1Reference
Batteries2Reference
Battery volts12Reference
CaseIH 5240 Height
Hood177 cmReference
Cab269 cmReference
Exhaust273 cmReference
Speeds
With 16.9-38 rear tires. Reverse speeds are 22% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
