Tractor · 1992Unverified

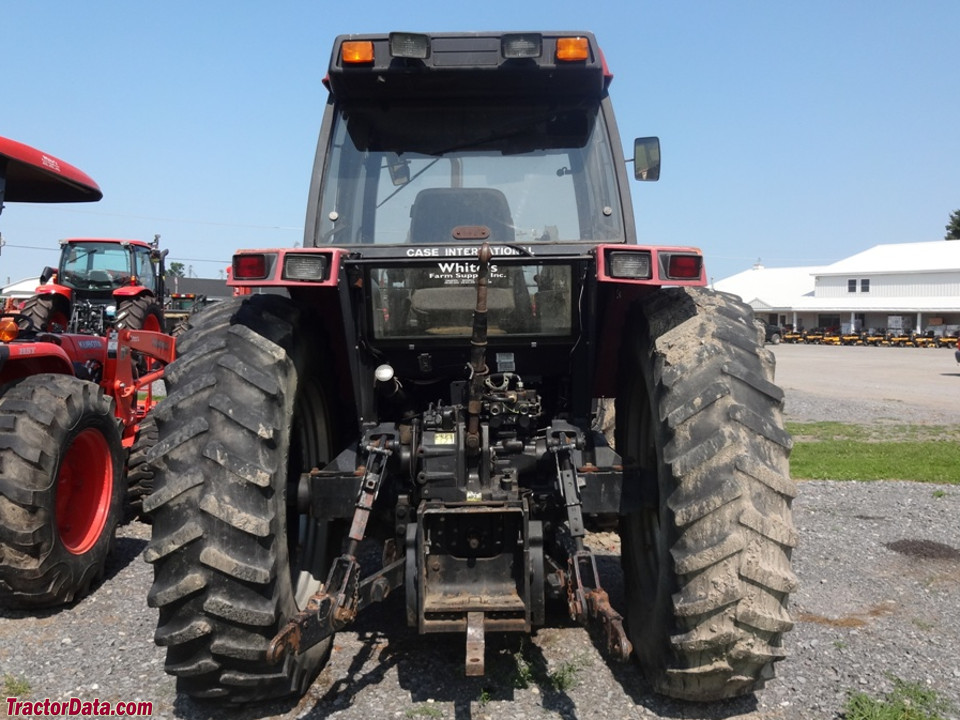

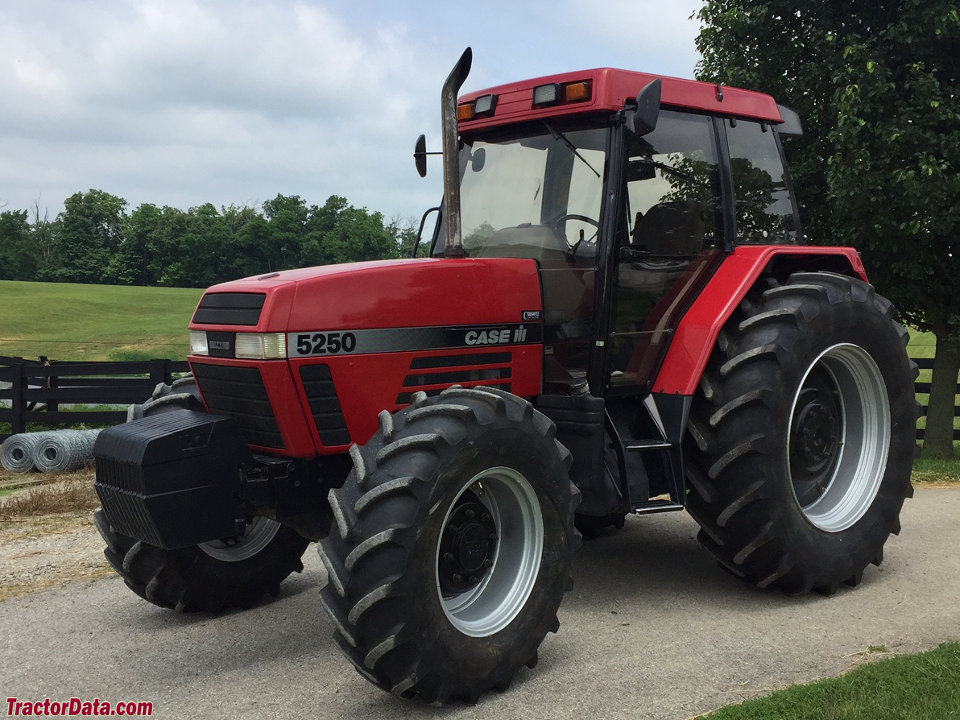

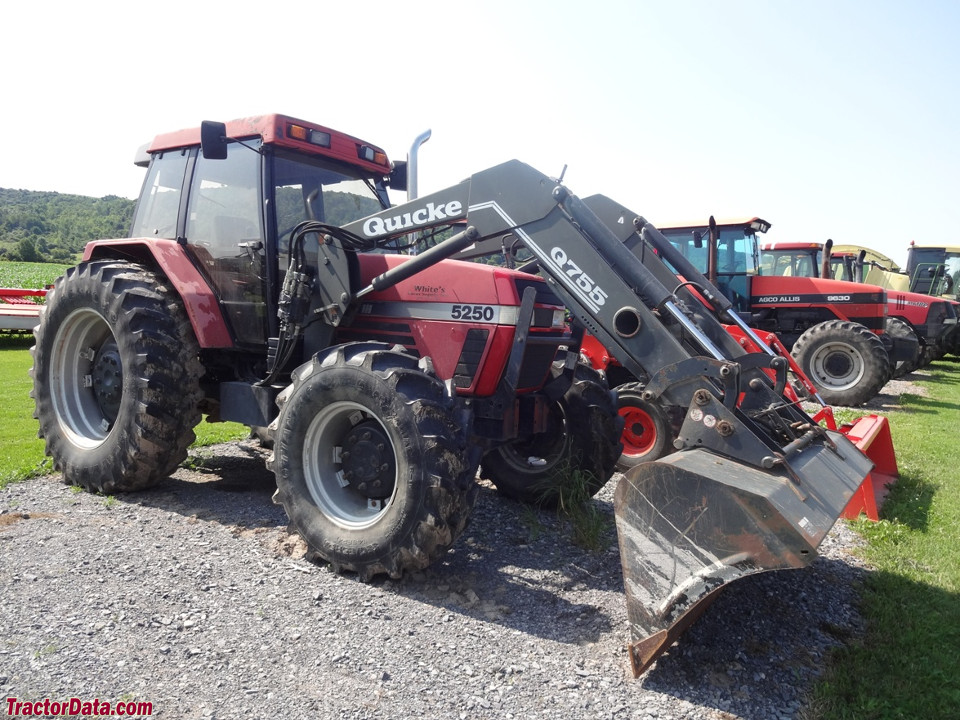

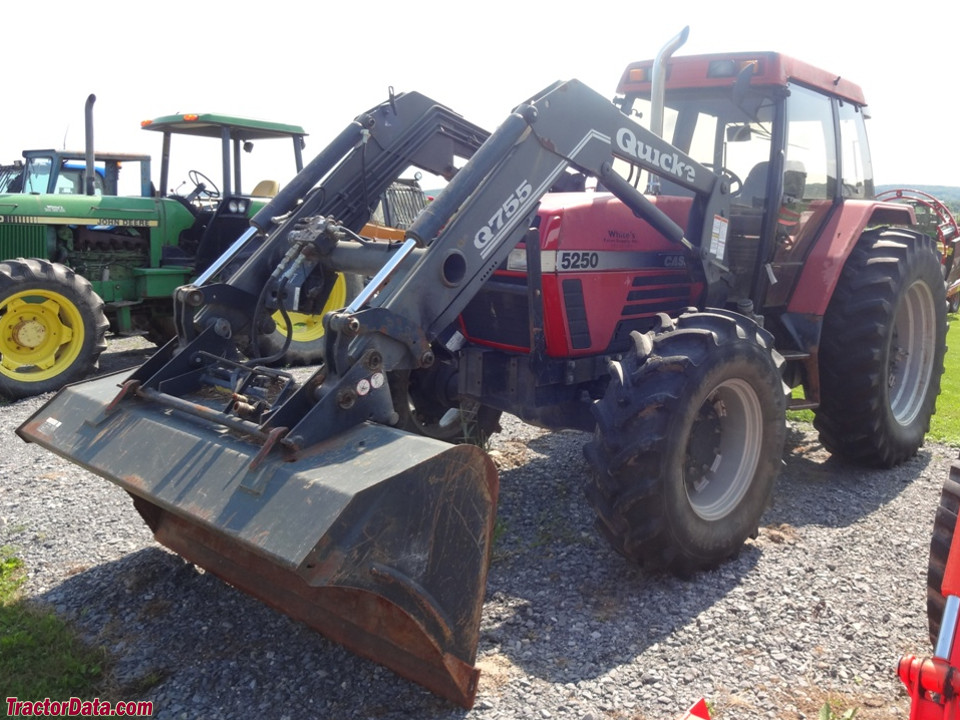

CaseIH 5250 Maxxum

Name: CaseIH 5250 Maxxum
Brand: CaseIH

CaseIH 5250 Maxxum — Maxxum Series · 112 hp. Reference specifications; pending source verification.

The CaseIH 5250 Maxxum is a tractor model with a rated output of 112 horsepower. It was manufactured from 1992 to 1997. The 5250 Maxxum features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. Its listed weight ranges from 9810 to 11090 pounds, suitable for working on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

112 hp

Max power

86.2 kW

Weight

9810 to 11090 pounds

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

112 hp

Transmissions

16-speed 4-speed power shift

Production years

1992-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Original price was $52,000 in 1997Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CDC 5.9L 6-cyl dieselReference

Fuel tank135.1 LReference

Fuel tank170.3 LReference

Drawbar (tested)77.1 kWReference

CDCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Fuel use26.0 l/hourReference

Rated RPM2200Reference

Idle RPM850-2355Reference

Starter volts12Reference

Max power86.2 kWReference

Power at rated engine speed83.7 kWReference

Max power77.1 kWReference

Transmission

16-speed 4-speed power shiftReference

24-speed creeperReference

Type4-speed power shiftReference

Gears16 forward and 12 reverseReference

Four power shift gears in four synchronized ranges and shuttle shifting.Reference

TypecreeperReference

Gears24 forward and 20 reverseReference

PTO & Hydraulics

PTO (claimed)83.5 kWReference

PTO (tested)86.2 kWReference

Typeclosed center pressure-flow compensatedReference

Pressure179.3 barReference

Valves1 to 3Reference

Pump flow75.7 lpmReference

Rear TypeIIReference

Controllower-link draft sensingReference

Rear lift3492 kgReference

Rear lift (at 24"/610mm)3170 kgReference

Front HitchIIReference

Front lift (at 24"/610mm)2358 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase263 cmReference

4WD Wheelbase258 cmReference

Weight9810 to 11090 poundsReference

Front tire7.50-18Reference

Rear tire18.4-38Reference

Ag front7.50-18Reference

Ag rear18.4-38Reference

2WD Length433 cmReference

4WD Length442 cmReference

2WD Clearance (front axle)56 cmReference

4WD Clearance (front axle)46 cmReference

Clearance (drawbar)47 cmReference

Flange rear axleReference

Bar rear axle2438 mmReference

Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Rear tread152 to 279 cmReference

2WD4449 kgReference

4WD5030 kgReference

Ballasted7259 kgReference

Steering wheel204 cmReference

5250 Serial Numbers

Location:Inside cab on leftReference

1992JJF1015072Reference

1993JJF1023186Reference

1994JJF1029431Reference

1995JJF1036193Reference

1996JJF1047028Reference

1997JJF1059169Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Charging amps95Reference

Batteries1Reference

Batteries2Reference

Battery volts12Reference

CaseIH 5250 Height

Hood177 cmReference

Cab269 cmReference

Exhaust273 cmReference

Test results

Diesel 16-speed 4WDJanuary 1993 - March 1993, Link: OCED Tractor Test 1462 fileReference

PTO performanceReference

Fuel use25.7 l/hourReference

Fuel use26.1 l/hourReference

Drawbar performanceReference

Max pull8298 kgReference

Speeds

With 16.9-38 rear tires. Reverse speeds are 22% faster than forward.Reference
