Tractor · 1985Unverified

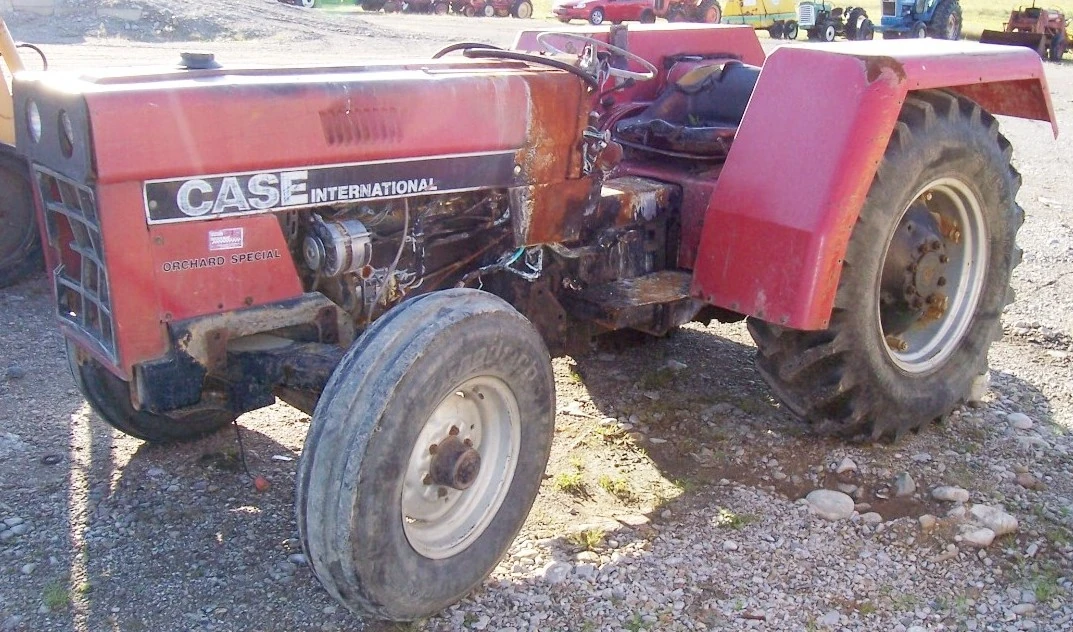

CaseIH 585 Orchard

Name: CaseIH 585 Orchard
Brand: CaseIH

CaseIH 585 Orchard — Orchard/Vineyard tractor · 60 hp. Reference specifications; pending source verification.

The CaseIH 585 Orchard is a tractor model rated at 60 hp — making it one of the more compact options in its class. The 585 Orchard was manufactured from 1985 to 1991. It is powered by a 4-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a powershift transmission. Listed weight is 2372 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

2372 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

60 hp

Recorded weight

2372 kg

Transmissions

8-speed synchromesh

Production years

1985-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Orchard/Vineyard tractorReference

Two-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Open operator station.Reference

Variants

585utilityReference

585-OorchardReference

Engine

CaseIH 3.4L 4-cyl dieselReference

Engine (gross)44.7 kWReference

Engine (net)41.8 kWReference

CaseIH D-206Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 111 mmReference

Power (net)41.8 kWReference

Power (gross)44.7 kWReference

Air cleanerdryReference

Pre-heatingether injectionReference

Compression16:1Reference

Rated RPM2300Reference

Idle RPM700-2590Reference

Torque215.6 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity13.7 LReference

Transmission

8-speed synchromeshReference

16-speed two-speed power shiftReference

TypesynchromeshReference

Gears8 forward and 4 reverseReference

Clutch279mm dry discReference

Oil capacity34.0 LReference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)38.8 kWReference

Hydraulic system34.1 LReference

Capacity34.1 LReference

Pressure172.4 barReference

Pump flow59.8 lpmReference

Pump flow70.4 lpmReference

Steering flow9.5 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Capacities

Fuel70.0 LReference

Dimensions

Wheelbase197 cmReference

Weight2372 kgReference

Front tire9.00x10Reference

Rear tire18.4x16.1Reference

Ag front9.00x10Reference

Ag rear18.4x16.1Reference

Ag front6.00x16Reference

Ag front6.50x16Reference

Ag front7.50x16Reference

Ag front9.5x15Reference

Ag rear13.6x28Reference

Ag rear14.9x24Reference

Ag rear21.5x16.1Reference

Ag rear14.9x28Reference

Ag rear16.9x24Reference

Ag rear16.9x28Reference

Ag rear18.4x26Reference

Width177 cmReference

Height (steering wheel)130 cmReference

Height (hood)121 cmReference

Shipping weight2372 kgReference

Clearance (drawbar)22 cmReference

Flange rear axleReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery volts12Reference

Battery AH93Reference

Speeds

With 18.4x16.1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
