Tractor · 1985Unverified

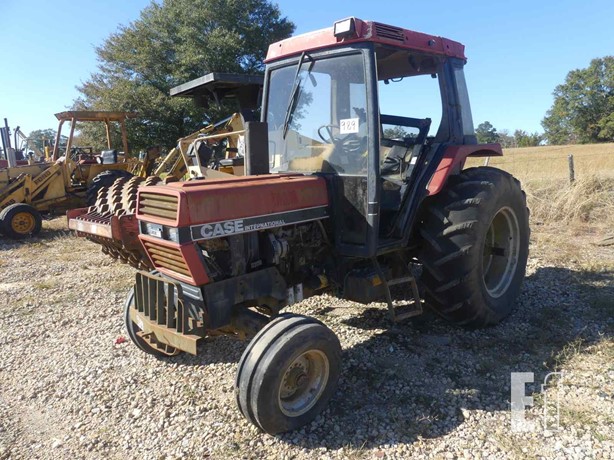

CaseIH 585XL
CaseIH 585XL — 85 XL Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
6400 to 7200 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Secura cab standard.Reference
Engine
CaseIH 3.4L 4-cyl dieselReference
Fuel tank112.0 LReference
Engine44.7 kWReference
CaseIH D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 111 mmReference
Power44.7 kWReference
Compression15:1Reference
Rated RPM2300Reference
Idle RPM700-2560Reference
Torque220.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch280mm dry discReference
Four synchronized gears in two ranges, plus reverse range.Reference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed.Reference
PTO & Hydraulics
PTO (claimed)39.8 kWReference
Pressure172.4 barReference
Pump flow46.9 lpmReference
Steering flow9.8 lpmReference
Steering press.103.4 barReference
Rear TypeII/IReference
ControlTop link draft sensing.Reference
Rear lift1995 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@2140Reference
Engine RPM1000@2190Reference
Dimensions
2WD Wheelbase215 cmReference
4WD Wheelbase215 cmReference
Weight6400 to 7200 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6-38Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 13.6-38Reference
Length361 cmReference
Height (cab)261 cmReference
2WD Weight2903 kgReference
4WD Weight3265 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420Reference
Battery volts12Reference
Battery AH95Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
