Tractor · 1985Unverified

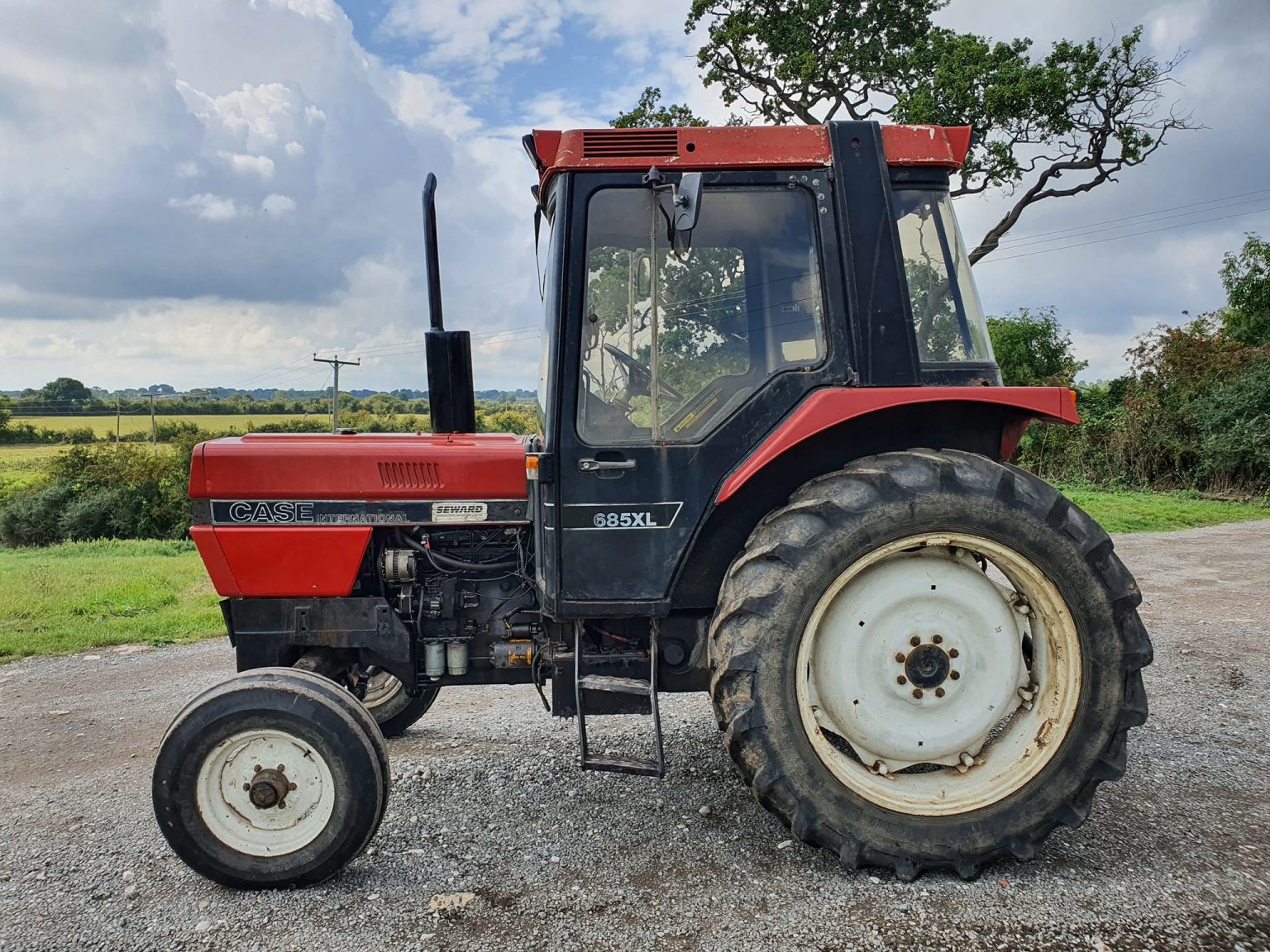

CaseIH 685XL
CaseIH 685XL — 85 XL Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
6700 to 7200 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Secura cab standard.Reference
Engine
CaseIH 3.9L 4-cyl dieselReference
Fuel tank112.0 LReference
Engine51.5 kWReference
CaseIH D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power51.5 kWReference
Compression15:1Reference
Rated RPM2300Reference
Torque238.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch304mm dry discReference
Four synchronized gears in two ranges, plus reverse range.Reference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed.Reference
PTO & Hydraulics
PTO (claimed)47.9 kWReference
Pressure172.4 barReference
Pump flow46.9 lpmReference
Steering flow9.8 lpmReference
Steering press.106.9 barReference
Rear TypeII/IReference
ControlTop-link draft sensing.Reference
Rear lift2381 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Engine RPM540@2140Reference
Engine RPM1000@2190Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase216 cmReference
Weight6700 to 7200 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Length374 cmReference
Height (cab)264 cmReference
2WD Weight3039 kgReference
4WD Weight3265 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420Reference
Battery volts12Reference
Battery AH95Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
