Tractor · 1990Unverified

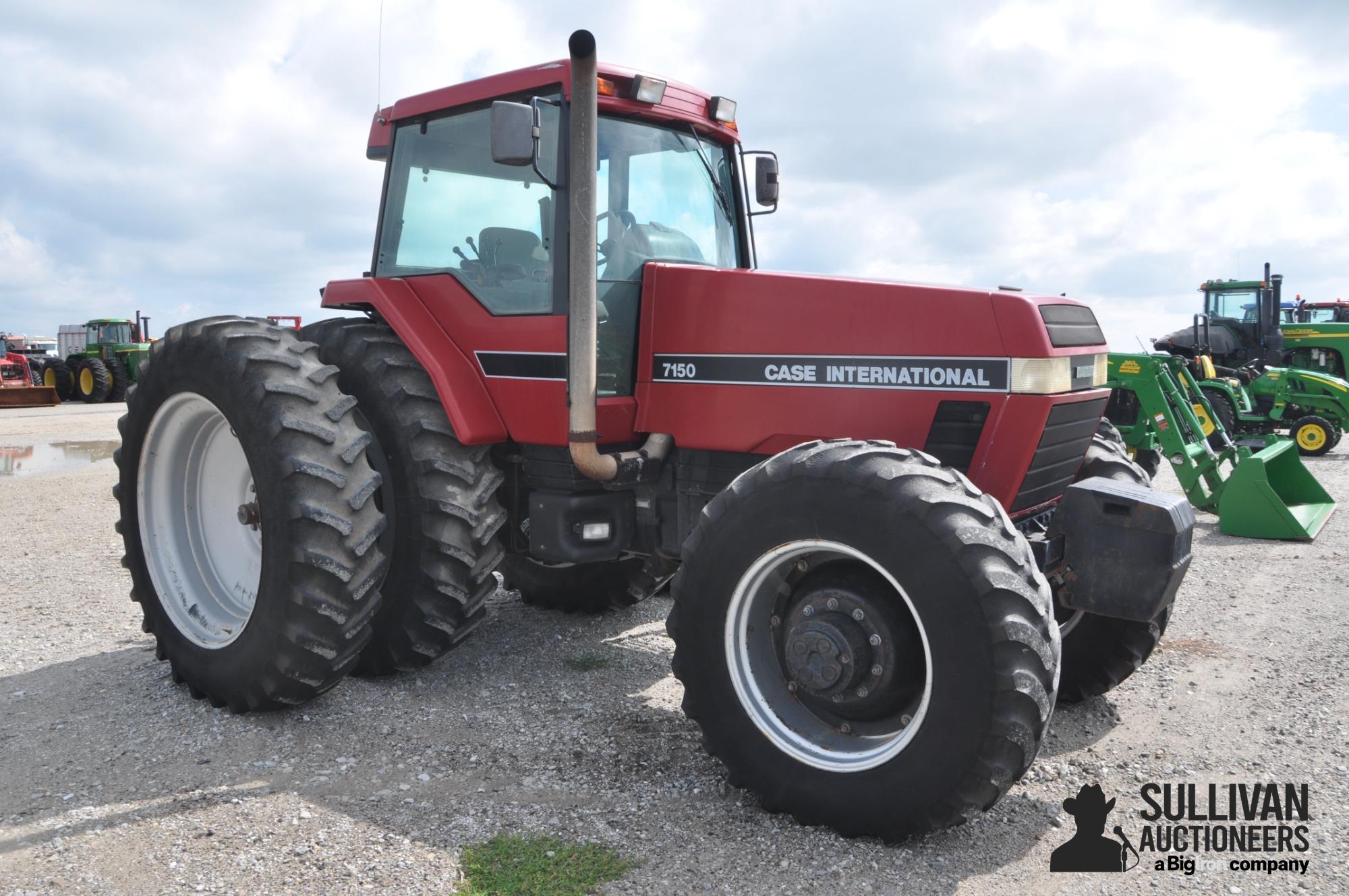

CaseIH 7150
CaseIH 7150 — Magnum Series · 217 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
217 hp
Max power
179.7 kW
Weight
8431 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price$115,000 (1993)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Silent Guardian II Cab standard with air-conditioning. Optional radio/tape deck.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)142.1 kWReference
CDCReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power179.7 kWReference
Power at rated engine speed161.7 kWReference
Max power142.1 kWReference
Transmission
18-speed full powershiftReference
24-speedReference
Typefull powershiftReference
Gears18 forward and 4 reverseReference
Clutchwet discReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)160.3 kWReference
PTO (tested)179.7 kWReference
Hydraulic system191.1 LReference
Typeclosed center pressure flow compensated (PFC)Reference
Capacity191.1 LReference
Pressure179.3 barReference
Valves2 to 4Reference
Pump flow83.3 lpmReference
Total flow109.8 lpmReference
Rear TypeIIIReference
Controlelectronic lower linkReference
Rear lift5769 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2200Reference
Capacities
Fuel359.6 LReference
Dimensions
Wheelbase300 cmReference
Weight8431 kgReference
Front tire16.9-26Reference
Rear tire20.8-38Reference
Ag front16.9-26Reference
Ag rear20.8-38Reference
Operating weight8431 kgReference
Ballasted weight11784 kgReference
7150 Serial Numbers
Location:On the floor, inside the tractor's cab.Reference
1990JJA0018838Reference
1991JJA0030160Reference
1992JJA0039300Reference
1993JJA0046350Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDNovember 3 - 13, 1992Link: OCED Tractor Test 1663 fileReference
PTO performanceReference
Fuel use49.6 l/hourReference
Fuel use47.3 l/hourReference
Drawbar performanceReference
Gear 7 used for power test.Reference
Max pull8662 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
