Tractor · 1994Unverified

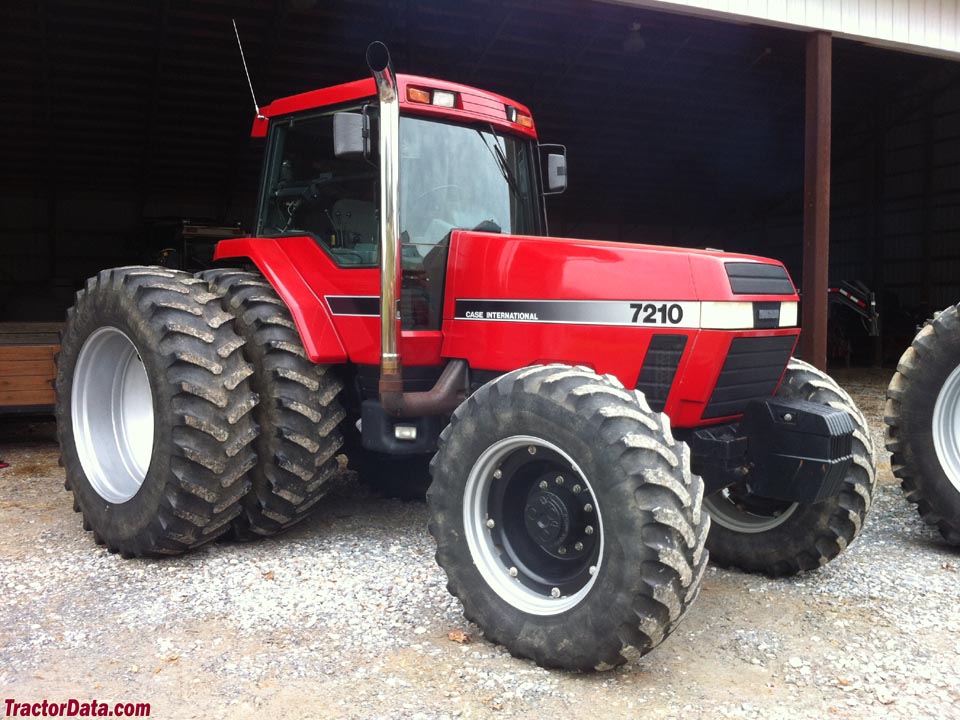

CaseIH 7210
CaseIH 7210 — Magnum 7200 Series · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Max power
98.7 kW
Weight
15215 to 16590 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $71,000 in 1996Reference
Two- or four-wheel driveReference
Differential lockelectric rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)87.1 kWReference
CDCReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemmechanical injectionReference
Air cleanerdual paper elementsReference
Pre-heatingblock heaterReference
Compression17.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity26.5 LReference
Max power98.7 kWReference
Power at rated engine speed98.4 kWReference
Max power87.1 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchhydraulic wet discReference
TypecreeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
PTO (tested)98.7 kWReference
Hydraulic system172.2 LReference
Typeclosed center pressure flow compensated (PFC)Reference
Capacity172.2 LReference
Pressure158.6 barReference
Valves2 to 4Reference
SCV flow83.3 lpmReference
Total flow109.8 lpmReference
Rear TypeIII/IIINReference
Controlelectronic lower-link draft sensingReference
Rear lift3492 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (dual-shaft 1.375)Reference
Capacities
Fuel295.2 LReference
Fuel359.6 LReference
Dimensions
Wheelbase300 cmReference
Weight15215 to 16590 poundsReference
Front tire11.00-16Reference
Rear tire18.4R-38Reference
Ag front11.00-16Reference
Ag rear18.4R-38Reference
2WD Clearance (front axle)56 cmReference
4WD Clearance (front axle)42 cmReference
Rear axle88 by 2438 mmReference
Rear axle88 by 2844 mmReference
2WD Front tread152 to 223 cmReference
4WD Front tread152 to 241 cmReference
2WD Shipping6901 kgReference
4WD Shipping7361 kgReference
Operating7525 kgReference
Ballasted8625 kgReference
7210 Serial Numbers
Location:Serial number plate on the dash console inside tractor cab, near the floor.Reference
1994JJA0050001Reference
1995JJA0056459Reference
1996JJA0064978Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Charging volts12Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDJune 1 - July 1, 1988Link: OCED Tractor Test 1609 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Fuel use30.3 l/hourReference
Drawbar performanceReference
Fuel use29.5 l/hourReference
Gear 9 used for power test.Reference
Max pull7029 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
