Tractor · 1994Unverified

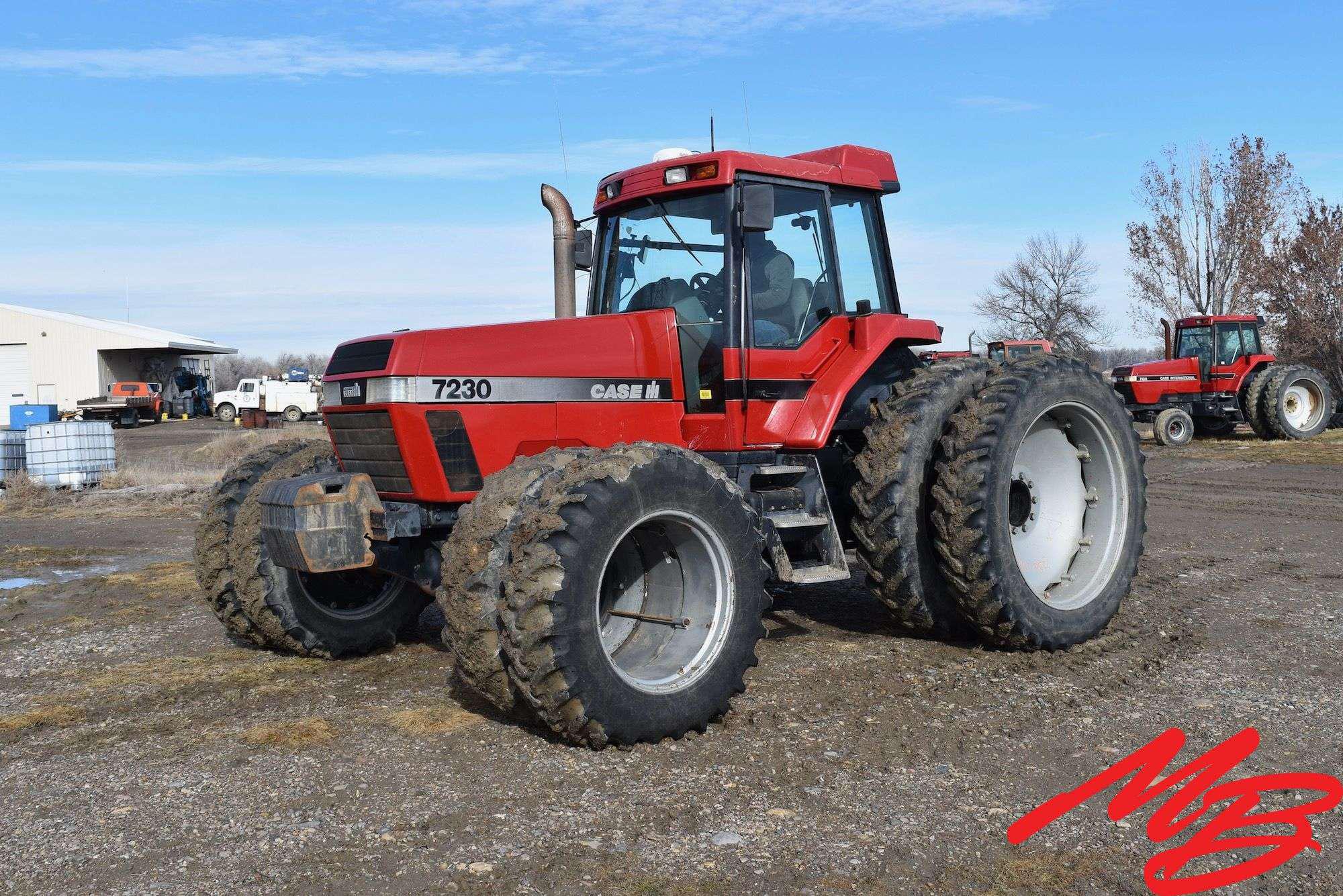

CaseIH 7230

Name: CaseIH 7230
Brand: CaseIH

CaseIH 7230 — Magnum 7200 Series · 173 hp. Reference specifications; pending source verification.

The CaseIH 7230 is a tractor featuring a rated output of 173 hp, categorising it among the more powerful machines in its class. It was manufactured from 1994 to 1996. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, with four-wheel drive and a powershift transmission. Its listed weight ranges from 15750 to 17790 pounds, and it is suitable for tasks covering approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

173 hp

Max power

133.6 kW

Weight

15750 to 17790 pounds

Catalogue coverage

Variants represented

Richest spec table

99 rows

Recorded power

173 hp

Transmissions

18-speed full power shift

Production years

1994-1996

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price was $87,000 in 1996Reference

Two- or four-wheel driveReference

Differential lockelectric rearReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CDC 8.3L 6-cyl dieselReference

Drawbar (tested)115.8 kWReference

CDCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Fuel systemmechanical injectionReference

Air cleanerdual paper elementsReference

Pre-heatingblock heaterReference

Compression16.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity29.3 LReference

Max power133.6 kWReference

Power at rated engine speed128.7 kWReference

Max power115.8 kWReference

Max power137.9 kWReference

Power at rated engine speed128.6 kWReference

Max power110.3 kWReference

Transmission

18-speed full power shiftReference

24-speed creeperReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

Clutchhydraulic wet discReference

TypecreeperReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)126.8 kWReference

PTO (tested)137.9 kWReference

Hydraulic system172.2 LReference

Typeclosed center pressure flow compensated (PFC)Reference

Capacity172.2 LReference

Pressure158.6 barReference

Valves2 to 4Reference

SCV flow83.3 lpmReference

Total flow109.8 lpmReference

Rear TypeIII/IIINReference

Controlelectronic lower-link draft sensingReference

Rear lift4932 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Rear PTO Type540/1000 (dual-shaft 1.375)Reference

Capacities

Fuel359.6 LReference

Dimensions

Wheelbase300 cmReference

Weight15750 to 17790 poundsReference

Front tire14L-16.1Reference

Rear tire20.8R-38Reference

Ag front14L-16.1Reference

Ag rear20.8R-38Reference

2WD Clearance (front axle)57 cmReference

4WD Clearance (front axle)44 cmReference

Rear axle101 by 2895 mmReference

Rear axle101 by 3048 mmReference

2WD Front tread152 to 223 cmReference

4WD Front tread152 to 241 cmReference

2WD Shipping7144 kgReference

4WD Shipping7597 kgReference

Operating8069 kgReference

Ballasted9834 kgReference

7230 Serial Numbers

Location:Serial number plate on the dash console inside tractor cab, near the floor.Reference

1994JJA0050001Reference

1995JJA0056459Reference

1996JJA0064978Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps110Reference

Charging volts12Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Test results

OECD 1611: diesel 18-speed 4WDReference

OECD 1710: diesel 18-speed 4WDReference

Diesel 18-speed 4WDJuly 1988 - 1988, Link: OCED Tractor Test 1611 fileReference

PTO performanceReference

Fuel use36.0 l/hourReference

Fuel use36.7 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Max pull9492 kgReference

Gear 5 used for pull test.Reference

Diesel 18-speed 4WDMay 1 - 10, 1996Link: OCED Tractor Test 1710 fileReference

Fuel use38.6 l/hourReference

Fuel use40.1 l/hourReference

Gear 8 used for power test.Reference

Max pull7658 kgReference

Gear 4 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
