Tractor · 1994Unverified

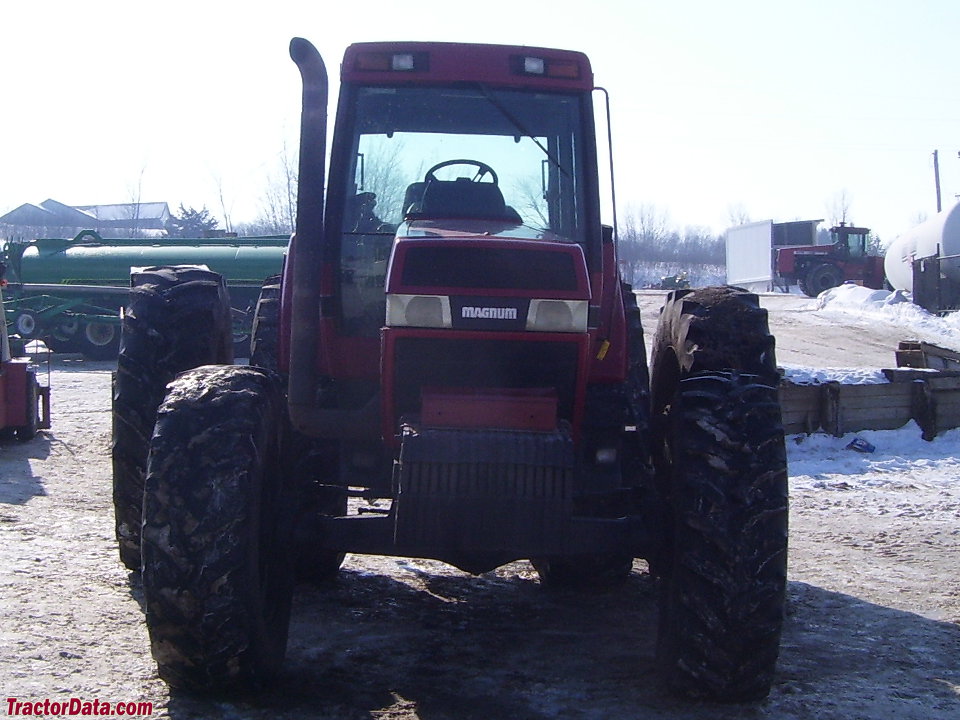

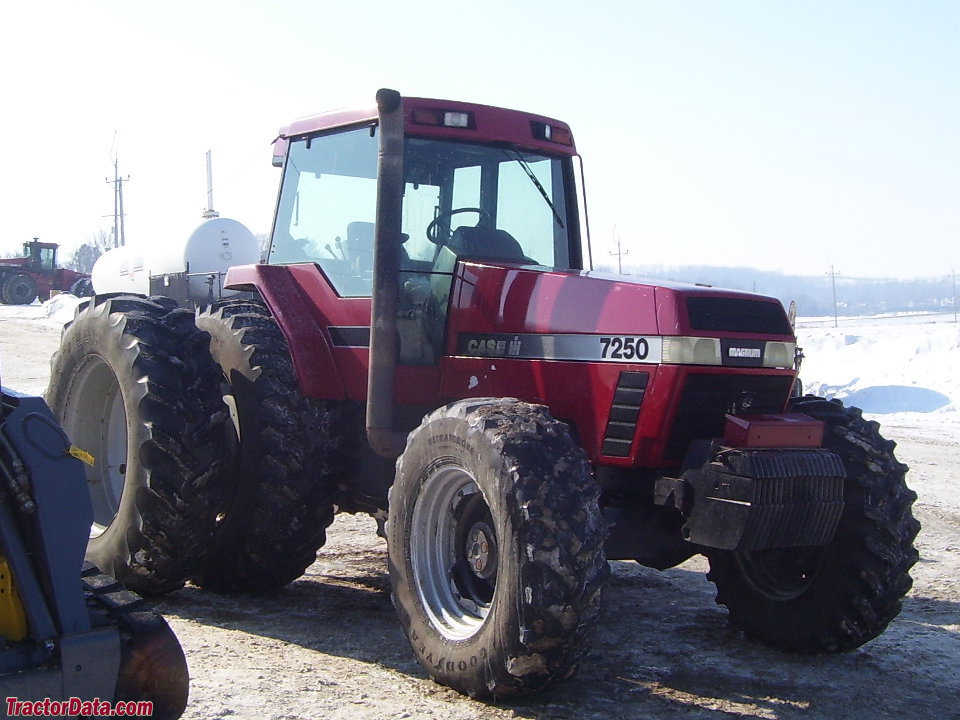

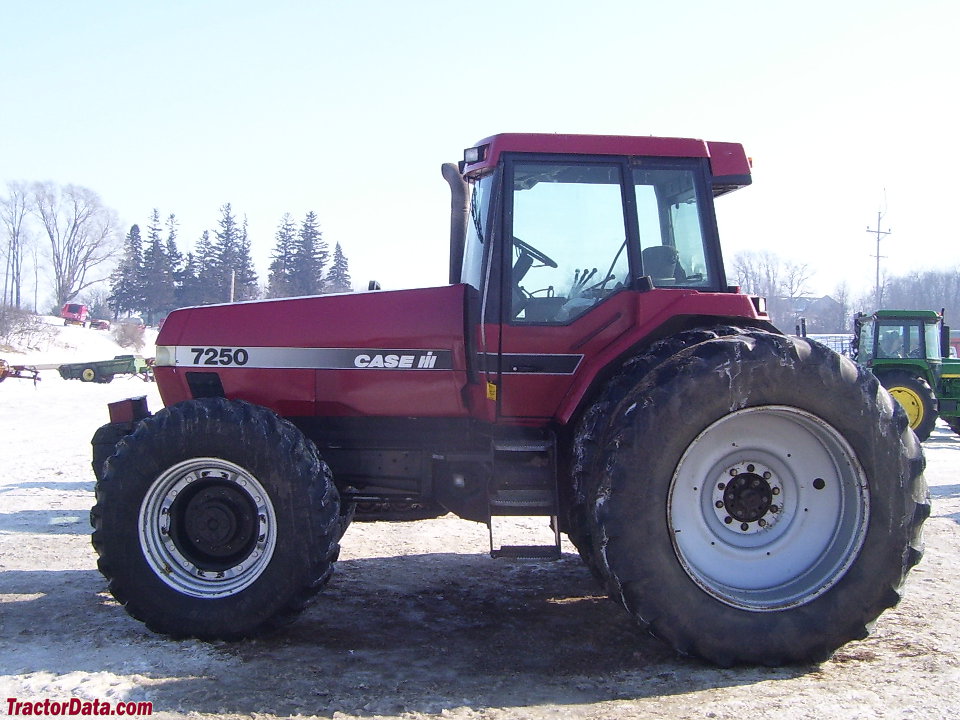

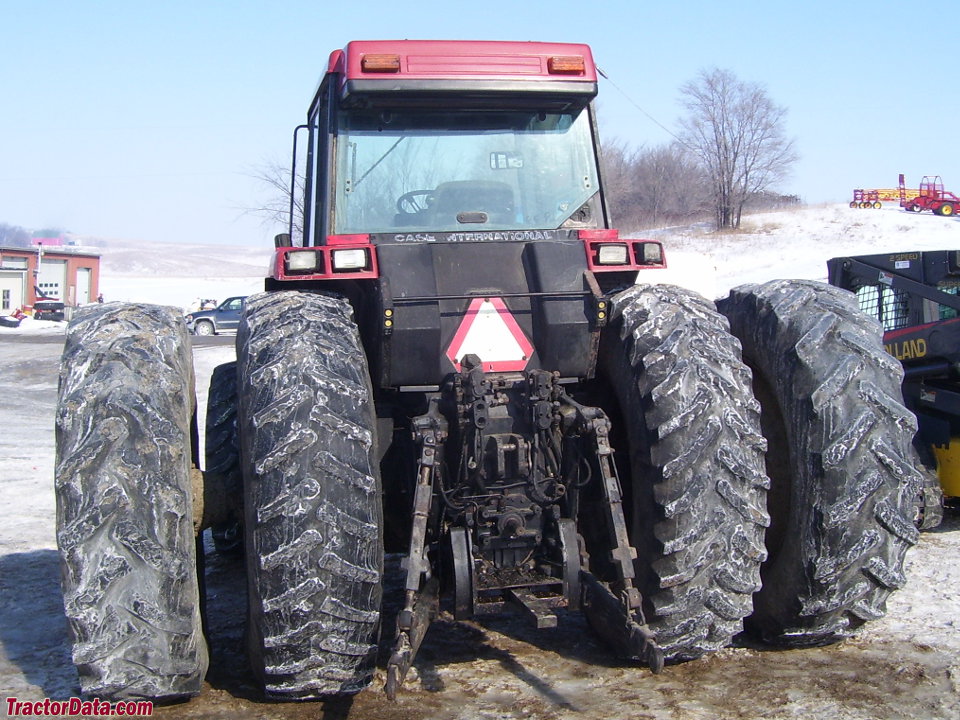

CaseIH 7250
CaseIH 7250 — Magnum 7200 Series · 217 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
217 hp
Max power
181.2 kW
Weight
17445 to 18140 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $112,000 in 1996Reference
Four-wheel driveReference
Differential lockelectric rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)139.7 kWReference
CDCReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemmechanical injectionReference
Air cleanerdual paper elementsReference
Pre-heatingblock heaterReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity29.3 LReference
Max power181.2 kWReference
Power at rated engine speed161.7 kWReference
Max power139.7 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchhydraulic wet discReference
TypecreeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)160.3 kWReference
PTO (tested)181.2 kWReference
Hydraulic system172.2 LReference
Typeclosed center pressure flow compensated (PFC)Reference
Capacity172.2 LReference
Pressure158.6 barReference
Valves3 or 4Reference
SCV flow83.3 lpmReference
Total flow109.8 lpmReference
Rear TypeIIIReference
Controlelectronic lower-link draft sensingReference
Rear lift6781 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel359.6 LReference
Dimensions
Wheelbase300 cmReference
Weight17445 to 18140 poundsReference
Front tire16.9-28Reference
Rear tire20.8R-38Reference
Ag front16.9-28Reference
Ag rear20.8R-38Reference
Shipping weight7913 kgReference
Operating weight8228 kgReference
Clearance (front axle)49 cmReference
Rear axle101 by 3048 mmReference
Front tread152 to 241 cmReference
7250 Serial Numbers
Location:Serial number plate on the dash console inside tractor cab, near the floor.Reference
1994JJA0050001Reference
1995JJA0056459Reference
1996JJA0064978Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Charging volts12Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDMay 7 - 13, 1996Link: OCED Tractor Test 1712 fileReference
PTO performanceReference
Fuel use50.0 l/hourReference
Fuel use48.1 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull8063 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
