Tractor · 1985Unverified

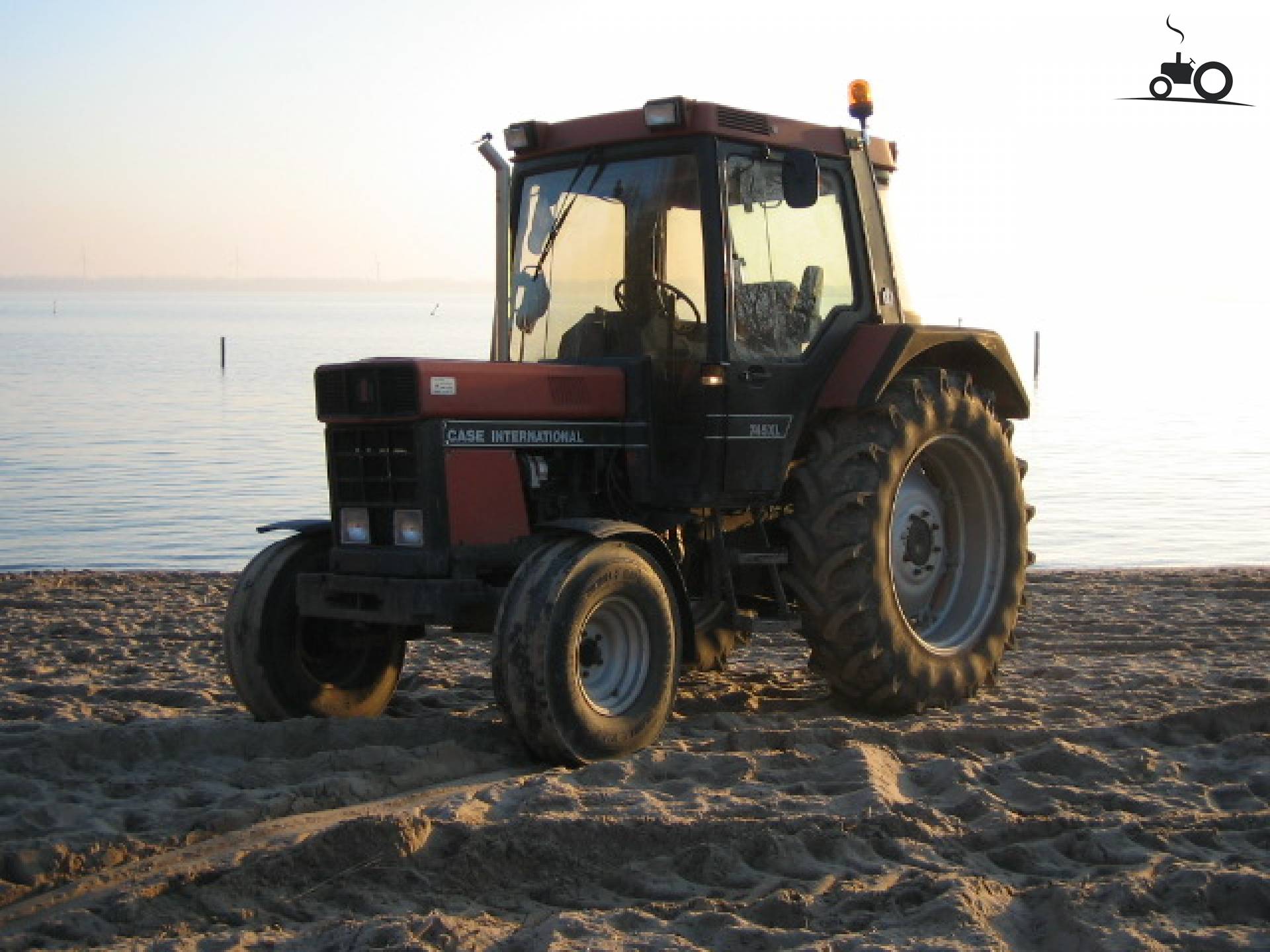

CaseIH 743 XL

Name: CaseIH 743 XL
Brand: CaseIH

CaseIH 743 XL — Utility tractor · 67 hp. Reference specifications; pending source verification.

The CaseIH 743 XL is a tractor model with a rated power of 67 hp, a mid-range figure for its class. It was manufactured between 1985 and 1989. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as 7628 to 8289 pounds, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

67 hp

Weight

7628 to 8289 pounds

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

67 hp

Recorded weight

3460 kg

Transmissions

16-speed

Production years

1985-1989

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Neuss, GermanyReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with heat.Reference

Engine

International Harvester 3.9L 4-cyl dieselReference

Engine50.0 kWReference

International Harvester D-239Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 129 mmReference

Power50.0 kWReference

Fuel systemdirect injectionReference

Rated RPM2300Reference

Torque235.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity9.0 LReference

Oil change200 hReference

Transmission

16-speedReference

8-speedReference

TransmissionIH-Total-synchronReference

Gears16 forward and 8 reverseReference

Gears8 forward and 4 reverseReference

PTO & Hydraulics

Pressure175.0 barReference

Valvesup to 3Reference

Pump flow32.9 lpmReference

Rear TypeIIReference

Controllower link draft sensingReference

Rear lift3151 kgReference

Rear lift4007 kgReference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional 4WD)Reference

Dimensions

2WD Wheelbase239 cmReference

4WD Wheelbase234 cmReference

Weight7628 to 8289 poundsReference

Front tire7.50-16Reference

Rear tire16.9R30 (2WD)Reference

Standard tires (ag)Front: 7.50-16. Rear: 16.9R30 (2WD)Reference

Standard tires (ag)Front: 9.5R24. Rear: 16.9R30 (4WD)Reference

2WD Length389 cmReference

4WD Length397 cmReference

Width204 cmReference

Height (cab)264 cmReference

Height (cab)254 cmReference

2WD Weight3460 kgReference

4WD Weight3759 kgReference

2WD Clearance (front axle)45 cmReference

4WD Clearance (front axle)37 cmReference

Front tread134 to 185 cmReference

Front tread157 to 180 cmReference

Rear tread147 to 197 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Speeds

With 16.9R30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
