Tractor · 1985Unverified

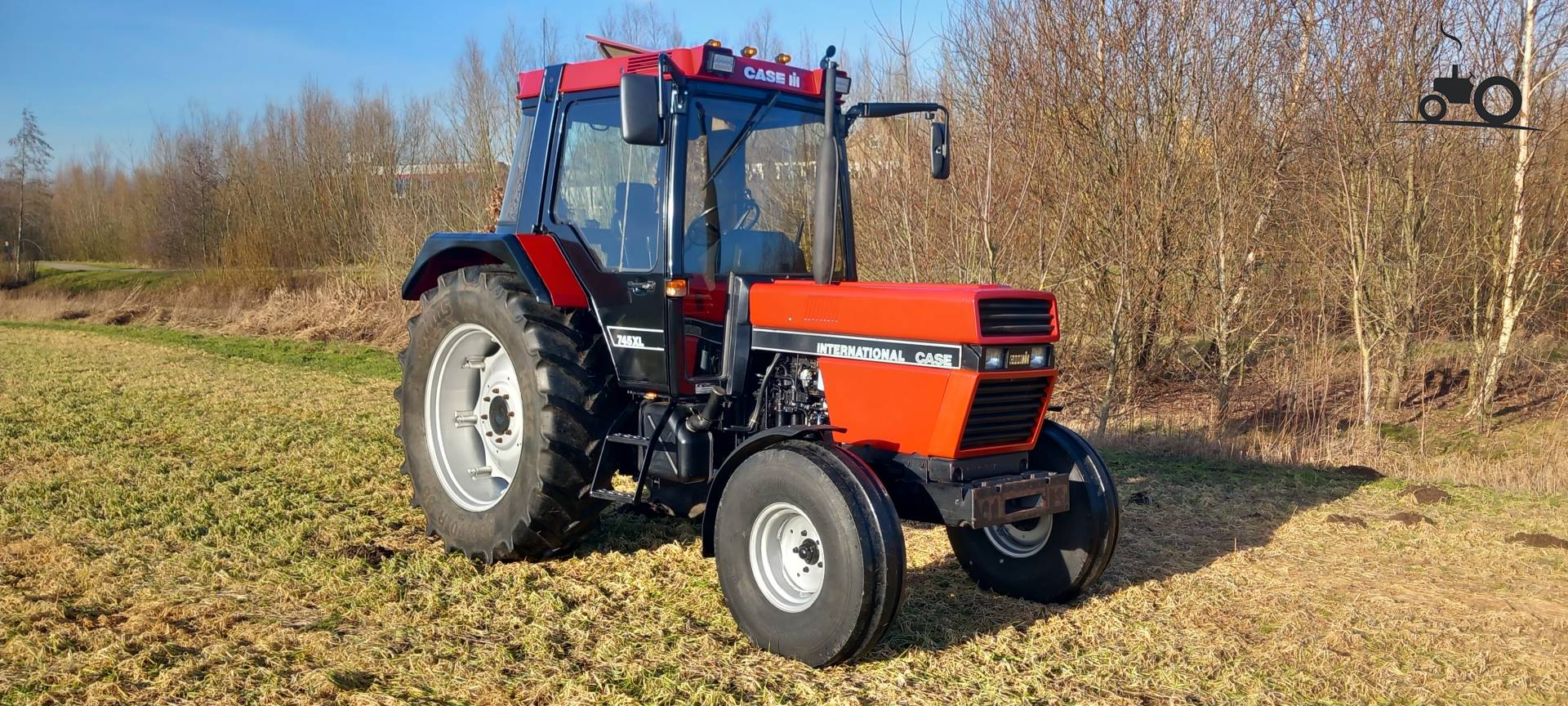

CaseIH 745 XL
CaseIH 745 XL — Utility tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
7981 to 8664 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat.Reference
Engine
International Harvester 3.9L 4-cyl dieselReference
Engine53.7 kWReference
International Harvester D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power53.7 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Torque251.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.0 LReference
Oil change200 hReference
Transmission
16-speedReference
8-speedReference
TransmissionIH-Total-synchronReference
Gears16 forward and 8 reverseReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Valvesup to 3Reference
Pump flow32.9 lpmReference
Rear TypeIIReference
Controllower link draft sensingReference
Rear lift3151 kgReference
Rear lift4007 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional 4WD)Reference
Dimensions
2WD Wheelbase239 cmReference
4WD Wheelbase234 cmReference
Weight7981 to 8664 poundsReference
2WD Length389 cmReference
4WD Length397 cmReference
Width204 cmReference
Height (cab)269 cmReference
Height (cab)259 cmReference
2WD Weight3620 kgReference
4WD Weight3929 kgReference
2WD Clearance (front axle)48 cmReference
4WD Clearance (front axle)40 cmReference
Front tread134 to 185 cmReference
Front tread157 to 180 cmReference
Rear tread147 to 197 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
