Tractor · 1985Unverified

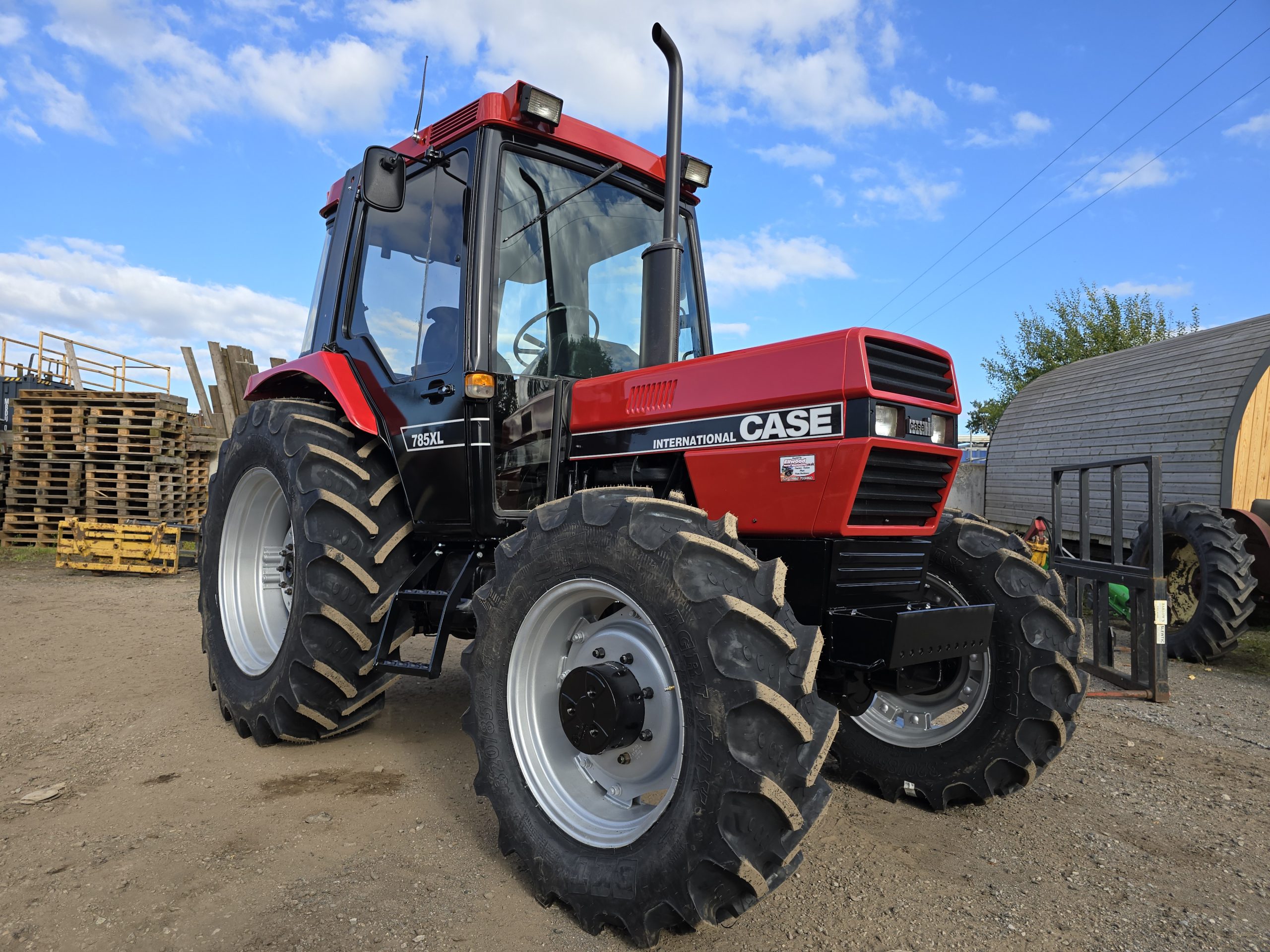

CaseIH 785XL

Name: CaseIH 785XL
Brand: CaseIH

CaseIH 785XL — 85 XL Series · 77 hp. Reference specifications; pending source verification.

The CaseIH 785XL is a tractor model with a rated power output of 77 hp, a mid-range figure for its class. It was manufactured from 1985 to 1990. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system paired with a hydrostatic transmission. Its operating weight ranges from 6700 to 7200 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

77 hp

Weight

6700 to 7200 pounds

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

77 hp

Recorded weight

3039 kg

Transmissions

16-speed

Production years

1985-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Secura cab standard.Reference

Engine

CaseIH 4.0L 4-cyl dieselReference

Fuel tank112.0 LReference

Engine57.4 kWReference

CaseIH D-246Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 140 mmReference

Power57.4 kWReference

Rated RPM2300Reference

Torque256.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

TransmissionTorque AmplifierReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Pump flow46.9 lpmReference

Rear lift2381 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase224 cmReference

4WD Wheelbase216 cmReference

Weight6700 to 7200 poundsReference

Front tire10.00-16Reference

2WD Rear tire16.9-34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-34Reference

4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference

Length374 cmReference

Height (cab)264 cmReference

2WD Weight3039 kgReference

4WD Weight3265 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
