Tractor · 1985Unverified

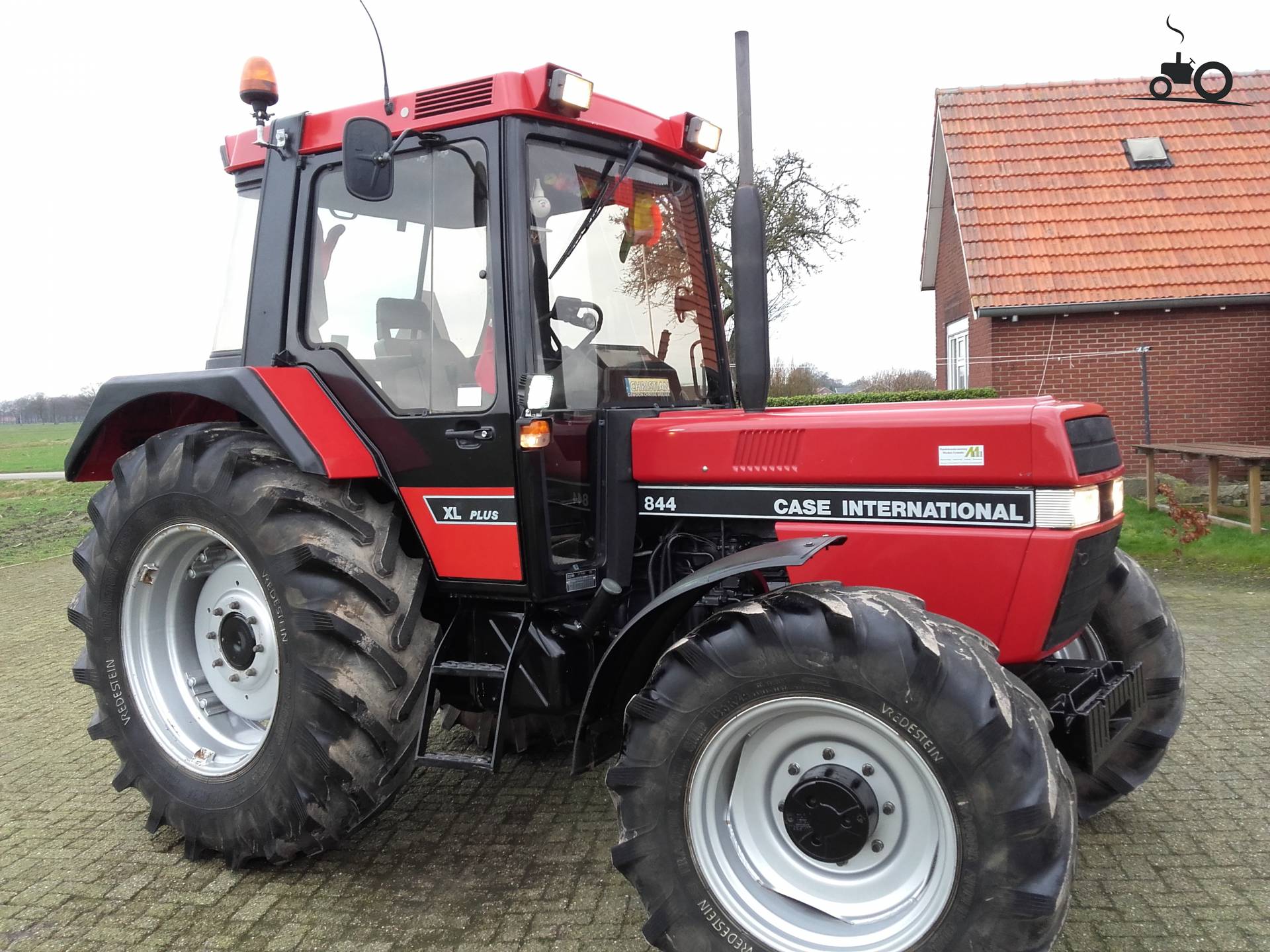

CaseIH 844 XL
CaseIH 844 XL — Utility tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
8069 to 8752 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat.Reference
Engine
International Harvester 4.4L 4-cyl dieselReference
Engine59.7 kWReference
International Harvester D-268Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke100 x 140 mmReference
Power59.7 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Torque296.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.0 LReference
Oil change200 hReference
Transmission
16-speedReference
8-speedReference
TransmissionIH-Total-synchronReference
Gears16 forward and 8 reverseReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Valvesup to 3Reference
Pump flow32.9 lpmReference
Rear TypeIIReference
Controllower link draft sensingReference
Rear lift3151 kgReference
Rear lift4007 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional 4WD)Reference
Dimensions
2WD Wheelbase239 cmReference
4WD Wheelbase234 cmReference
Weight8069 to 8752 poundsReference
Front tire7.50-18Reference
Rear tire16.9R34 (2WD)Reference
Standard tires (ag)Front: 7.50-18. Rear: 16.9R34 (2WD)Reference
Standard tires (ag)Front: 12.4R24. Rear: 16.9R34 (4WD)Reference
2WD Length389 cmReference
4WD Length397 cmReference
Width204 cmReference
Height (cab)269 cmReference
Height (cab)259 cmReference
2WD Weight3660 kgReference
4WD Weight3969 kgReference
2WD Clearance (front axle)48 cmReference
4WD Clearance (front axle)40 cmReference
Front tread134 to 185 cmReference
Front tread157 to 180 cmReference
Rear tread147 to 197 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
