Tractor · 1985Unverified

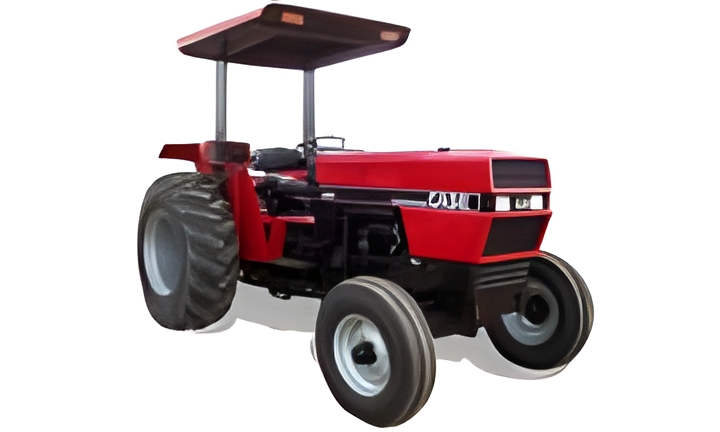

CaseIH 885

Name: CaseIH 885
Brand: CaseIH

CaseIH 885 — 85 Utility Series · 84 hp. Reference specifications; pending source verification.

The CaseIH 885 is a tractor with an approximate power output of 84 hp, a mid-range figure for its class. It was manufactured from 1985 to 1990. The tractor features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. Its listed operating weight ranges from 6065 to 7849 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

84 hp

Weight

6065 to 7849 pounds

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

84 hp

Transmissions

8-speed synchro

Production years

1985-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Original price was $25,700 in 1990Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Independent hydraulic wet disc brakesReference

ROPS available. Cab with heat and air-conditioning optional.Reference

Engine

Case International 4.4L 4-cyl dieselReference

Engine (gross)62.6 kWReference

Engine (net)58.9 kWReference

Case International D-268Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke100 x 140 mmReference

Power (net)58.9 kWReference

Power (gross)62.6 kWReference

Compression15.1:1Reference

Rated RPM2400Reference

Idle RPM650-2650Reference

Torque278.0 NmReference

Torque RPM1600Reference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity13.7 LReference

Transmission

8-speed synchroReference

16-speed two-speed power shiftReference

8-speed shuttleReference

TypesynchroReference

Gears8 forward and 4 reverseReference

Synchronized 4-speed with high, low, and reverse ranges.Reference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

Clutch305mm dry discReference

Synchronized 4-speed with high, low, and reverse ranges and electric-hydraulic power shift between direct and low drive.Reference

TypeshuttleReference

Synchronized 4-speed with high, low, and reverse ranges and forward-reverse power shift shuttle lever.Reference

PTO & Hydraulics

PTO (claimed)53.7 kWReference

2WD Hydraulic system34.1 LReference

4WD Hydraulic system36.5 LReference

Typeopen center gear pumpReference

2WD Capacity34.1 LReference

4WD Capacity36.5 LReference

Pressure172.4 barReference

Valves1 to 3Reference

Pump flow59.8 lpmReference

Total flow59.8 lpmReference

Total flow70.4 lpmReference

Steering flow9.5 lpmReference

Rear TypeIIReference

Rear lift (at 24"/610mm)1478 kgReference

Rear PTOindependent dual shaftReference

Rear PTO Type540/1000Reference

Capacities

Fuel75.7 LReference

Dimensions

2WD Wheelbase223 cmReference

4WD Wheelbase216 cmReference

Weight6065 to 7849 poundsReference

Front tire7.50-18Reference

Rear tire18.4-30Reference

Ag front7.50-18 F2Reference

Ag front11.2-24 R1 (4WD)Reference

Ag rear18.4-30 R1Reference

2WD Length360 cmReference

4WD Length375 cmReference

2WD Width185 cmReference

4WD Width198 cmReference

Height (ROPS)247 cmReference

Height (cab)259 cmReference

Ground clearance46 cmReference

2WD Front tread142 to 195 cmReference

4WD Front tread137 to 182 cmReference

Rear tread152 to 193 cmReference

Rear tread137 to 243 cmReference

Shipping2751 kgReference

Shipping3276 kgReference

2WD Operating3340 kgReference

4WD Operating3560 kgReference

885 Serial Numbers

Location:Serial number plate on the front-right of the tractor.Reference

198515000Reference

198618000Reference

198719138Reference

198822668Reference

198927254Reference

199030427Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemLucas alternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery volts12Reference

Battery AH93Reference

Speeds

With 18.4x30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
