Tractor · 1997Unverified

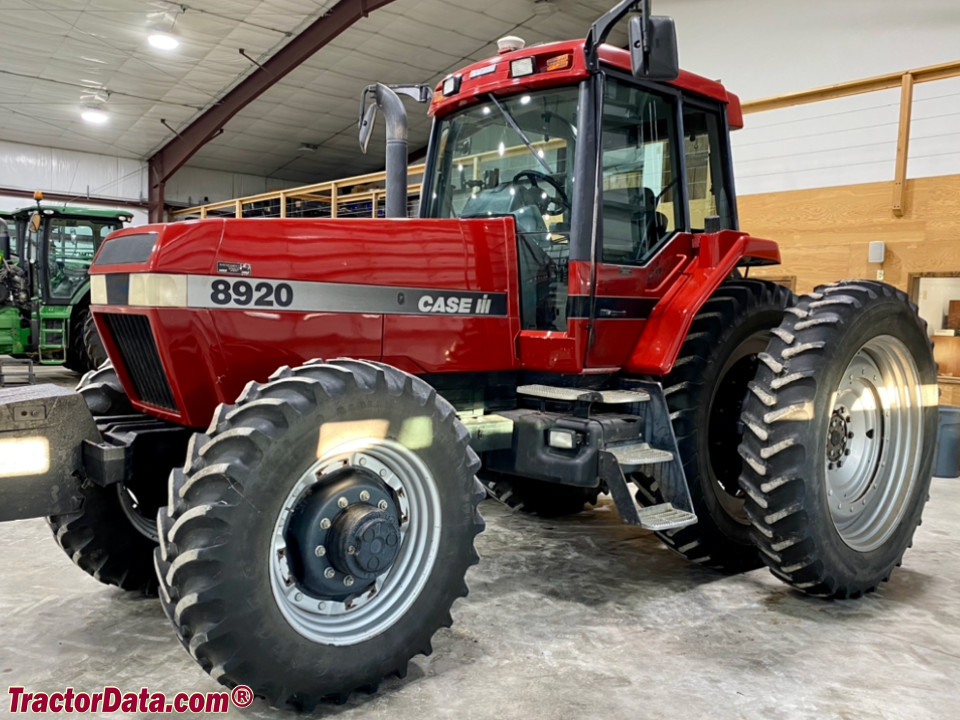

CaseIH 8920

Name: CaseIH 8920
Brand: CaseIH

CaseIH 8920 — Magnum 8900 Series · 157 hp. Reference specifications; pending source verification.

The CaseIH 8920 is a tractor with a power rating of 157 hp, positioning it among the higher-powered machines in its class. It was manufactured from 1997 to 1998 and features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive through a powershift transmission. The tractor's weight is listed as 15630 to 17418 pounds. It is suited to jobs involving areas of around 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

157 hp

Max power

125.7 kW

Weight

15630 to 17418 pounds

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

157 hp

Transmissions

18-speed full power shift

Production years

1997-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price was $96,000 in 1998Reference

Two- or four-wheel driveReference

Differential lockelectric rearReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CDC 8.3L 6-cyl dieselReference

Drawbar (tested)99.0 kWReference

CDCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Fuel systemmechanical injectionReference

Air cleanerdual dry elementReference

Compression16.5:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity26.5 LReference

Max power125.7 kWReference

Power at rated engine speed117.0 kWReference

Max power99.0 kWReference

Transmission

18-speed full power shiftReference

24-speed creeperReference

Typefull power shiftReference

Gears18 forward and 4 reverseReference

Clutchhydraulic wet discReference

TypecreeperReference

Gears24 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)115.6 kWReference

PTO (tested)125.7 kWReference

Hydraulic system172.2 LReference

Typeclosed center pressure-flow compensatedReference

Capacity172.2 LReference

Pressure151.7 barReference

Valves2 to 4Reference

Pump flow109.8 lpmReference

SCV flow102.2 lpmReference

Rear TypeIII/IIINReference

Controlelectronic lower-link draft sensingReference

Rear lift4536 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000 (dual-shaft 1.375)Reference

Capacities

Fuel329.3 LReference

Fuel393.6 LReference

Fuel442.8 LReference

Dimensions

Wheelbase300 cmReference

Weight15630 to 17418 poundsReference

Front tire14L-16.1Reference

Rear tire20.8R-42Reference

Ag front14L-16.1Reference

Ag rear20.8R-42Reference

2WD Clearance (front axle)56 cmReference

4WD Clearance (front axle)42 cmReference

Rear axle101 by 2844 mmReference

Rear axle101 by 2438 mmReference

Rear axle101 by 2997 mmReference

Front tread152 to 223 cmReference

2WD Shipping7089 kgReference

4WD Shipping7518 kgReference

Operating7900 kgReference

CaseIH 8920 attachments

front-end loaderReference

8920 Serial Numbers

Location:Serial number plate on the dashboard console inside the tractor cab, near the floor.Reference

1997JJA0072001Reference

1998JJA0083000Reference

1999JJA0097438Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps110Reference

Charging volts12Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Test results

Diesel 18-speed 4WDApril 30 - May 10, 1996Link: OCED Tractor Test 1709 fileReference

PTO performanceReference

Fuel use36.7 l/hourReference

Fuel use37.1 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull7634 kgReference

Gear 4 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
