Tractor · 1997Unverified

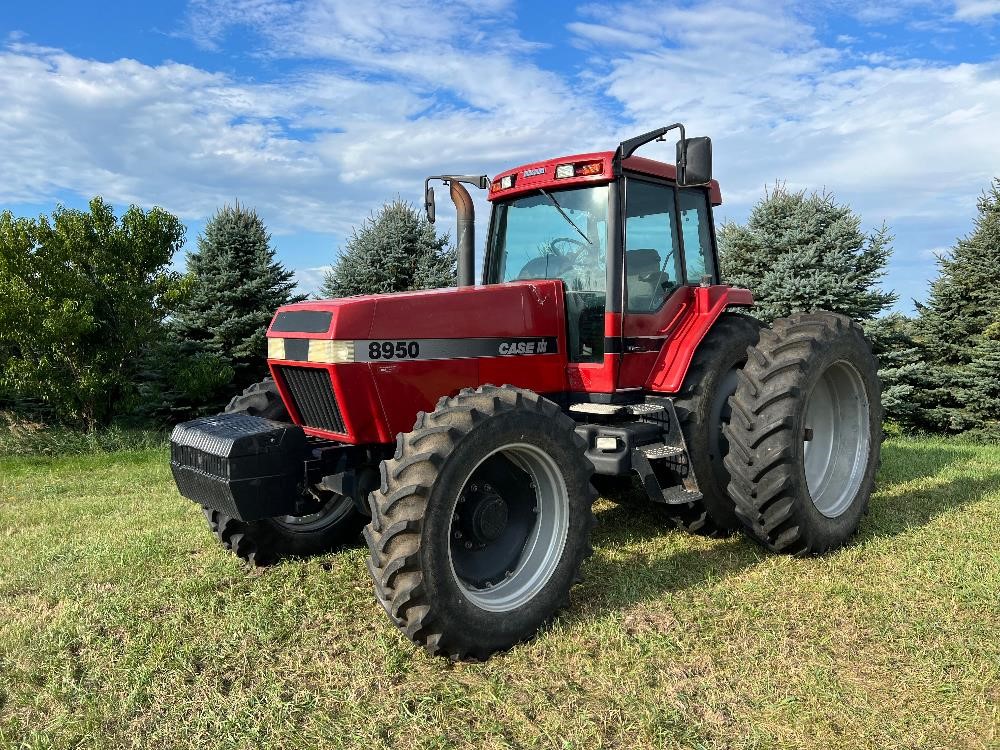

CaseIH 8950
CaseIH 8950 — Magnum 8900 Series · 227 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
227 hp
Max power
190.3 kW
Weight
17445 to 18340 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $133,000 in 1998Reference
Four-wheel driveReference
Differential lockelectric rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
CDC 8.3L 6-cyl dieselReference
Drawbar (tested)146.1 kWReference
CDCReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Fuel systemmechanical injectionReference
Air cleanerdual dry elementReference
Compression16.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity29.3 LReference
Max power190.3 kWReference
Power at rated engine speed169.4 kWReference
Max power146.1 kWReference
Transmission
18-speed full power shiftReference
24-speed creeperReference
Typefull power shiftReference
Gears18 forward and 4 reverseReference
Clutchhydraulic wet discReference
TypecreeperReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)190.3 kWReference
Hydraulic system172.2 LReference
Typeclosed center pressure-flow compensatedReference
Capacity172.2 LReference
Pressure151.7 barReference
Valves3 or 4Reference
Pump flow109.8 lpmReference
SCV flow102.2 lpmReference
Rear TypeIII/IIINReference
Controlelectronic lower-link draft sensingReference
Rear lift7257 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel442.8 LReference
Fuel393.6 LReference
Dimensions
Wheelbase300 cmReference
Weight17445 to 18340 poundsReference
Front tire16.9R-30Reference
Rear tire18.4R-46Reference
Ag front16.9R-30Reference
Ag rear18.4R-46Reference
Shipping weight7913 kgReference
Operating weight8319 kgReference
Clearance (front axle)49 cmReference
Rear axle101 by 3048 mmReference
Front tread152 to 223 cmReference
CaseIH 8950 attachments
front-end loaderReference
8950 Serial Numbers
Location:Serial number plate on the dashboard console inside the tractor cab, near the floor.Reference
1997JJA0072001Reference
1998JJA0083000Reference
1999JJA0097438Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Charging volts12Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 18 - October 1, 1997Link: OCED Tractor Test 1737 fileReference
PTO performanceReference
Fuel use54.1 l/hourReference
Fuel use51.5 l/hourReference
Drawbar performanceReference
Fuel use51.9 l/hourReference
Gear 7 used for power test.Reference
Max pull8512 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
