Tractor · 1986Unverified

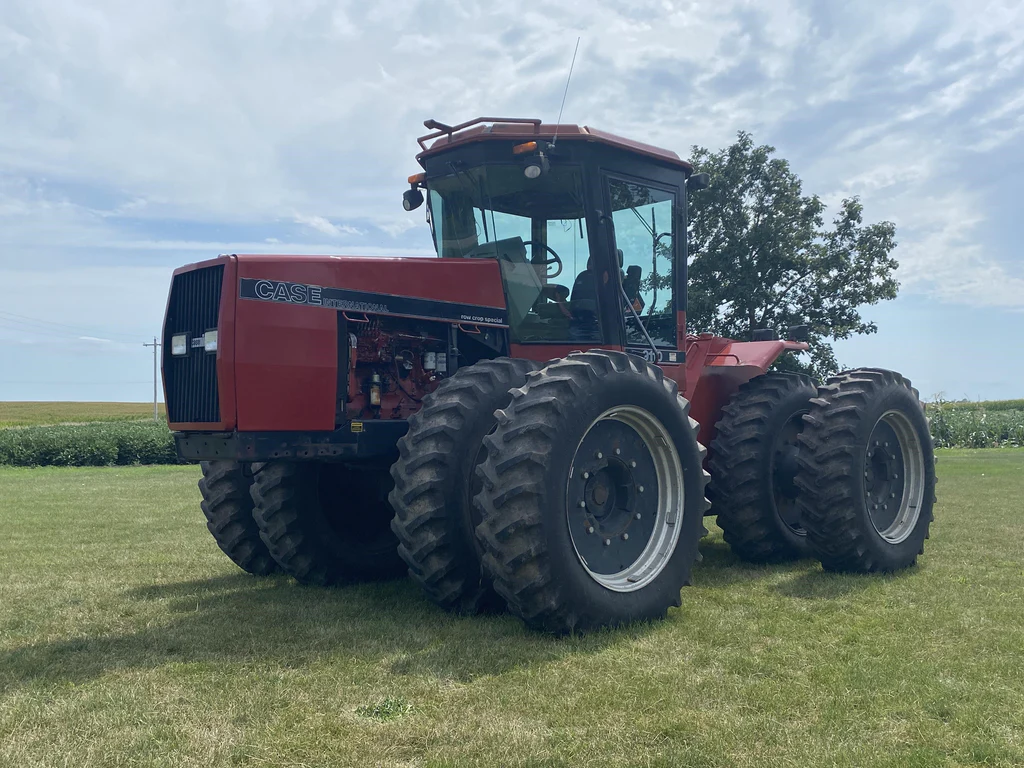

CaseIH 9130

Name: CaseIH 9130
Brand: CaseIH

CaseIH 9130 — Four-wheel Drive (4WD) tractor · 220 hp. Reference specifications; pending source verification.

The CaseIH 9130 is a tractor with a rated output of 220 hp, categorising it as a higher-powered machine in its class. It was manufactured from 1986 to 1990. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a hydrostatic transmission. Its listed weight is 8051 kg, making it suitable for jobs involving approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

220 hp

Weight

8051 kg

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

220 hp

Recorded weight

8051 kg

Transmissions

12-speed full power shift

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $77,000 in 1990Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Steeringhydrostatic power for steerable front axle and articulated chassisReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CDC 8.3L 6-cyl dieselReference

Engine (gross)164.1 kWReference

CDC 6CTAReference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power (gross)164.1 kWReference

Rated RPM2100Reference

Torque969.5 NmReference

Torque RPM1500Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity36.0 LReference

Transmission

12-speed full power shiftReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)141.7 kWReference

Hydraulic system68.1 LReference

Typeclosed centerReference

Capacity68.1 LReference

Pressure172.4 barReference

Valves2 to 4Reference

Total flow102.2 lpmReference

Rear TypeIIIReference

Rear lift5783 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel435.3 LReference

Dimensions

Wheelbase314 cmReference

Weight8051 kgReference

Front tire18.4-38Reference

Rear tire18.4-38Reference

Ag front18.4-38Reference

Ag rear18.4-38Reference

Length613 cmReference

Width303 cmReference

Height (exhaust)329 cmReference

Shipping weight8051 kgReference

Max weight11793 kgReference

Ground clearance52 cmReference

Front axle101 by 3048 mmReference

Bar rear axle101 by 3048 mmReference

Front tread152 to 330 cmReference

Rear tread152 to 330 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps105Reference

Batteries2Reference

Battery volts12Reference

Speeds

With 18.4x38 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
