Tractor · 1986Unverified

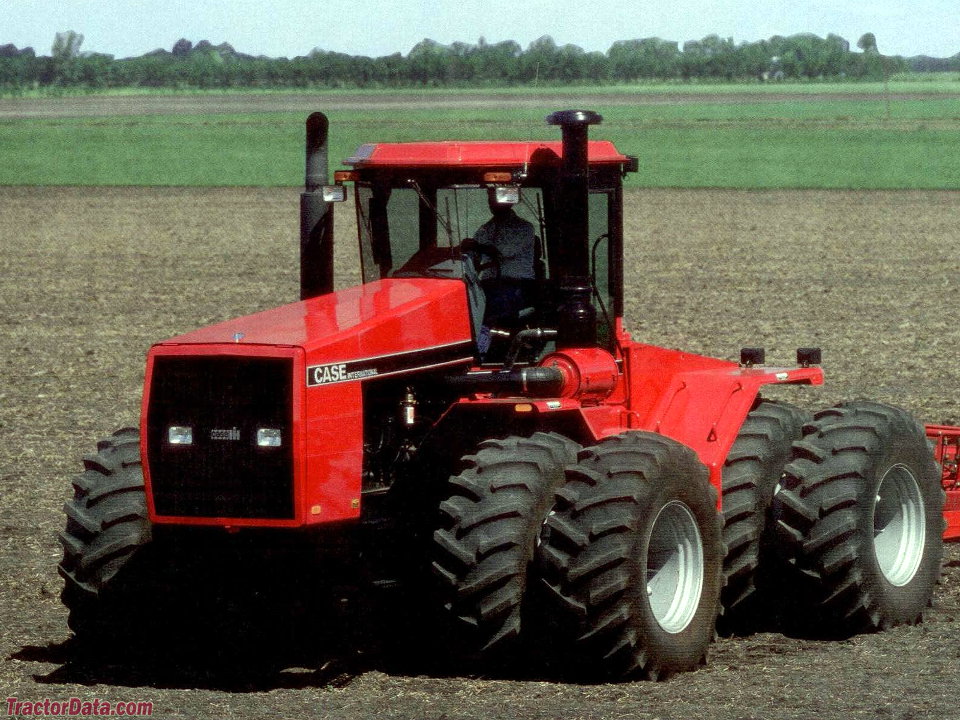

CaseIH 9170

Name: CaseIH 9170
Brand: CaseIH

CaseIH 9170 — Four-wheel Drive (4WD) tractor · 335 hp. Reference specifications; pending source verification.

The CaseIH 9170 is a tractor with a power output of approximately 335 hp, placing it at the higher end of its class. Manufactured from 1986 to 1990, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The 9170 has an operating weight of 13,154 kg, making it suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

335 hp

Weight

13154 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

335 hp

Recorded weight

13154 kg

Transmissions

12-speed full power shift

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $119,000 in 1990Reference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Steeringhydrostatic powerReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 14.0L 6-cyl dieselReference

Engine (gross)249.8 kWReference

Cummins NTA-855Reference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.0 LReference

Bore/Stroke140 x 152 mmReference

Power (gross)249.8 kWReference

Rated RPM2100Reference

Torque1533.6 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity38.8 LReference

Coolant capacity62.5 LReference

Transmission

12-speed full power shiftReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)223.7 kWReference

Hydraulic system98.4 LReference

Typeclosed centerReference

Capacity98.4 LReference

Pressure172.4 barReference

Valves3 to 4Reference

Total flow151.4 lpmReference

Rear TypeIVReference

Rear lift6350 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel946.2 LReference

Dimensions

Wheelbase358 cmReference

Weight13154 kgReference

Front tire23.1-24Reference

Rear tire23.1-24Reference

Ag front23.1-24Reference

Ag rear23.1-24Reference

Length709 cmReference

Width243 cmReference

Height (exhaust)379 cmReference

Shipping weight13154 kgReference

Max weight18144 kgReference

Ground clearance49 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Batteries3Reference

Battery volts12Reference

Speeds

With 24.5x32 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
