Tractor · 1987Unverified

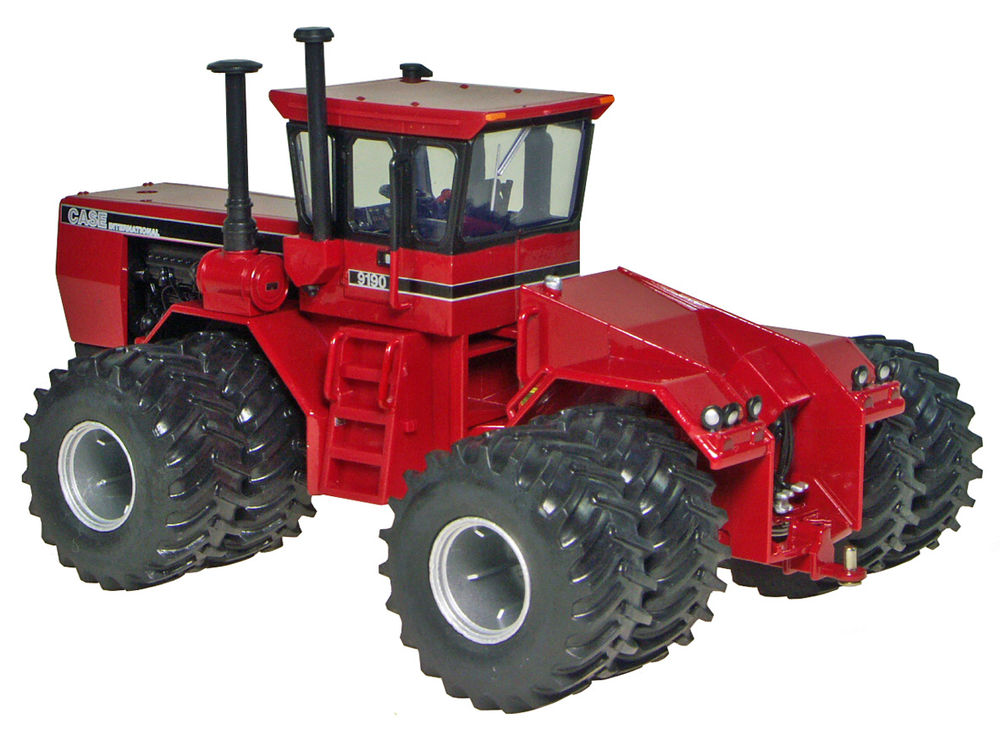

CaseIH 9190
CaseIH 9190 — Four-wheel Drive (4WD) tractor · 525 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
525 hp
Weight
18470 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $191,000 in 1987Reference
Four-wheel driveReference
Steeringhydrostatic power articulatedReference
Disc brakesReference
Cab standard with air-conditioning and AM/FM cassette radio.Reference
Engine
Cummins 18.8L 6-cyl dieselReference
Engine391.5 kWReference
Drawbar (claimed)313.2 kWReference
Cummins KTA-1150Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement18.8 LReference
Bore/Stroke159 x 159 mmReference
Power391.5 kWReference
Rated RPM2100Reference
Torque2135.7 NmReference
Torque RPM1500Reference
Oil capacity71.9 LReference
Coolant capacity106.0 LReference
Transmission
24-speed six-speed power shiftReference
ManufacturerAllisonReference
Typesix-speed power shiftReference
Gears24 forward and 4 reverseReference
Six gears (1-6) plus reverse in four ranges.Reference
Capacities
Fuel1457.2 LReference
PTO & Hydraulics
Hydraulic system98.4 LReference
Typeopen centerReference
Capacity98.4 LReference
Pressure155.1 barReference
Valves4 or 5Reference
Total flow143.8 lpmReference
Dimensions
Wheelbase381 cmReference
Weight18470 kgReference
Front tire30.5-32Reference
Rear tire30.5-32Reference
Ag front30.5-32Reference
Ag rear30.5-32Reference
Length736 cmReference
Width302 cmReference
Width484 cmReference
Height (exhaust)408 cmReference
Ground clearance59 cmReference
9190 Serial Numbers
198717900844Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Speeds
With 30.5x32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
