Tractor · 1990Unverified

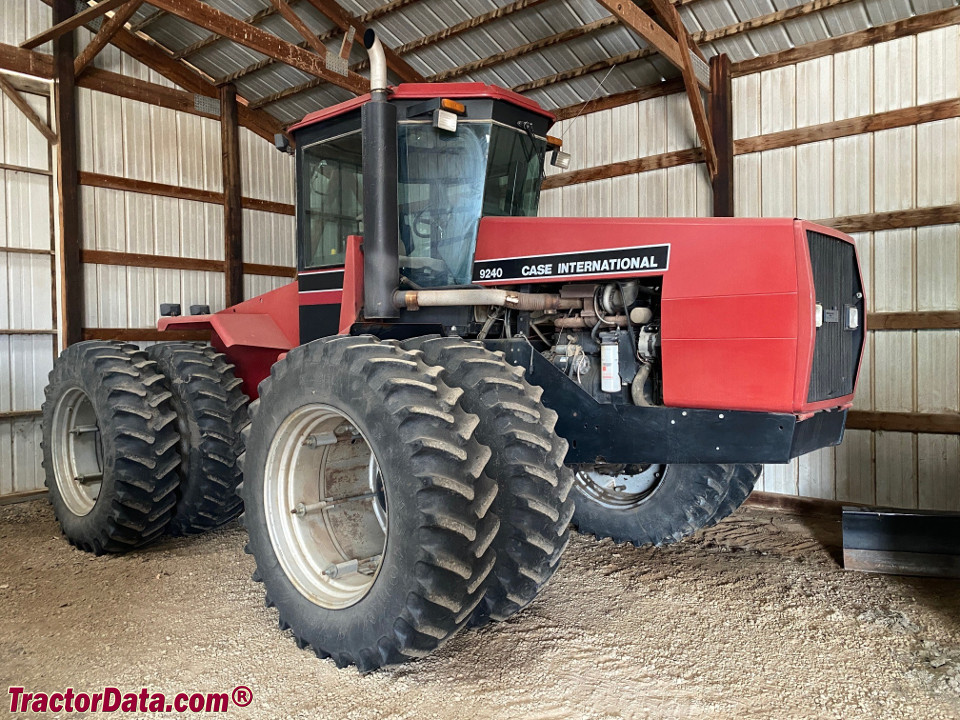

CaseIH 9240
CaseIH 9240 — Four-wheel Drive (4WD) tractor · 201 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
201 hp
Max power
161.0 kW
Weight
12797 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $105,000 in 1995Reference
The 9260 and 9240 were the last of the rigid-frame 4WD with four-wheel steering, in the style of the large J.I. Case "crab steer" tractors.Reference
Drive4x4 4WDReference
Steeringfour-wheel hydrostatic powerReference
Integrated hydraulic caliper disc brakesReference
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.Reference
Variants
9240four-wheel steerReference
9230articulatedReference
Engine
CDC 8.3L 6-cyl dieselReference
Engine175.2 kWReference
Drawbar (tested)131.2 kWReference
CDCReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power175.2 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque950.6 NmReference
Torque RPM1500Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity28.0 LReference
Max power161.0 kWReference
Power at rated engine speed149.5 kWReference
Max power131.2 kWReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
Clutchhydraulic wet discReference
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).Reference
PTO & Hydraulics
PTO (claimed)154.4 kWReference
PTO (tested)161.0 kWReference
Hydraulic system68.1 LReference
Typeclosed centerReference
Capacity68.1 LReference
Pressure172.4 barReference
Valves4Reference
Total flow106.0 lpmReference
Rear TypeIIIReference
Controldraft control optionalReference
Rear lift5783 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2098Reference
Power at rated PTO speed158.1 kWReference
Capacities
Fuel757.0 LReference
Dimensions
Wheelbase314 cmReference
Weight12797 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length635 cmReference
Width237 cmReference
Width385 cmReference
Height (exhaust)363 cmReference
Operating weight12797 kgReference
9240 Serial Numbers
Location:Under the left-side steps on front fenderReference
1990JCB0004600Reference
1991JCB0026501Reference
1992JCB0028400Reference
1993JCB0030500Reference
1994JEE0031773Reference
1995JEE0032808Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDJune 5 - 14, 1991Link: OCED Tractor Test 1650 fileReference
PTO performanceReference
Fuel use44.7 l/hourReference
Fuel use44.3 l/hourReference
Fuel use45.0 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull13039 kgReference
Gear 1 used for pull test.Reference
Speeds
With 18.4x38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
