Tractor · 1990Unverified
CaseIH 9260

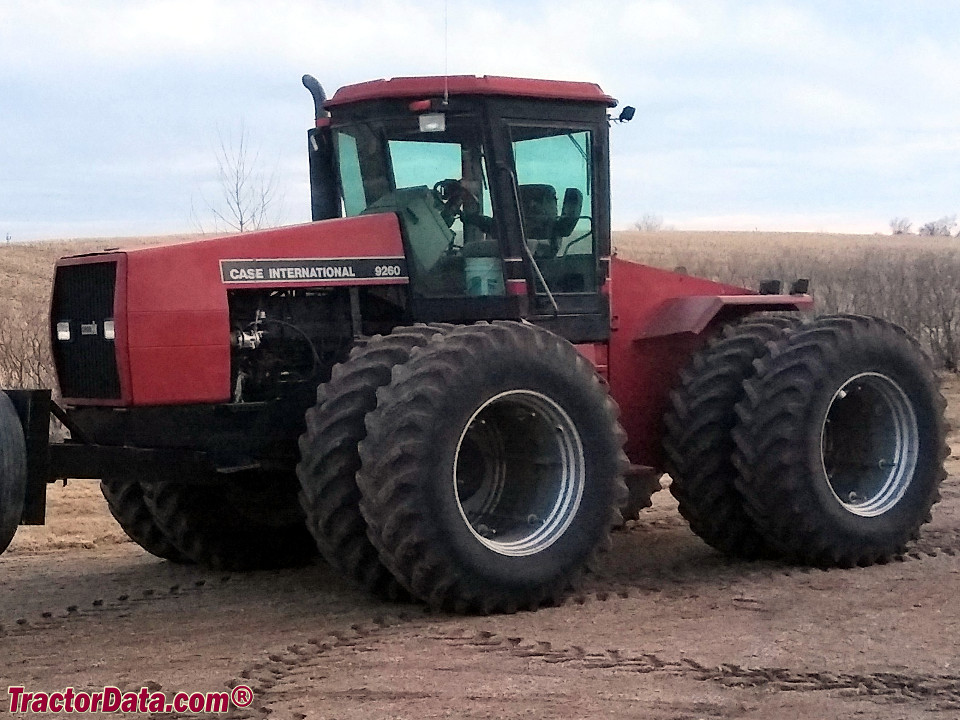

CaseIH 9260 — Four-wheel Drive (4WD) tractor · 265 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
265 hp
Weight
9979 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $127,000 in 1995Reference
The 9260 and 9240 were the last of the rigid-frame 4WD with four-wheel steering, in the style of the large J.I. Case "crab steer" tractors.Reference
Drive4x4 4WDReference
Steeringfour-wheel hydrostatic powerReference
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.Reference
Variants
9260four-wheel steerReference
9250articulatedReference
Engine
Cummins 10.0L 6-cyl dieselReference
Engine223.7 kWReference
CumminsReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.0 LReference
Bore/Stroke125 x 136 mmReference
Power223.7 kWReference
Rated RPM2100Reference
Torque1376.3 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity41.6 LReference
Coolant capacity51.1 LReference
Transmission
12-speed full power shiftReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
Clutchhydraulic wet discReference
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).Reference
PTO & Hydraulics
PTO (claimed)197.6 kWReference
Hydraulic system68.1 LReference
Typeclosed centerReference
Capacity68.1 LReference
Pressure172.4 barReference
Valves4Reference
Total flow102.2 lpmReference
Rear TypeIIIReference
Controldraft control optionalReference
Rear lift5783 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel757.0 LReference
Dimensions
Wheelbase314 cmReference
Weight9979 kgReference
Front tire20.8-38Reference
Rear tire20.8-38Reference
Ag front20.8-38Reference
Ag rear20.8-38Reference
Length635 cmReference
Width237 cmReference
Width385 cmReference
Height (exhaust)363 cmReference
9260 Serial Numbers
Location:Under the left-side steps on front fenderReference
1990JCB0004600Reference
1991JCB0026501Reference
1992JCB0028400Reference
1993JCB0030500Reference
1994JEE0031773Reference
1995JEE0032808Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 18.4x38 tires.Reference
