Tractor · 1990Unverified

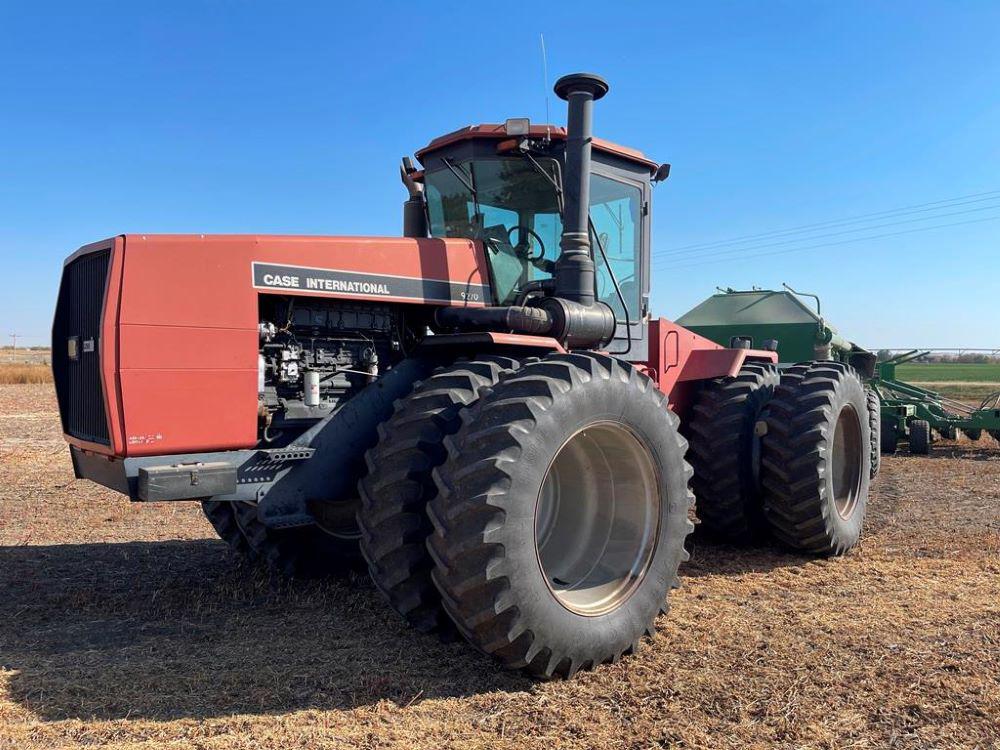

CaseIH 9270
CaseIH 9270 — Four-wheel Drive (4WD) tractor · 299 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
299 hp
Max power
236.8 kW
Weight
15442 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $119,000 in 1995Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integrated hydraulic wet disc brakesReference
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine249.8 kWReference
Drawbar (tested)197.4 kWReference
Cummins NTA-855Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power249.8 kWReference
Air cleanerdual paper elementsReference
Compression14.5:1Reference
Rated RPM2100Reference
Torque1533.6 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity41.6 LReference
Coolant capacity62.5 LReference
Max power236.8 kWReference
Power at rated engine speed223.0 kWReference
Max power197.4 kWReference
Transmission
12-speed full power shiftReference
12-speed fully synchronizedReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
Clutchhydraulic wet discReference
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).Reference
TransmissionSyncroShiftReference
Typefully synchronizedReference
Three gears (1-3) plus reverse (R) in four ranges (A-D). Synchronized shifting between gears and ranges.Reference
PTO & Hydraulics
PTO (claimed)229.7 kWReference
PTO (tested)236.8 kWReference
Hydraulic system98.4 LReference
Typeclosed centerReference
Capacity98.4 LReference
Pressure172.4 barReference
Valves4Reference
Powershift Total flow102.2 lpmReference
SyncroShift Total flow113.6 lpmReference
Rear TypeIIIReference
Rear lift6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Engine RPM1000@2098Reference
Capacities
Fuel946.2 LReference
Dimensions
Wheelbase359 cmReference
Weight15442 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Length709 cmReference
Width243 cmReference
Width416 cmReference
Height (exhaust)379 cmReference
Operating weight15442 kgReference
9270 Serial Numbers
Location:Under the left-side steps on front fenderReference
1990JCB0004600Reference
1991JCB0026501Reference
1992JCB0028400Reference
1993JCB0030500Reference
1994JEE0031773Reference
1995JEE0032808Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel SyncroShift 4WDJune 16 - 19, 1992Link: OCED Tractor Test 1659 fileReference
PTO performanceReference
Fuel use65.1 l/hourReference
Fuel use66.2 l/hourReference
Drawbar performanceReference
Fuel use65.9 l/hourReference
Gear 4 used for power test.Reference
Max pull15511 kgReference
Speeds
With 24.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
