Tractor · 1990Unverified

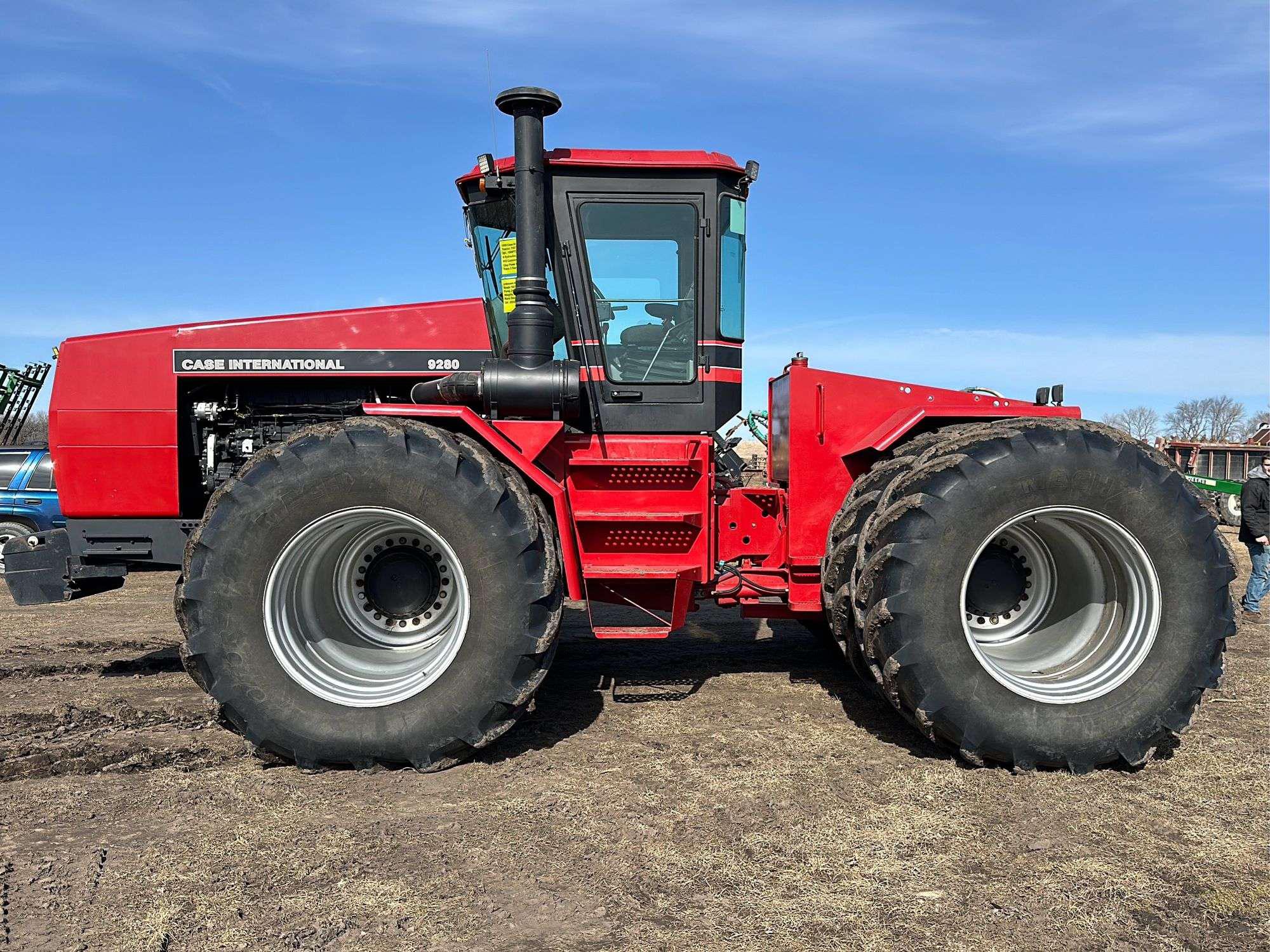

CaseIH 9280
CaseIH 9280 — Four-wheel Drive (4WD) tractor · 344 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
344 hp
Weight
13154 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $135,000 in 1995Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine279.6 kWReference
Cummins NTA-855Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power279.6 kWReference
Rated RPM2100Reference
Torque1716.7 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity41.6 LReference
Coolant capacity62.5 LReference
Transmission
12-speed full power shiftReference
12-speed fully synchronizedReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
Clutchhydraulic wet discReference
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).Reference
TransmissionSyncroShiftReference
Typefully synchronizedReference
Three gears (1-3) plus reverse (R) in four ranges (A-D). Synchronized shifting between gears and ranges.Reference
PTO & Hydraulics
PTO (claimed)256.5 kWReference
Hydraulic system98.4 LReference
Typeclosed centerReference
Capacity98.4 LReference
Pressure172.4 barReference
Valves4Reference
Powershift Total flow102.2 lpmReference
SyncroShift Total flow113.6 lpmReference
Rear TypeIIIReference
Rear lift6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel946.2 LReference
Dimensions
Wheelbase359 cmReference
Weight13154 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Length709 cmReference
Width243 cmReference
Width416 cmReference
Height (exhaust)416 cmReference
9280 Serial Numbers
Location:Under the left-side steps on front fenderReference
1990JCB0004600Reference
1991JCB0026501Reference
1992JCB0028400Reference
1993JCB0030500Reference
1994JEE0031773Reference
1995JEE0032808Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 24.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
