Tractor · 1996Unverified

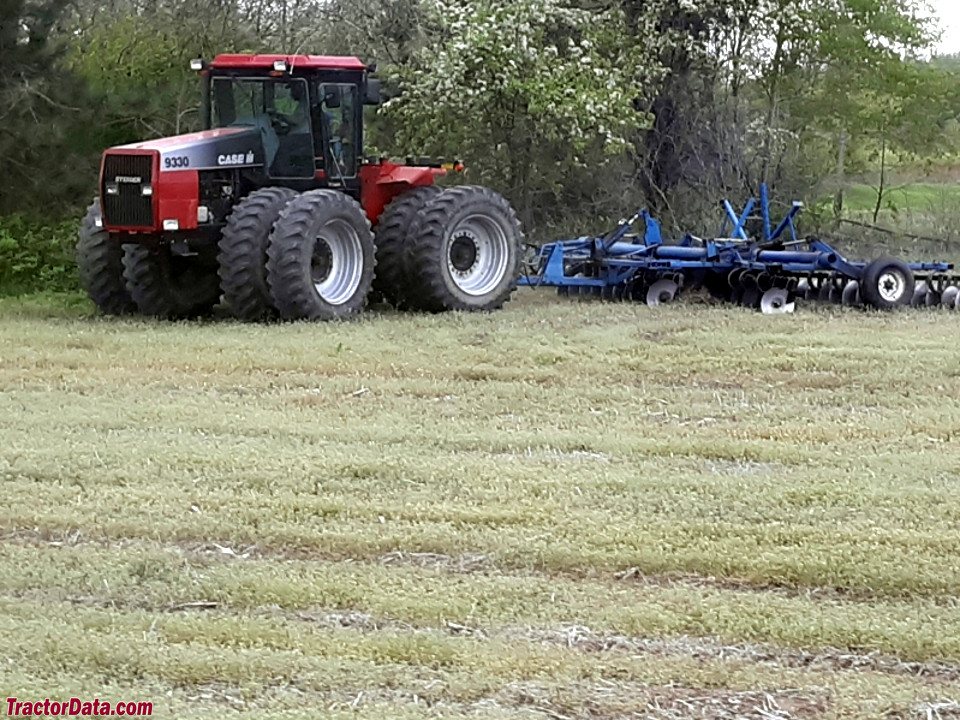

CaseIH 9330

Name: CaseIH 9330
Brand: CaseIH

CaseIH 9330 — Four-wheel Drive (4WD) tractor · 240 hp. Reference specifications; pending source verification.

The CaseIH 9330 is a tractor model with a rated output of 240 hp, categorising it as a high-powered machine in its class. It was manufactured from 1996 to 1999. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a four-wheel drive with a powershift transmission. Its listed weight ranges from 21026 to 23650 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

240 hp

Max power

171.5 kW

Weight

21026 to 23650 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

240 hp

Transmissions

12-speed full powershift

Production years

1996-1999

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Fargo, North Dakota, USAReference

Original price was $107,000 in 1999Reference

Four-wheel driveReference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CDC 8.3L 6-cyl dieselReference

Fuel tank435.3 LReference

Engine (gross)179.0 kWReference

Drawbar (tested)138.6 kWReference

CDC 6TAReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke114 x 135 mmReference

Power (gross)179.0 kWReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2200Reference

Idle RPM850-2310Reference

Starter volts12Reference

Oil capacity21.0 LReference

Oil change250 hReference

Coolant capacity27.9 LReference

Max power171.5 kWReference

Power at rated engine speed149.8 kWReference

Max power138.6 kWReference

Transmission

12-speed full powershiftReference

Typefull powershiftReference

Gears12 forward and 3 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)154.4 kWReference

PTO (tested)171.5 kWReference

Typeclosed centerReference

Pressure200.0 barReference

Valves4Reference

Pump flow106.0 lpmReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)5783 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Power at rated PTO speed161.8 kWReference

Dimensions

Wheelbase304 cmReference

Wheelbase305 cmReference

Weight21026 to 23650 poundsReference

Front tire18.4R-38Reference

Rear tire18.4R-38Reference

Ag front18.4R-38Reference

Ag rear18.4R-38Reference

Length614 cmReference

Width225 cmReference

Height (exhaust)331 cmReference

Clearance (front axle)82 cmReference

Clearance (drawbar)48 cmReference

Front axle101 by 3035 mmReference

Bar rear axle101 by 3035 mmReference

Shipping9537 kgReference

Operating10727 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps125Reference

Batteries2Reference

Battery CCA625Reference

Battery volts12Reference

Capacities

Max capacity11793 kgReference

Test results

Diesel 12-speed 4WDMay 29 - June 4, 1996Link: OCED Tractor Test 1713 fileReference

PTO performanceReference

Fuel use50.3 l/hourReference

Fuel use49.2 l/hourReference

Fuel use50.7 l/hourReference

Drawbar performanceReference

Fuel use48.8 l/hourReference

Gear 5 used for power test.Reference

Max pull11703 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
