Tractor · 1996Unverified

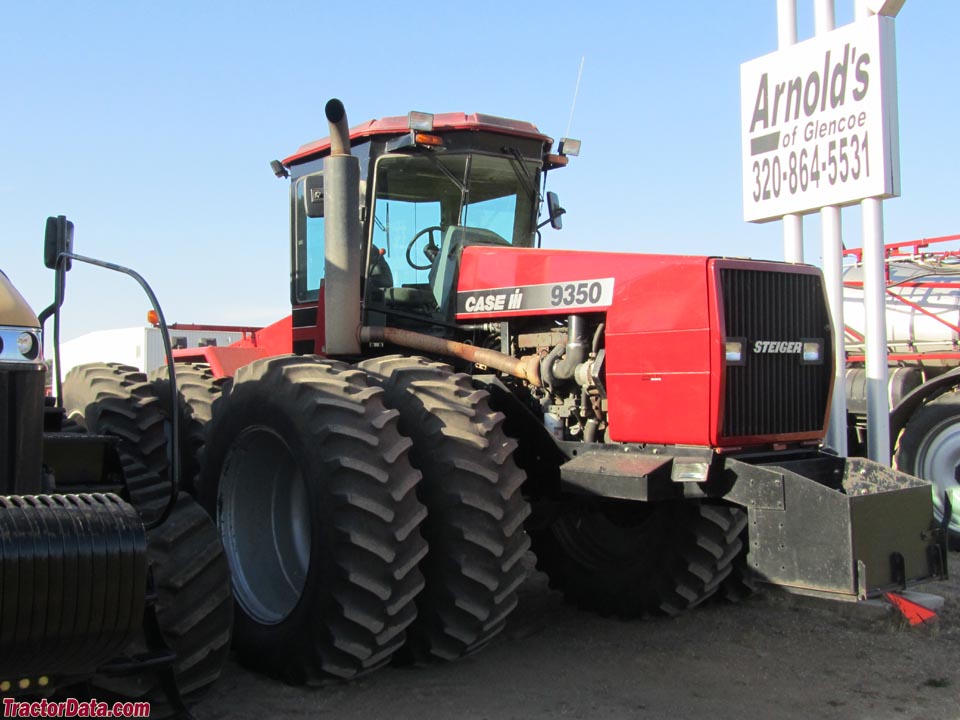

CaseIH 9350
CaseIH 9350 — Four-wheel Drive (4WD) tractor · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Max power
212.0 kW
Weight
28720 to 29600 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $125,000 in 1999Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.8L 6-cyl dieselReference
Fuel tank757.0 LReference
Engine (gross)231.2 kWReference
Drawbar (tested)183.6 kWReference
Cummins M11-A310Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power (gross)231.2 kWReference
Air cleanerdual paper elementsReference
Compression16.1:1Reference
Rated RPM2100Reference
Idle RPM850-2300Reference
Starter volts12Reference
Oil capacity36.7 LReference
Oil change250 hReference
Coolant capacity62.5 LReference
Max power212.0 kWReference
Power at rated engine speed206.5 kWReference
Max power183.6 kWReference
Transmission
12-speed full power shiftReference
12-speed synchronizedReference
24-speed two-speed power shiftReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
Clutchhydraulic wet discReference
TransmissionSynchroShiftReference
TypesynchronizedReference
Clutchwet discReference
Three synchronized gears (1-3) in four synchronized ranges (A-D).Reference
TransmissionHi-Lo SynchroShiftReference
Typetwo-speed power shiftReference
Gears24 forward and 6 reverseReference
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift.Reference
PTO & Hydraulics
PTO (claimed)198.4 kWReference
PTO (tested)212.0 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves4Reference
Pump flow102.2 lpmReference
Pump flow113.6 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase347 cmReference
Wheelbase332 cmReference
Weight28720 to 29600 poundsReference
Front tire20.8R-38Reference
Rear tire20.8R-38Reference
Ag front20.8R-38Reference
Ag rear20.8R-38Reference
Length670 cmReference
Width238 cmReference
Height (exhaust)363 cmReference
Clearance (front axle)81 cmReference
Clearance (drawbar)51 cmReference
Front axle101 by 3035 mmReference
Bar rear axle101 by 3035 mmReference
Shipping13426 kgReference
Operating13027 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps125Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Capacities
Max capacity15422 kgReference
Test results
Diesel 12-speed 4WDApril 16 - 23, 1996Link: OCED Tractor Test 1707 fileReference
PTO performanceReference
Fuel use56.8 l/hourReference
Fuel use60.9 l/hourReference
Drawbar performanceReference
Fuel use59.8 l/hourReference
Gear 5 used for power test.Reference
Max pull13416 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
