Tractor · 1997Unverified

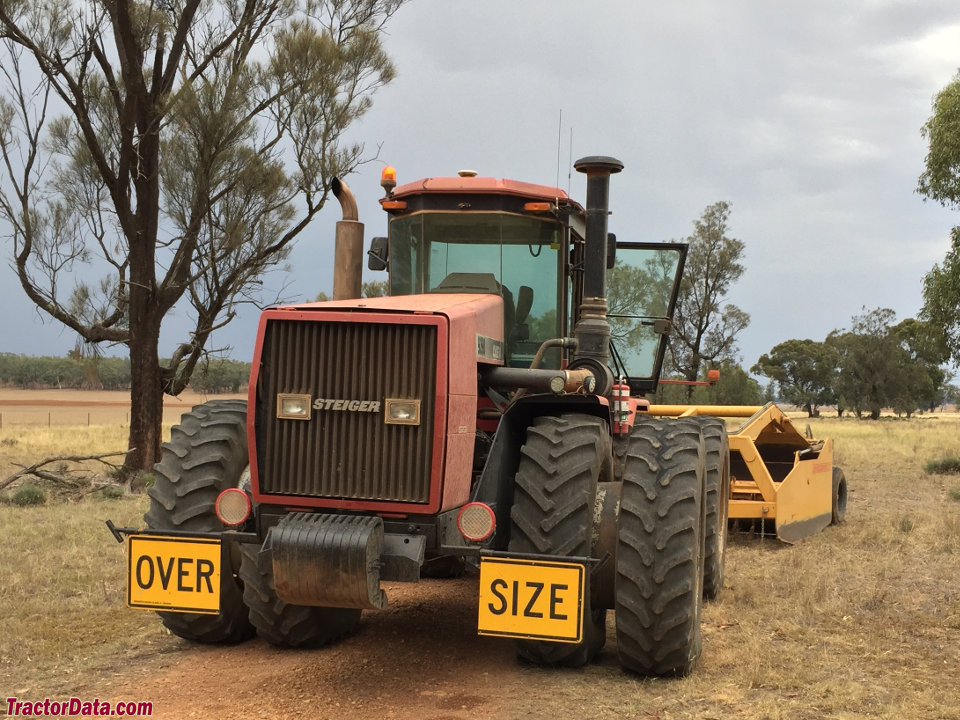

CaseIH 9390
CaseIH 9390 — Four-wheel Drive (4WD) tractor · 425 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
425 hp
Weight
14742 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Original price was $160,000 in 1999Reference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Fuel tank1022.0 LReference
Engine (gross)316.9 kWReference
Cummins N14-A400Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power (gross)316.9 kWReference
Rated RPM2100Reference
Idle RPM850-2300Reference
Starter volts12Reference
Oil capacity38.6 LReference
Oil change250 hReference
Coolant capacity62.5 LReference
Transmission
12-speed full powershiftReference
12-speedReference
24-speedReference
Typefull powershiftReference
Gears12 forward and 3 reverseReference
Clutchwet discReference
TransmissionSynchroShiftReference
Three synchronized gears (1-3) in four synchronized ranges (A-D).Reference
TransmissionHi-Lo SynchroShiftReference
Gears24 forward and 6 reverseReference
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift.Reference
PTO & Hydraulics
PTO (claimed)285.6 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Valves4Reference
Pump flow113.6 lpmReference
Total flow227.1 lpmReference
Rear TypeIVReference
Rear lift (at 24"/610mm)7711 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase365 cmReference
Weight14742 kgReference
Front tire20.8R-42Reference
Rear tire20.8R-42Reference
Ag front20.8R-42Reference
Ag rear20.8R-42Reference
Length713 cmReference
Width243 cmReference
Height (exhaust)379 cmReference
Operating weight14742 kgReference
Max weight19958 kgReference
Clearance (front axle)80 cmReference
Clearance (drawbar)48 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps125Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
