Tractor · 1985Unverified

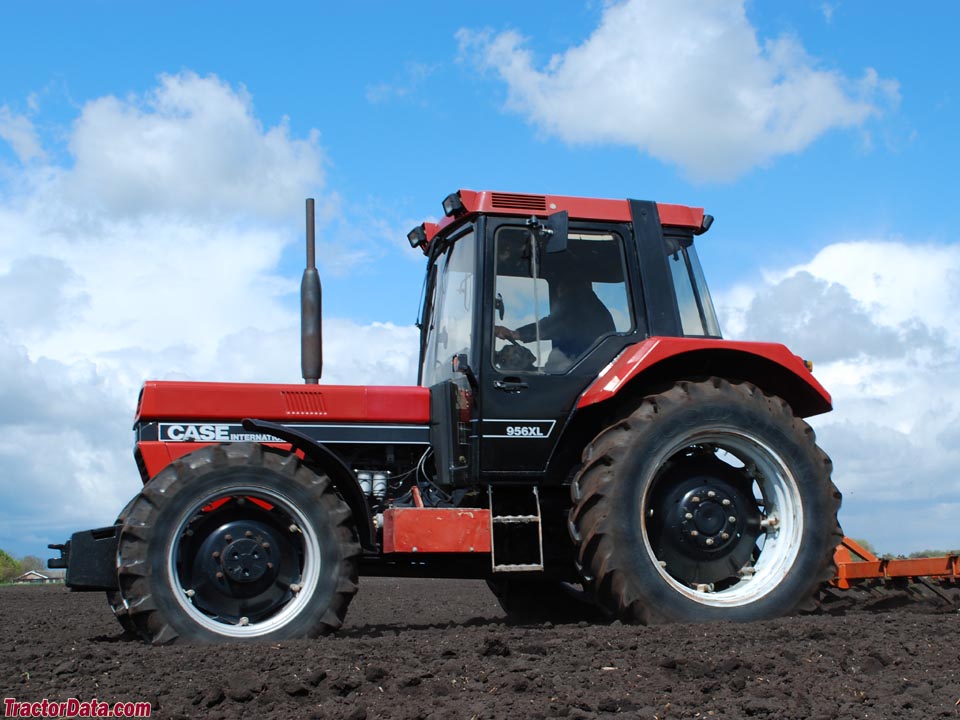

CaseIH 956 XL
CaseIH 956 XL — Utility tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
9458 to 10300 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
International Harvester 5.9L 6-cyl dieselReference
Engine70.8 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power70.8 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque355.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.0 LReference
Oil change200 hReference
Transmission
16-speedReference
TransmissionIH-Total-synchronReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Pressure175.0 barReference
Valvesup to 3Reference
Pump flow43.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4323 kgReference
Rear lift5230 kgReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase262 cmReference
4WD Wheelbase259 cmReference
Weight9458 to 10300 poundsReference
Front tire7.50-20Reference
Rear tire16.9R38 (2WD)Reference
Standard tires (ag)Front: 7.50-20. Rear: 16.9R38 (2WD)Reference
Standard tires (ag)Front: 12.4R28. Rear: 16.9R38 (4WD)Reference
2WD Length419 cmReference
4WD Length425 cmReference
Width230 cmReference
Height (cab)277 cmReference
2WD Weight4290 kgReference
4WD Weight4672 kgReference
2WD Clearance (front axle)51 cmReference
4WD Clearance (front axle)43 cmReference
2WD Front tread152 to 241 cmReference
4WD Front tread163 to 193 cmReference
Rear tread170 to 220 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 16.9R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
