Tractor · 1991Unverified

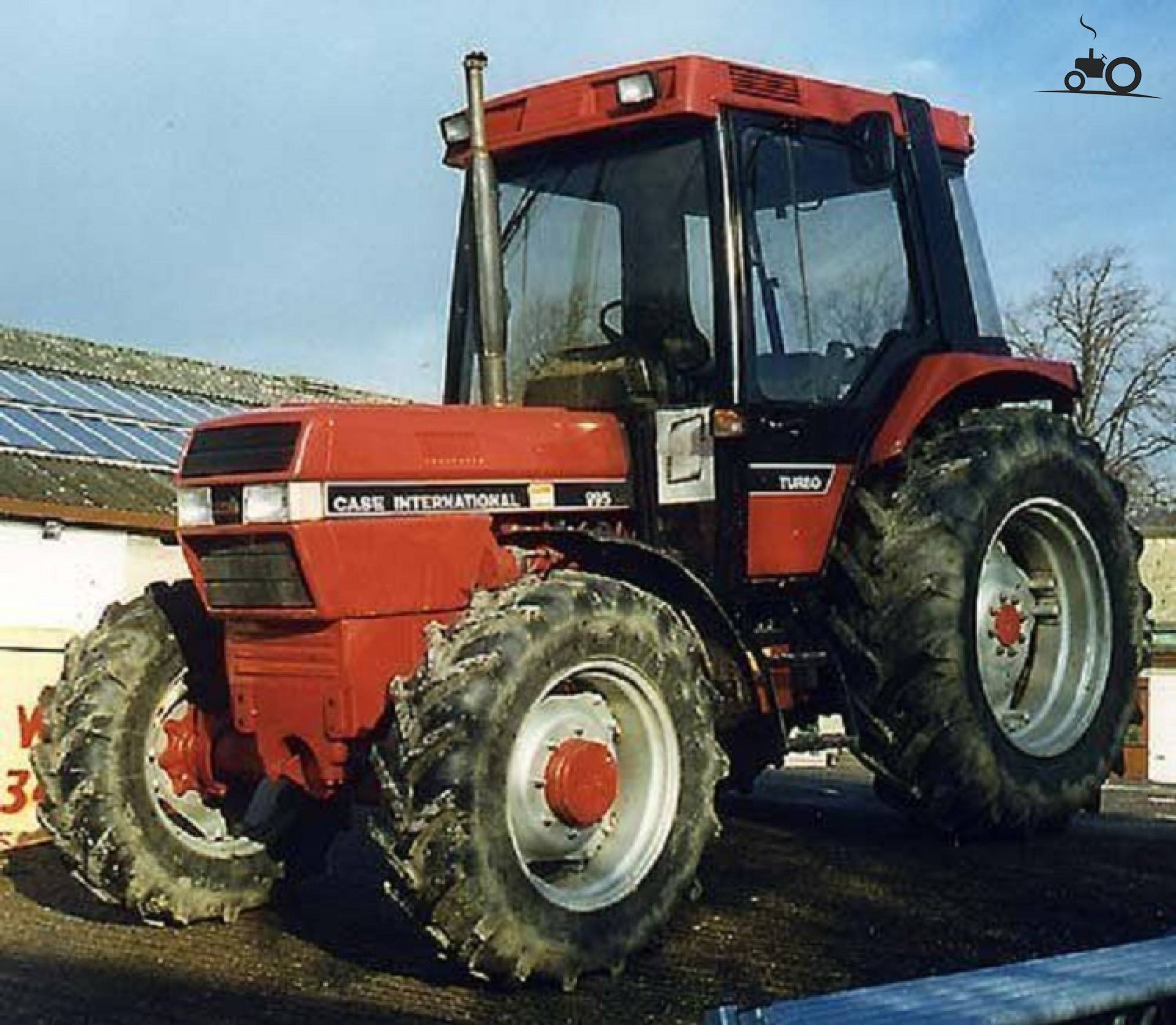

CaseIH 995
CaseIH 995 — 95 Utility Series · 104 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
104 hp
Weight
6065 to 7223 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $30,000 in 1994Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS.Reference
Engine
Case IH 4.4L 4-cyl dieselReference
Engine (gross)77.6 kWReference
Engine (net)73.8 kWReference
Case IH D268Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke100 x 140 mmReference
Power (net)73.8 kWReference
Power (gross)77.6 kWReference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity9.8 LReference
Coolant capacity13.7 LReference
Transmission
8-speed partially synchronizedReference
16-speed partial power shiftReference
8-speed synchronized shuttleReference
16-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity34.1 LReference
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.Reference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Four gears each in high and low ranges, both forward and reverse.Reference
TypecreeperReference
Four gears with high, low, and reverse ranges plus direct or creeper mode.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Valves1Reference
Pump flow59.8 lpmReference
Pump flow68.5 lpmReference
Rear TypeIIReference
Rear lift1662 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel75.7 LReference
Dimensions
Wheelbase225 cmReference
Weight6065 to 7223 poundsReference
Front tire7.50-16Reference
Rear tire14.9R24Reference
Ag front7.50-16Reference
Ag rear14.9R24Reference
Length360 cmReference
Width198 cmReference
Height (ROPS)247 cmReference
2WD Shipping weight2751 kgReference
4WD Shipping weight3276 kgReference
2WD Clearance (front axle)55 cmReference
4WD Clearance (front axle)39 cmReference
CaseIH 995 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Case IH 2250 loaderReference
Case IH 2255 loaderReference
Speeds
With 18.4x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
