Tractor · 1998Unverified

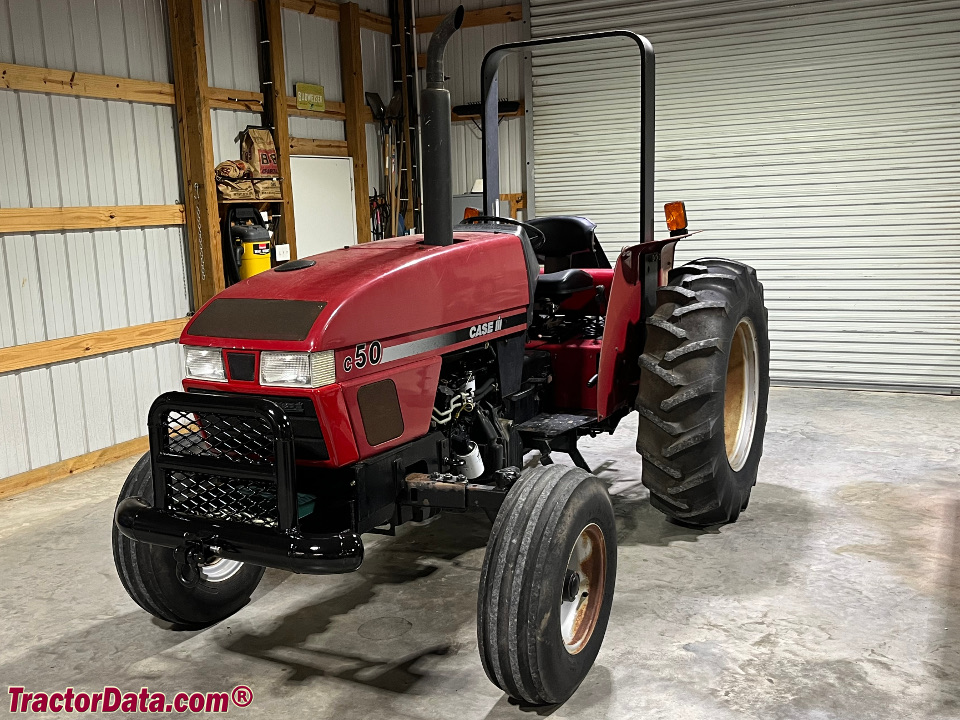

CaseIH C50
CaseIH C50 — CX Utility Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Max power
26.4 kW
Weight
5357 to 7595 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $19,700 in 1999Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS with straddle platform.Reference
Variants
CX50deluxe modelReference
C50basic modelReference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine (gross)39.5 kWReference
Engine (net)35.8 kWReference
Drawbar (tested)26.4 kWReference
Perkins 903.27Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power (net)35.8 kWReference
Power (gross)39.5 kWReference
Fuel systemmechanical direct injection with 5-hole injectorsReference
Air cleanerdual paper elementsReference
Compression17.25:1Reference
Rated RPM2250Reference
Torque189.8 NmReference
Torque RPM1200Reference
Starter volts12Reference
Oil capacity7.6 LReference
Oil change250 hReference
Coolant capacity11.9 LReference
Power at rated engine speed31.7 kWReference
Max power26.4 kWReference
Transmission
8-speedReference
16-speed partial power shiftReference
16-speed creeperReference
Gears8 forward and 4 reverseReference
Clutch12-inch dry discReference
2WD Oil capacity34.1 LReference
4WD Oil capacity36.5 LReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Gears8 forward and reverseReference
TypecreeperReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)31.7 kWReference
2WD Hydraulic system34.1 LReference
4WD Hydraulic system36.7 LReference
Typeopen centerReference
2WD Capacity34.1 LReference
4WD Capacity36.7 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Pump flow48.1 lpmReference
Total flow59.4 lpmReference
Rear TypeII/IReference
Controlmechanical draft sensingReference
Rear lift1662 kgReference
Rear lift2311 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed30.5 kWReference
Capacities
Fuel75.7 LReference
Max capacity4604 kgReference
Dimensions
2WD Wheelbase205 cmReference
4WD Wheelbase211 cmReference
Weight5357 to 7595 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
2WD Shipping2429 kgReference
4WD Shipping2765 kgReference
Operating3445 kgReference
CaseIH C50 attachments
front-end loaderReference
C50 Serial Numbers
Location:Near the tractor steering column on right side.Reference
1998JJE1000056Reference
1999JJE1008492Reference
2000JJE1013490Reference
2001JJE1017672Reference
2002JJE1019985Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA650Reference
Battery CCA810 (optional)Reference
Battery volts12Reference
Attachment overview
CaseIH 2200 loaderReference
CaseIH 2250 loaderReference
Test results
Diesel 16-speed 4WDApril 1999 - June 1999, Link: OCED Tractor Test 1893 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Gear 1-High-TA used for power test.Reference
Max pull3624 kgReference
Gear 1-Low-Direct used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
