Tractor · 1998Unverified

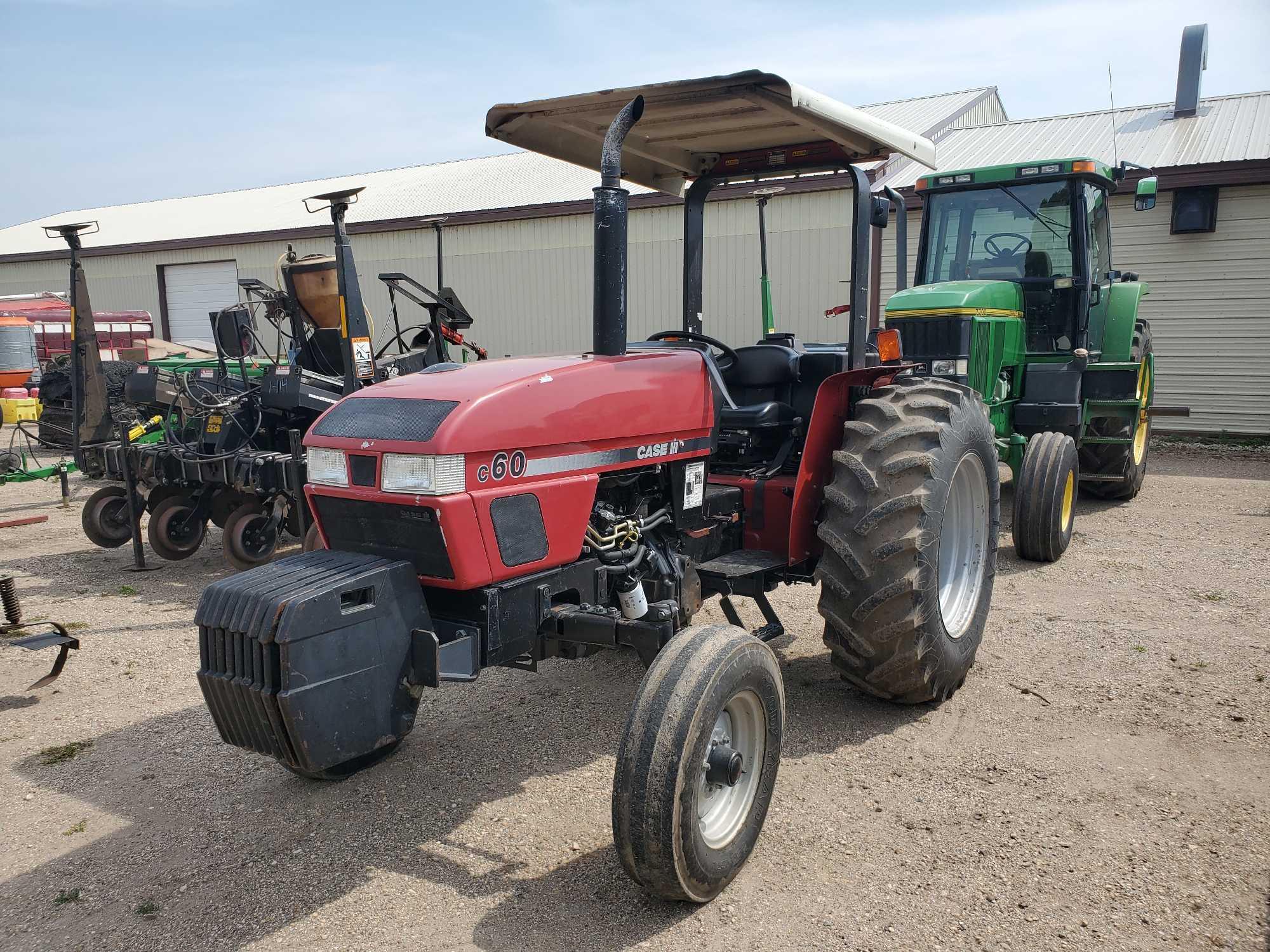

CaseIH C60
CaseIH C60 — CX Utility Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Max power
42.1 kW
Weight
5357 to 7605 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price$22,400 (1999)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockmechanicalReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Two-post ROPS with straddle platform.Reference
Variants
CX60deluxe modelReference
C60basic modelReference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine (gross)47.7 kWReference
Engine (net)44.7 kWReference
Drawbar (tested)36.1 kWReference
Perkins 903.27TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power (net)44.7 kWReference
Power (gross)47.7 kWReference
Fuel systemmechanical direct injection with 5-hole injectorsReference
Air cleanerdual paper elementsReference
Compression17.25:1Reference
Rated RPM2250Reference
Torque244.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity7.6 LReference
Oil change250 hReference
Coolant capacity11.9 LReference
Max power42.1 kWReference
Power at rated engine speed41.9 kWReference
Max power36.1 kWReference
Transmission
8-speedReference
16-speed partial power shiftReference
16-speed creeperReference
Gears8 forward and 4 reverseReference
Clutch12-inch dry discReference
Oil capacity34.1 LReference
Oil capacity36.5 LReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Gears8 forward and reverseReference
TypecreeperReference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
PTO (tested)42.1 kWReference
Hydraulic system34.1 LReference
Hydraulic system36.7 LReference
Typeopen centerReference
Capacity34.1 LReference
Capacity36.7 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Pump flow48.1 lpmReference
Total flow59.4 lpmReference
Rear TypeII/IReference
ControlmechanicalReference
Rear lift1662 kgReference
Rear lift2311 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional dual shaft)Reference
Power at rated PTO speed41.0 kWReference
Capacities
Fuel75.7 LReference
Max capacity4604 kgReference
Dimensions
Wheelbase205 cmReference
Wheelbase211 cmReference
Weight5357 to 7605 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Shipping2429 kgReference
Shipping2765 kgReference
Operating3449 kgReference
C60 Serial Numbers
Location:Near the tractor steering column on right side.Reference
1998JJE1000056Reference
1999JJE1008492Reference
2000JJE1013490Reference
2001JJE1017672Reference
2002JJE1019985Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA650Reference
Battery CCA810 (optional)Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDApril 1999 - August 1999, Link: OCED Tractor Test 1894 fileReference
PTO performanceReference
Fuel use12.9 l/hourReference
Fuel use12.1 l/hourReference
Drawbar performanceReference
Gear 1_high-TA used for power test.Reference
Max pull4154 kgReference
Gear 1-Low-Direct used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
