Tractor · 1998Unverified

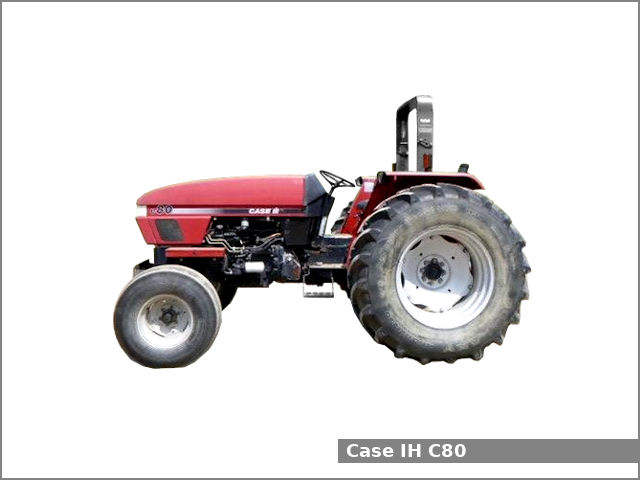

CaseIH C80

Name: CaseIH C80
Brand: CaseIH

CaseIH C80 — CX Utility Series · 84 hp. Reference specifications; pending source verification.

The CaseIH C80 is a tractor model with a rated power of 84 hp, a mid-range figure for its class. Manufactured from 1998 to 2002, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. The operating weight of the CaseIH C80 ranges from 5941 to 8135 pounds. It is designed for use in operations covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

84 hp

Max power

44.2 kW

Weight

5941 to 8135 pounds

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

84 hp

Transmissions

8-speed

Production years

1998-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Original price$26,000 (1999)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockmechanicalReference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Two-post ROPS with straddle platform.Reference

Variants

CX80deluxe modelReference

C80basic modelReference

Engine

Perkins 4.0L 4-cyl dieselReference

Engine (gross)62.6 kWReference

Engine (net)58.2 kWReference

Drawbar (tested)44.2 kWReference

Perkins 1004.40TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power (net)58.2 kWReference

Power (gross)62.6 kWReference

Fuel systemmechanical direct injection with 5-hole injectorsReference

Air cleanerdual paper elementsReference

Compression17.25:1Reference

Rated RPM2200Reference

Torque343.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity8.8 LReference

Oil change250 hReference

Coolant capacity16.0 LReference

Power at rated engine speed53.2 kWReference

Max power44.2 kWReference

Transmission

8-speedReference

16-speed partial power shiftReference

16-speed creeperReference

Gears8 forward and 4 reverseReference

Clutch12-inch dry discReference

Oil capacity34.1 LReference

Oil capacity36.5 LReference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Gears8 forward and reverseReference

TypecreeperReference

PTO & Hydraulics

PTO (claimed)50.0 kWReference

PTO (tested)53.2 kWReference

Hydraulic system34.1 LReference

Hydraulic system36.7 LReference

Typeopen centerReference

Capacity34.1 LReference

Capacity36.7 LReference

Pressure172.4 barReference

Valves0 to 3Reference

Pump flow48.1 lpmReference

Pump flow56.8 lpmReference

Total flow59.4 lpmReference

Total flow68.1 lpmReference

Rear TypeII/IReference

ControlmechanicalReference

Rear lift1662 kgReference

Rear lift2311 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional dual shaft)Reference

Power at rated PTO speed54.4 kWReference

Capacities

Fuel75.7 LReference

Max capacity4604 kgReference

Dimensions

Wheelbase214 cmReference

Wheelbase223 cmReference

Weight5941 to 8135 poundsReference

Front tire7.50-16Reference

Rear tire16.9-30Reference

Ag front7.50-16Reference

Ag rear16.9-30Reference

Shipping2694 kgReference

Shipping3020 kgReference

Operating3690 kgReference

C80 Serial Numbers

Location:Near the tractor steering column on right side.Reference

1998JJE1000056Reference

1999JJE1008492Reference

2000JJE1013490Reference

2001JJE1017672Reference

2002JJE1019985Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Battery CCA650Reference

Battery CCA810 (optional)Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDOctober 1998 - 1998, Link: OCED Tractor Test 1896 fileReference

PTO performanceReference

Fuel use17.8 l/hourReference

Fuel use17.0 l/hourReference

Drawbar performanceReference

Gear 1-High-TA used for power test.Reference

Max pull4322 kgReference

Gear 1-Low-Direct used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
