Tractor · 1997Unverified

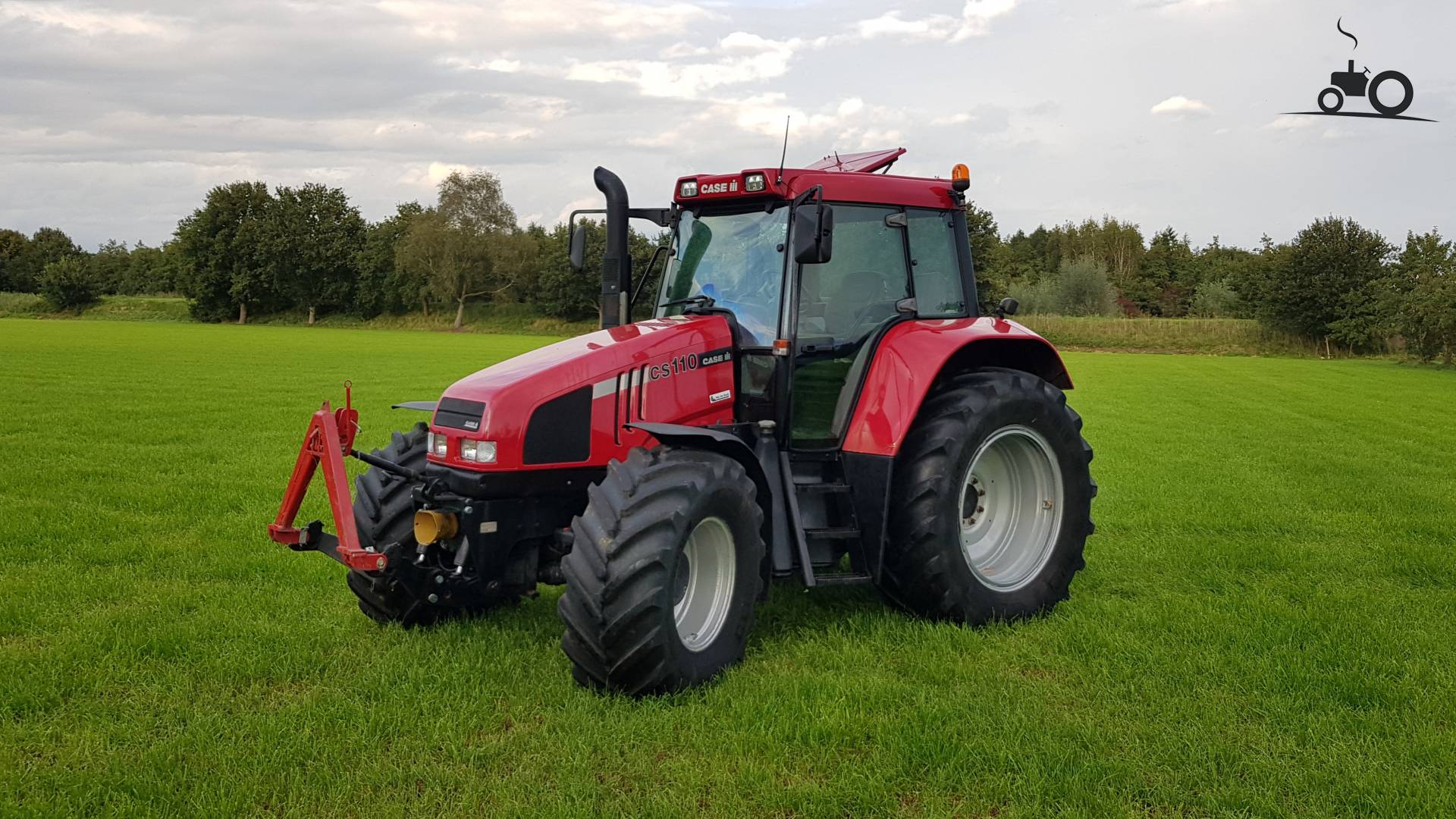

CaseIH CS 110
CaseIH CS 110 — CS Series · 104 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
104 hp
Weight
5015 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Saint Valentin, AustriaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9105similar Steyr modelReference
Engine
Sisu 4.4L 4-cyl dieselReference
Fuel tank219.9 LReference
Fuel tank300.2 LReference
Engine (net)77.3 kWReference
Sisu 420.85Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Rated Power (net)77.3 kWReference
Maximum Power (net)80.9 kWReference
Rated RPM2300Reference
Operating RPM1850-2300Reference
Torque427.0 NmReference
Torque RPM1500Reference
Oil capacity14.0 LReference
Oil change250 hReference
Transmission
24-speed four-speed power shiftReference
40-speed creeperReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Four power shift gears in six synchronized ranges with power shuttle.Reference
TypecreeperReference
Gears40 forward and reverseReference
Optional creeper adds an additional four ranges to the standard transmission.Reference
PTO & Hydraulics
PTO (claimed)69.1 kWReference
Pressure185.0 barReference
Pump flow79.9 lpmReference
Pump flow115.1 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Engine RPM540E@1680Reference
Engine RPM1000@2200Reference
Engine RPM1000E@1600Reference
Front PTO Type1000Reference
Dimensions
Wheelbase252 cmReference
Weight5015 kgReference
Front tire540/65R24Reference
Rear tire600/65R38Reference
Standard tires (ag)Front: 540/65R24. Rear: 600/65R38Reference
Length454 cmReference
Width239 cmReference
Height290 cmReference
Max weight8500 kgReference
Ground clearance52 cmReference
Speeds
With 18.4R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
