Tractor · 1997Unverified

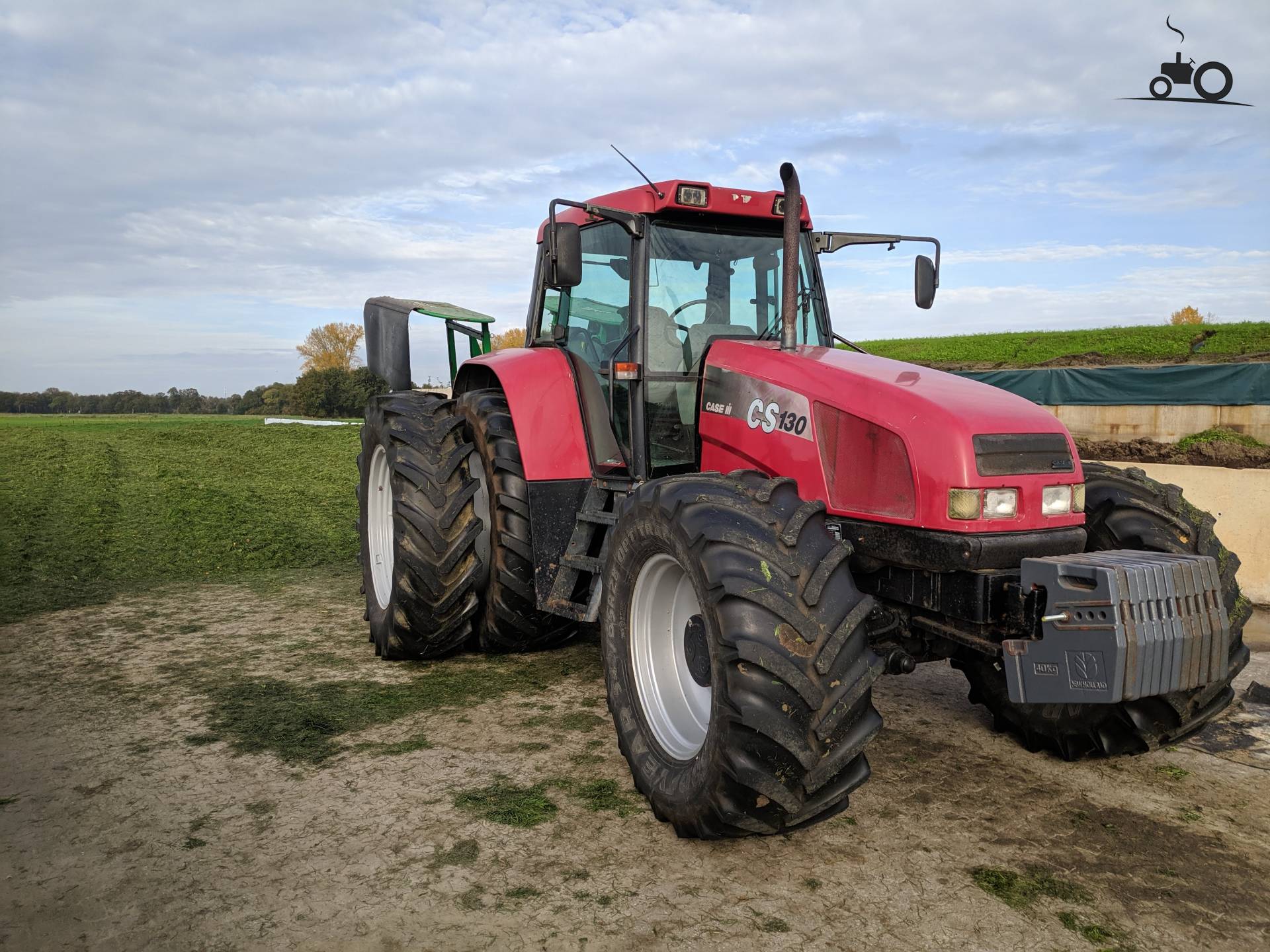

CaseIH CS 130
CaseIH CS 130 — CS Series · 123 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
123 hp
Weight
5264 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Saint Valentin, AustriaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9125similar Steyr modelReference
Engine
Sisu 6.6L 6-cyl dieselReference
Fuel tank219.9 LReference
Fuel tank300.2 LReference
Engine (net)91.9 kWReference
Sisu 620.92Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Rated Power (net)91.9 kWReference
Maximum Power (net)95.6 kWReference
Rated RPM2300Reference
Operating RPM1700-2300Reference
Torque506.1 NmReference
Torque RPM1500Reference
Oil capacity20.0 LReference
Oil change250 hReference
Transmission
24-speed four-speed power shiftReference
40-speed creeperReference
Typefour-speed power shiftReference
Gears24 forward and reverseReference
Four power shift gears in six synchronized ranges with power shuttle.Reference
TypecreeperReference
Gears40 forward and reverseReference
Optional creeper adds an additional four ranges to the standard transmission.Reference
PTO & Hydraulics
PTO (claimed)82.4 kWReference
Pressure185.0 barReference
Pump flow79.9 lpmReference
Pump flow115.1 lpmReference
Rear TypeIIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2200Reference
Engine RPM540E@1680Reference
Engine RPM1000@2200Reference
Engine RPM1000E@1600Reference
Front PTO Type1000Reference
Dimensions
Wheelbase280 cmReference
Weight5264 kgReference
Front tire480/70R28Reference
Rear tire580/70R38Reference
Standard tires (ag)Front: 480/70R28. Rear: 580/70R38Reference
Length483 cmReference
Width245 cmReference
Height294 cmReference
Max weight9000 kgReference
Ground clearance54 cmReference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
