Tractor · 1996Unverified

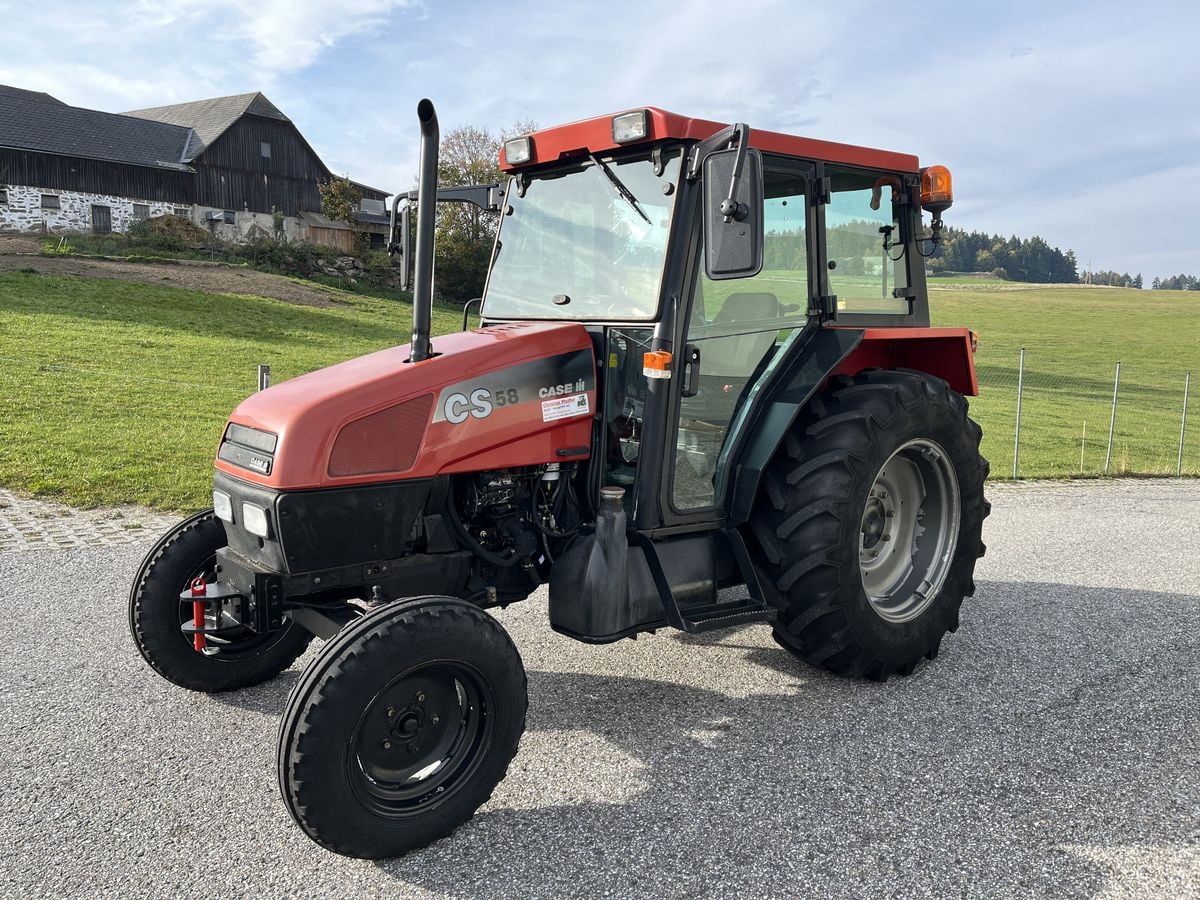

CaseIH CS 58

Name: CaseIH CS 58
Brand: CaseIH

CaseIH CS 58 — CS Series · 58 hp. Reference specifications; pending source verification.

The CaseIH CS 58 is a compact tractor model, rated at 58 hp, which places it among the more compact options in its class. Manufactured from 1996 to 2001, this model features a 3-cylinder turbocharged diesel engine, driving through a four-wheel drive system with a 16-speed gearbox. The listed weight of the CS 58 is 2750 kg, and it is suitable for jobs covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

58 hp

Weight

2750 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

58 hp

Recorded weight

2750 kg

Transmissions

16-speed

Production years

1996-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Two- or four-wheel driveReference

Power steeringReference

Disc brakesReference

Engine

Perkins 2.7L 3-cyl dieselReference

Fuel tank73.1 LReference

Engine43.3 kWReference

Perkins 903.27TReference

turbocharged dieselReference

3-cylinderReference

Displacement2.7 LReference

Bore/Stroke95 x 127 mmReference

Power43.3 kWReference

Rated RPM2250Reference

Torque222.4 NmReference

Torque RPM1400Reference

Transmission

16-speedReference

TransmissionsynchroReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Total flow37.9 lpmReference

Rear lift2290 kgReference

Rear PTO Type430/540/ 750/1000Reference

Dimensions

Wheelbase212 cmReference

Weight2750 kgReference

Front tire7.50-18Reference

Rear tire14.9R30Reference

Ag front7.50-18Reference

Ag rear14.9R30Reference

Ag front340/75R20Reference

Length352 cmReference

Height237 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
