Tractor · 2001Unverified

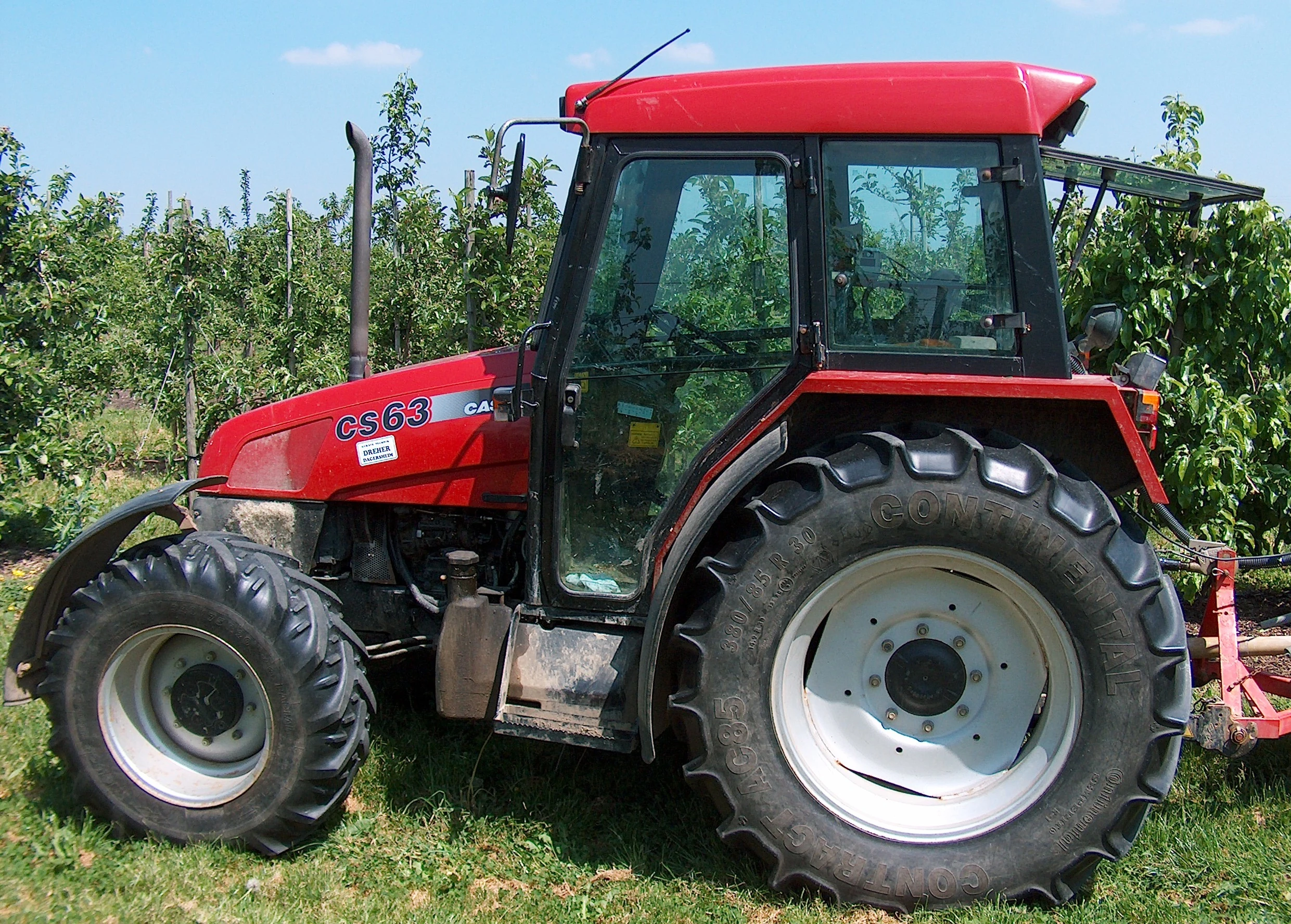

CaseIH CS 63

Name: CaseIH CS 63
Brand: CaseIH

CaseIH CS 63 — CS Series · 58 hp. Reference specifications; pending source verification.

The CaseIH CS 63 is a compact tractor model with a power rating of 58 hp. Manufactured from 2001 to 2004, it features a 3-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a 16-speed gearbox. The listed weight of the tractor is between 5490 and 5975 pounds. It is suitable for working on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

58 hp

Weight

5490 to 5975 pounds

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

58 hp

Transmissions

16-speed synchronized

Production years

2001-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Disc brakesReference

Cab standard.Reference

Variants

CS632WDReference

CS63a4WDReference

Engine

Perkins 2.7L 3-cyl dieselReference

Fuel tank73.1 LReference

Engine47.0 kWReference

Perkins 903.27TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke95 x 127 mmReference

Power47.0 kWReference

Rated RPM2250Reference

Torque238.7 NmReference

Torque RPM1400Reference

Starter volts12Reference

Transmission

16-speed synchronizedReference

TypesynchronizedReference

Gears16 forward and 8 reverseReference

Clutchdry discReference

Four gears (1-4) in two ranges, plus reverse, with additional high/low range.Reference

PTO & Hydraulics

PTO (claimed)43.4 kWReference

Total flow34.1 lpmReference

Rear TypeIIReference

Rear lift2500 kgReference

Rear PTOindependentReference

Rear PTO Type430/540/1000Reference

Engine RPM430@2130Reference

Engine RPM540@2045Reference

Engine RPM540E@1506Reference

Engine RPM1000@2130Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

2WD Wheelbase216 cmReference

4WD Wheelbase212 cmReference

Weight5490 to 5975 poundsReference

Front tire7.50-18Reference

2WD Rear tire14.9R28Reference

2WD Standard tires (ag)Front: 7.50-18. Rear: 14.9R28Reference

4WD Standard tires (ag)Front: 10.5-20. Rear: 14.9-28Reference

2WD Length353 cmReference

4WD Length357 cmReference

Width189 cmReference

Height (cab)235 cmReference

2WD Ground clearance40 cmReference

2WD Ground clearance36 cmReference

2WD Front tread132 cmReference

4WD Front tread148 cmReference

Rear tread149 cmReference

2WD2490 kgReference

4WD2710 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

2WD Max capacity3999 kgReference

4WD Max capacity4199 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
