Tractor · 1994Unverified

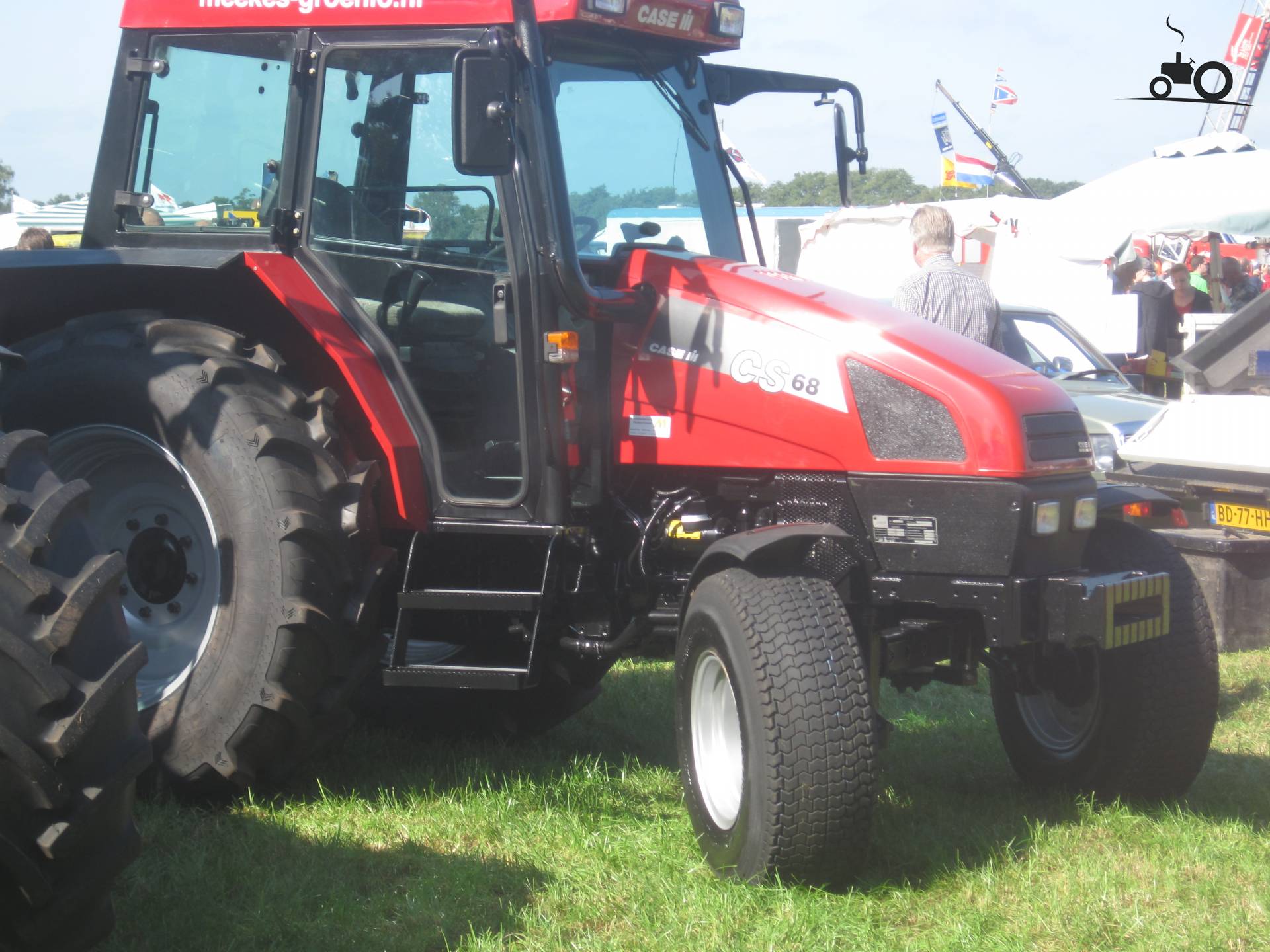

CaseIH CS 68
CaseIH CS 68 — CS Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
6217 to 6834 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Disc brakesReference
Cab standard.Reference
Variants
CS682WDReference
Engine
MWM 3.1L 3-cyl dieselReference
Sisu 3.3L 3-cyl dieselReference
Fuel tank83.3 LReference
Engine50.7 kWReference
MWM 301.89Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power50.7 kWReference
Rated RPM2250Reference
Torque264.4 NmReference
Torque RPM1500Reference
Starter volts12Reference
Sisu 320.8Reference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Rated RPM2200Reference
Torque269.8 NmReference
Torque RPM1400Reference
Transmission
16-speed synchronizedReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges, plus reverse, with additional high/low range.Reference
PTO & Hydraulics
PTO (claimed)48.0 kWReference
Total flow43.1 lpmReference
Rear TypeIIReference
Rear lift2610 kgReference
Rear PTOindependentReference
Rear PTO Type430/540/1000Reference
Engine RPM430@2130Reference
Engine RPM540@2045Reference
Engine RPM540E@1506Reference
Engine RPM1000@2130Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase223 cmReference
Weight6217 to 6834 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6R36Reference
2WD Standard tires (ag)Front: 7.50-18 . Rear: 13.6R36Reference
4WD Standard tires (ag)Front: 11.2R24. Rear: 13.6R36Reference
2WD Length370 cmReference
4WD Length378 cmReference
Width189 cmReference
Height (cab)251 cmReference
2WD Ground clearance37 cmReference
4WD Ground clearance40 cmReference
2WD Front tread132 cmReference
4WD Front tread152 cmReference
Rear tread151 cmReference
2WD2820 kgReference
4WD3099 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Capacities
Max capacity4199 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
