Tractor · 1994Unverified

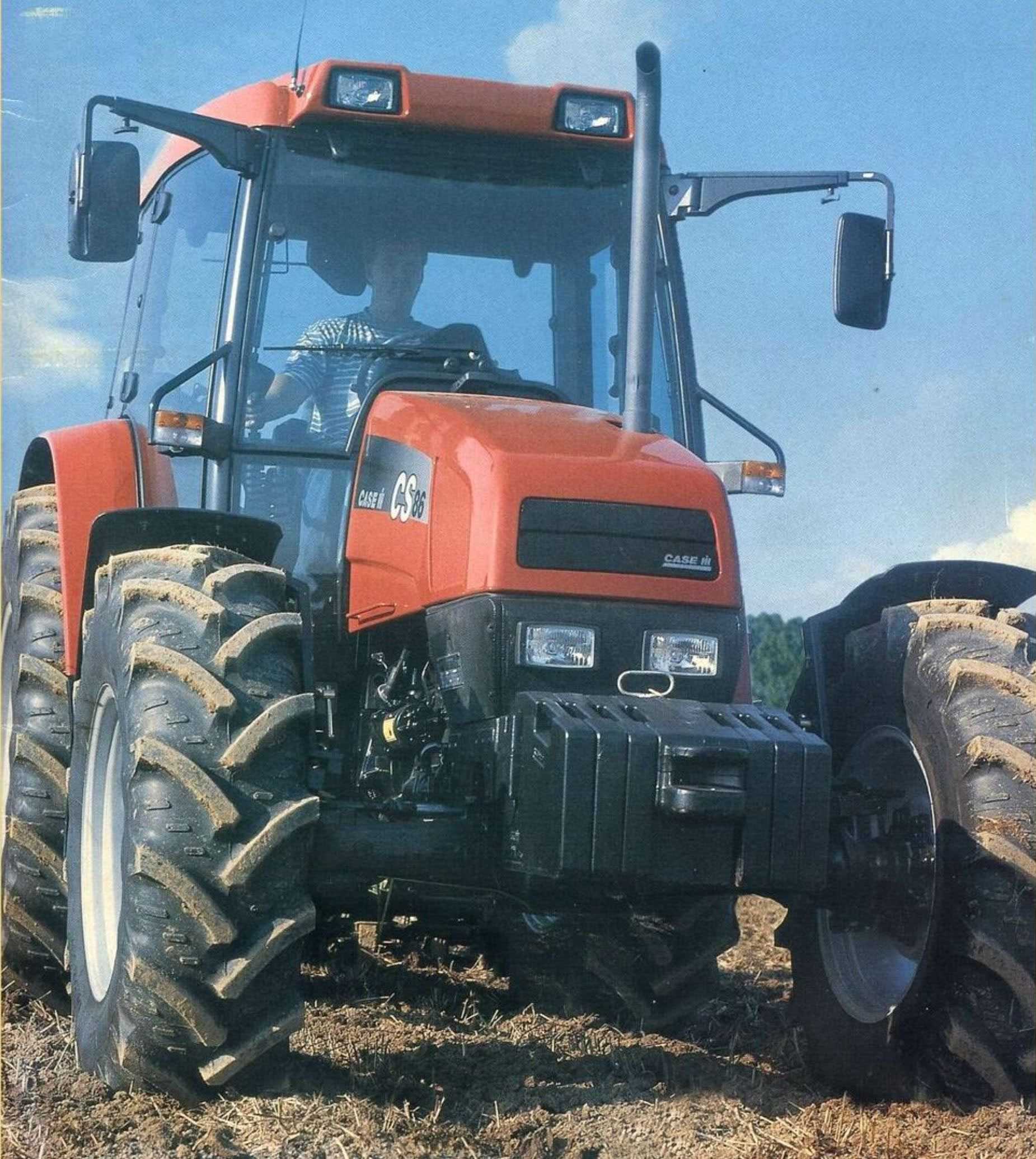

CaseIH CS 78

Name: CaseIH CS 78
Brand: CaseIH

CaseIH CS 78 — CS Series · 71 hp. Reference specifications; pending source verification.

The CaseIH CS 78 is a tractor model with a rated output of 71 hp, positioning it in the middle of its class for power. It was manufactured from 1994 to 2003. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, driving through a four-wheel drive system with a powershift transmission. Its listed operating weight is 3949 kg, suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Weight

3949 kg

Catalogue coverage

Variants represented

Richest spec table

68 rows

Recorded power

71 hp

Recorded weight

3949 kg

Transmissions

16-speed synchronized

Production years

1994-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Two- or four-wheel driveReference

Power steeringReference

Disc brakesReference

Cab standard.Reference

Engine

MWM 4.2L 4-cyl dieselReference

Sisu 4.4L 4-cyl dieselReference

Fuel tank99.9 LReference

Fuel tank149.9 LReference

Engine58.2 kWReference

MWM WD 401.81Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

Power58.2 kWReference

Rated RPM2300Reference

Torque298.3 NmReference

Torque RPM1500Reference

Starter volts12Reference

Sisu 420.81Reference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Torque305.1 NmReference

Torque RPM1300Reference

Transmission

16-speed synchronizedReference

16-speed two-speed power shiftReference

32-speed creeperReference

TypesynchronizedReference

Gears16 forward and 8 reverseReference

Clutchdry discReference

Typetwo-speed power shiftReference

Gears16 forward and reverseReference

Four gears in two ranges with two-speed push-button power shift and shuttle.Reference

TypecreeperReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)52.9 kWReference

Total flow50.0 lpmReference

Total flow84.0 lpmReference

Rear TypeIIReference

Rear lift4900 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM430@2130Reference

Engine RPM540@2046Reference

Engine RPM540E@1506Reference

Engine RPM1000@2130Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase247 cmReference

Weight3949 kgReference

Front tire9.00-16Reference

Rear tire16.9R34Reference

Ag front9.00-16Reference

Ag rear16.9R34Reference

Ag front13.6R24Reference

Length421 cmReference

Width217 cmReference

Height (cab)268 cmReference

Max weight6500 kgReference

Ground clearance42 cmReference

Front tread168 cmReference

Rear tread169 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
