Tractor · 2000Unverified

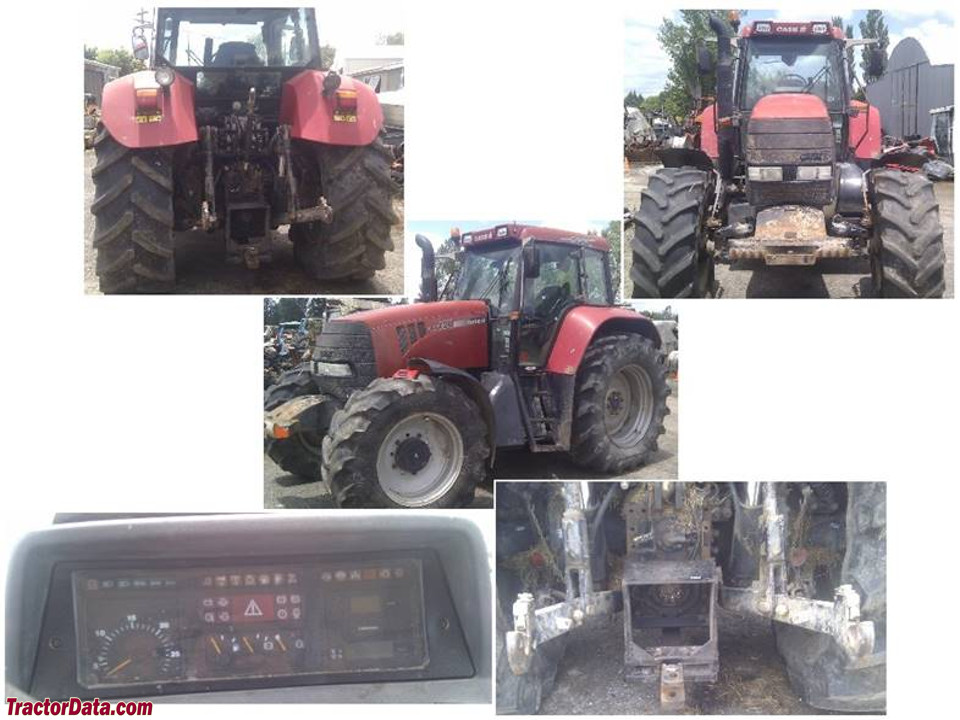

CaseIH CVX 120
CaseIH CVX 120 · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
6271 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc brakesReference
Engine
Sisu 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Engine89.5 kWReference
Sisu 620.84Reference
turbo dieselReference
6-cylinderReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power89.5 kWReference
Rated RPM2300Reference
Torque459.7 NmReference
Torque RPM1300Reference
PTO & Hydraulics
Total flow115.8 lpmReference
Rear lift9971 kgReference
Rear PTO Type540/750/1000/1400Reference
Dimensions
Wheelbase282 cmReference
Weight6271 kgReference
Front tire480/70R26Reference
Rear tire520/70R38Reference
Ag front480/70R26Reference
Ag rear520/70R38Reference
Length479 cmReference
Height304 cmReference
Transmission
Transmissioncontinuously variableReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
