Tractor · 1998Unverified

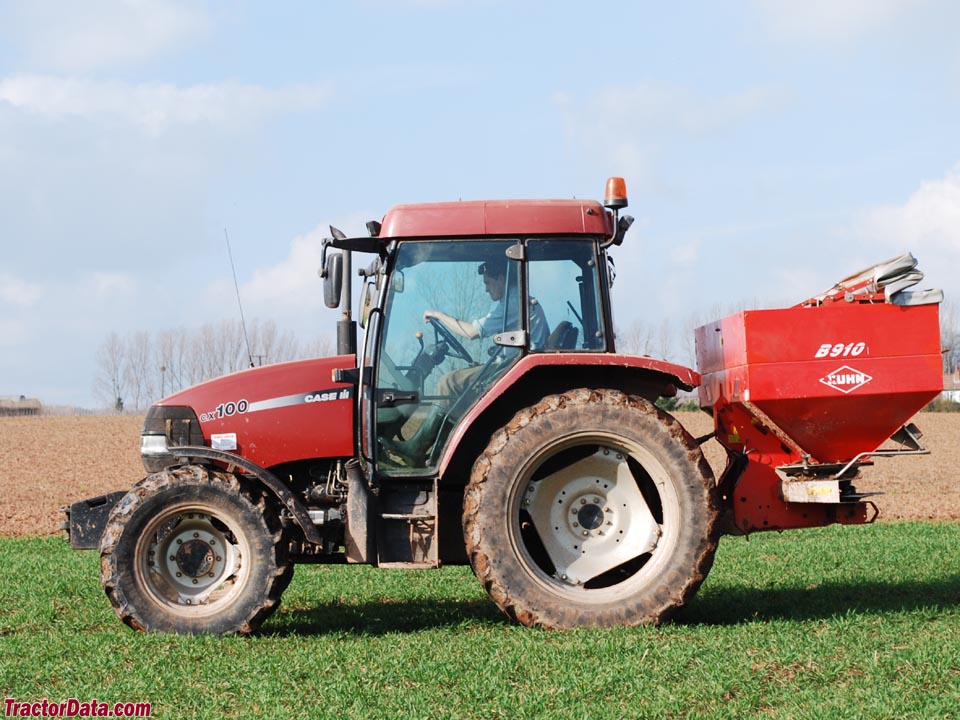

CaseIH CX100

Name: CaseIH CX100
Brand: CaseIH

CaseIH CX100 — CX Utility Series · 100 hp. Reference specifications; pending source verification.

The CaseIH CX100 is a tractor with a rated output of 100 hp, positioning it towards the middle of its class in terms of power. Produced between 1998 and 2002, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, transmitting power through a mechanical front-wheel drive system coupled with a hydrostatic transmission. The listed weight of the CaseIH CX100 ranges from 7396 to 8466 pounds. It is designed for use on areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

55.2 kW

Weight

7396 to 8466 pounds

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

100 hp

Transmissions

8-speed synchro shuttle

Production years

1998-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Original price$35,000 (1999)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

Two-post ROPS with flat platform. Optional cab with air-conditioning.Reference

Variants

CX100deluxe modelReference

C100basic modelReference

Engine

Perkins 4.0L 4-cyl dieselReference

Engine (gross)74.6 kWReference

Engine (net)70.1 kWReference

Drawbar (tested)55.2 kWReference

Perkins 1004.40TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power (net)70.1 kWReference

Power (gross)74.6 kWReference

Fuel systemmechanical direct injection with 5-hole injectorsReference

Air cleanerdual paper elementsReference

Compression17.25:1Reference

Rated RPM2200Reference

Torque402.7 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil capacity8.8 LReference

Oil change250 hReference

Coolant capacity16.0 LReference

Power at rated engine speed64.3 kWReference

Max power55.2 kWReference

Transmission

8-speed synchro shuttleReference

16-speed partial power shiftReference

24-speed creeperReference

Typesynchro shuttleReference

Gears8 forward and reverseReference

Clutch12-inch dry discReference

Oil capacity34.4 LReference

Oil capacity37.0 LReference

Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.Reference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.Reference

TypecreeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)61.9 kWReference

PTO (tested)64.3 kWReference

Hydraulic system34.4 LReference

Hydraulic system37.1 LReference

Typeopen centerReference

Capacity34.4 LReference

Capacity37.1 LReference

Pressure172.4 barReference

Valves0 to 3Reference

Pump flow59.4 lpmReference

Total flow91.6 lpmReference

Total flow59.4 lpmReference

Total flow32.2 lpmReference

Rear TypeII/IReference

Controlelectronic upper linkReference

Rear lift1662 kgReference

Rear lift2311 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional dual shaft)Reference

Power at rated PTO speed65.0 kWReference

Capacities

Fuel159.0 LReference

Max capacity4604 kgReference

Dimensions

Wheelbase234 cmReference

Wheelbase237 cmReference

Weight7396 to 8466 poundsReference

Front tire7.50-16Reference

Rear tire16.9-34Reference

Ag front7.50-16Reference

Ag rear16.9-34Reference

Shipping3354 kgReference

Shipping3840 kgReference

CX100 Serial Numbers

Location:Near the tractor steering column on right side.Reference

1998JJE1000056Reference

1999JJE1008492Reference

2000JJE1013490Reference

2001JJE1017672Reference

2002JJE1019985Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Battery CCA650Reference

Battery CCA810 (optional)Reference

Battery volts12Reference

Test results

Diesel 16-speed 4WDAugust 1998 - September 1998, Link: OCED Tractor Test 1899 fileReference

PTO performanceReference

Fuel use21.6 l/hourReference

Fuel use20.4 l/hourReference

Drawbar performanceReference

Fuel use21.2 l/hourReference

Gear 3-Low-Direct used for power test.Reference

Max pull4154 kgReference

Gear 2-Low-Direct used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
