Tractor · 1998Unverified

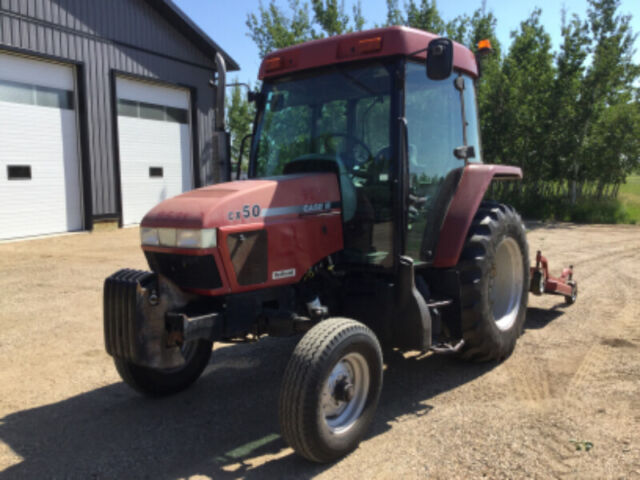

CaseIH CX50
CaseIH CX50 — CX Utility Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Max power
26.4 kW
Weight
7286 to 7970 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price$24,000 (1999)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Two-post ROPS with flat platform. Optional cab with air-conditioning.Reference
Variants
CX50deluxe modelReference
C50basic modelReference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine (gross)39.5 kWReference
Engine (net)35.8 kWReference
Drawbar (tested)26.4 kWReference
Perkins 903.27Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power (net)35.8 kWReference
Power (gross)39.5 kWReference
Fuel systemmechanical direct injection with 5-hole injectorsReference
Air cleanerdual paper elementsReference
Compression17.25:1Reference
Rated RPM2250Reference
Torque189.8 NmReference
Torque RPM1200Reference
Starter volts12Reference
Oil capacity7.6 LReference
Oil change250 hReference
Coolant capacity11.9 LReference
Power at rated engine speed31.7 kWReference
Max power26.4 kWReference
Transmission
8-speed synchro shuttleReference
16-speed partial power shiftReference
24-speed creeperReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Clutch12-inch dry discReference
Oil capacity34.4 LReference
Oil capacity37.0 LReference
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.Reference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)31.7 kWReference
Hydraulic system34.4 LReference
Hydraulic system37.1 LReference
Typeopen centerReference
Capacity34.4 LReference
Capacity37.1 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Pump flow51.9 lpmReference
Total flow84.0 lpmReference
Total flow51.9 lpmReference
Total flow32.2 lpmReference
Rear TypeII/IReference
Controlelectronic upper linkReference
Rear lift1662 kgReference
Rear lift2311 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional dual shaft)Reference
Power at rated PTO speed30.5 kWReference
Capacities
Fuel159.0 LReference
Max capacity4604 kgReference
Dimensions
Wheelbase215 cmReference
Wheelbase221 cmReference
Weight7286 to 7970 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Shipping3304 kgReference
Shipping3615 kgReference
CX50 Serial Numbers
Location:Near the tractor steering column on right side.Reference
1998JJE1000056Reference
1999JJE1008492Reference
2000JJE1013490Reference
2001JJE1017672Reference
2002JJE1019985Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA650Reference
Battery CCA810 (optional)Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDApril 1999 - June 1999, Link: OCED Tractor Test 1893 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Gear 1-High-TA used for power test.Reference
Max pull3624 kgReference
Gear 1-Low-Direct used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
