Tractor · 1998Unverified

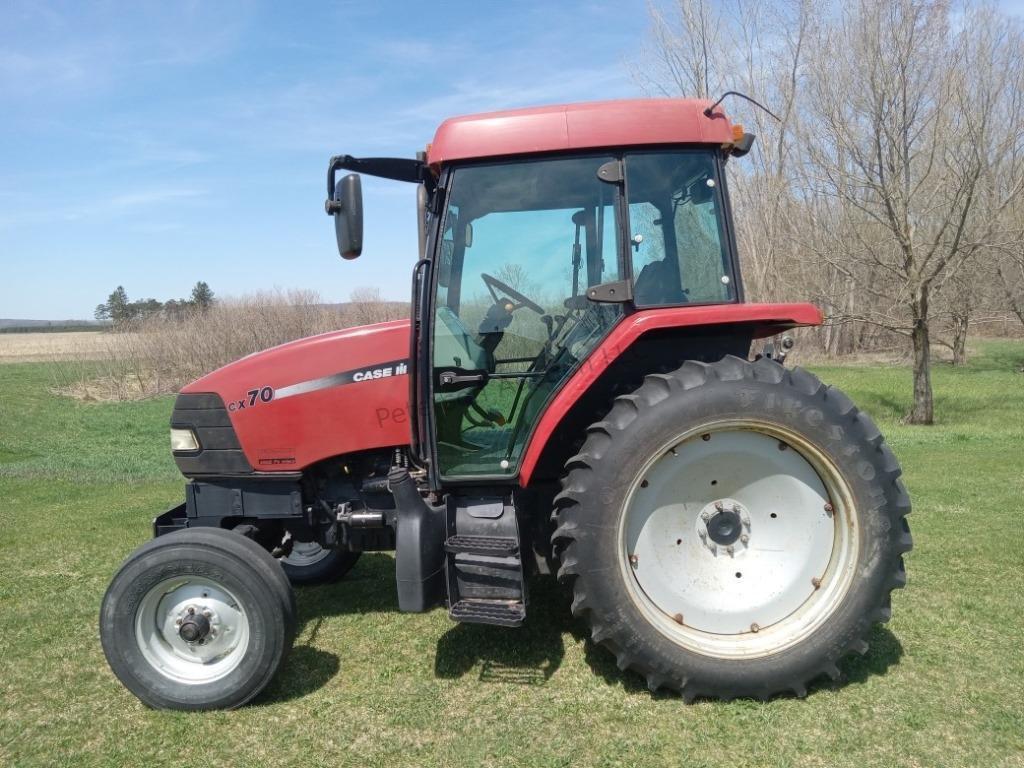

CaseIH CX70
CaseIH CX70 — CX Utility Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Max power
37.4 kW
Weight
7396 to 8466 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price$27,000 (1999)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockelectro-hydraulicReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Two-post ROPS with flat platform. Optional cab with air-conditioning.Reference
Variants
CX70deluxe modelReference
C70basic modelReference
Engine
Perkins 4.2L 4-cyl dieselReference
Engine (gross)54.4 kWReference
Engine (net)49.2 kWReference
Drawbar (tested)37.4 kWReference
Perkins 1004.42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power (net)49.2 kWReference
Power (gross)54.4 kWReference
Fuel systemmechanical direct injection with 5-hole injectorsReference
Air cleanerdual paper elementsReference
Compression18.5:1Reference
Rated RPM2200Reference
Torque282.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity8.8 LReference
Oil change250 hReference
Coolant capacity16.0 LReference
Power at rated engine speed44.5 kWReference
Max power37.4 kWReference
Transmission
8-speed synchro shuttleReference
16-speed partial power shiftReference
24-speed creeperReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Clutch12-inch dry discReference
Oil capacity34.4 LReference
Oil capacity37.0 LReference
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.Reference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)43.3 kWReference
PTO (tested)44.5 kWReference
Hydraulic system34.4 LReference
Hydraulic system37.1 LReference
Typeopen centerReference
Capacity34.4 LReference
Capacity37.1 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Pump flow59.4 lpmReference
Total flow91.6 lpmReference
Total flow59.4 lpmReference
Total flow32.2 lpmReference
Rear TypeII/IReference
Controlelectronic upper linkReference
Rear lift1662 kgReference
Rear lift2311 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional dual shaft)Reference
Power at rated PTO speed46.3 kWReference
Capacities
Fuel159.0 LReference
Max capacity4604 kgReference
Dimensions
Wheelbase226 cmReference
Wheelbase235 cmReference
Weight7396 to 8466 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Shipping3354 kgReference
Shipping3840 kgReference
Operating3749 kgReference
CX70 Serial Numbers
Location:Near the tractor steering column on right side.Reference
1998JJE1000056Reference
1999JJE1008492Reference
2000JJE1013490Reference
2001JJE1017672Reference
2002JJE1019985Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA650Reference
Battery CCA810 (optional)Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDOctober 1998 - November 1998, Link: OCED Tractor Test 1895 fileReference
PTO performanceReference
Fuel use14.8 l/hourReference
Drawbar performanceReference
Fuel use15.1 l/hourReference
Gear 3-Low-Direct used for power test.Reference
Max pull4302 kgReference
Gear 1-Low-TA used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
