Tractor · 2001Unverified

CaseIH D35

Name: CaseIH D35
Brand: CaseIH

CaseIH D35 — DX Series · 35 hp. Reference specifications; pending source verification.

The CaseIH D35 is a tractor model with a rated power of 35 hp, positioning it at the lighter end of its class. This model was manufactured between 2001 and 2006. It features a 3-cylinder diesel liquid-cooled engine and a hydrostatic transmission with four-wheel drive. Its operating weight ranges from 2947 to 3096 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Weight

2947 to 3096 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

35 hp

Recorded weight

1336 kg

Transmissions

12-speed synchronized shuttle

Production years

2001-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post fixed ROPS. Folding ROPS optional. Optional canopy, soft cab, and radio.Reference

Variants

D35shuttleReference

DX35hydrostaticReference

TC35similar New Holland modelReference

Engine

Shibaura 1.7L 3-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)26.1 kWReference

ShibauraReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.7 LReference

Bore/Stroke84 x 100 mmReference

Power (gross)26.1 kWReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Four speeds in three ranges with left-hand shuttle.Reference

PTO & Hydraulics

PTO (claimed)22.1 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow37.1 lpmReference

Total flow56.4 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)918 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase186 cmReference

Weight2947 to 3096 poundsReference

Front tire5.50x16Reference

Rear tire13.6x24Reference

2WD Ag front5.50x16Reference

2WD Ag front7.5Lx15Reference

4WD Ag front7.00-16Reference

4WD Ag front8.00-16Reference

Ag rear13.6x24Reference

Ag rear14.9x24Reference

4WD Lawn/turf front25x8.50-14Reference

4WD Lawn/turf front27x8.50-15Reference

Lawn/turf rear44-18-20Reference

4WD Industrial front10x16.5Reference

Industrial rear17.5Lx24Reference

Length295 cmReference

Width155 cmReference

Height (ROPS)238 cmReference

2WD Shipping weight1336 kgReference

4WD Shipping weight1404 kgReference

Ground clearance33 cmReference

Front tread117 cmReference

Rear tread119 to 171 cmReference

CaseIH D35 attachments

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Attachment overview

BladeReference

CaseIH L160 loaderReference

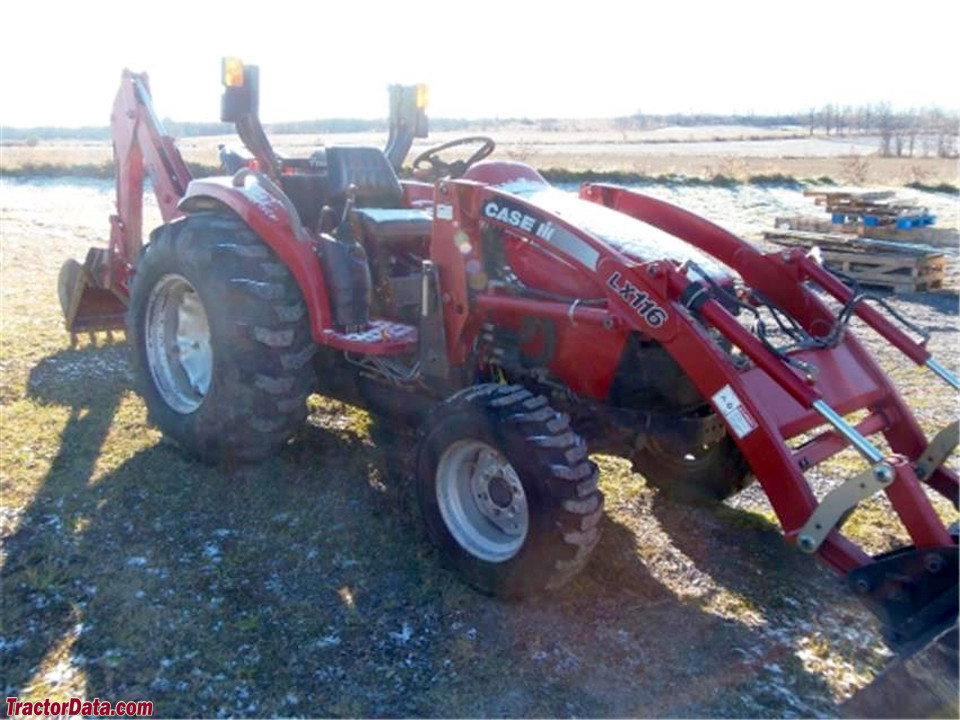

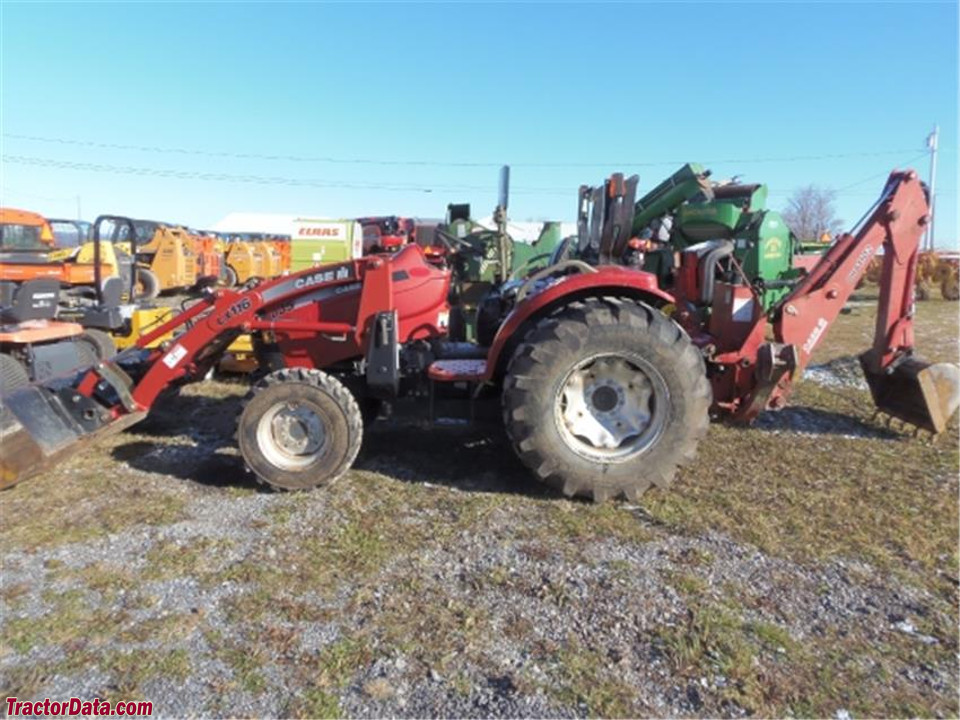

CaseIH LX116 loaderReference

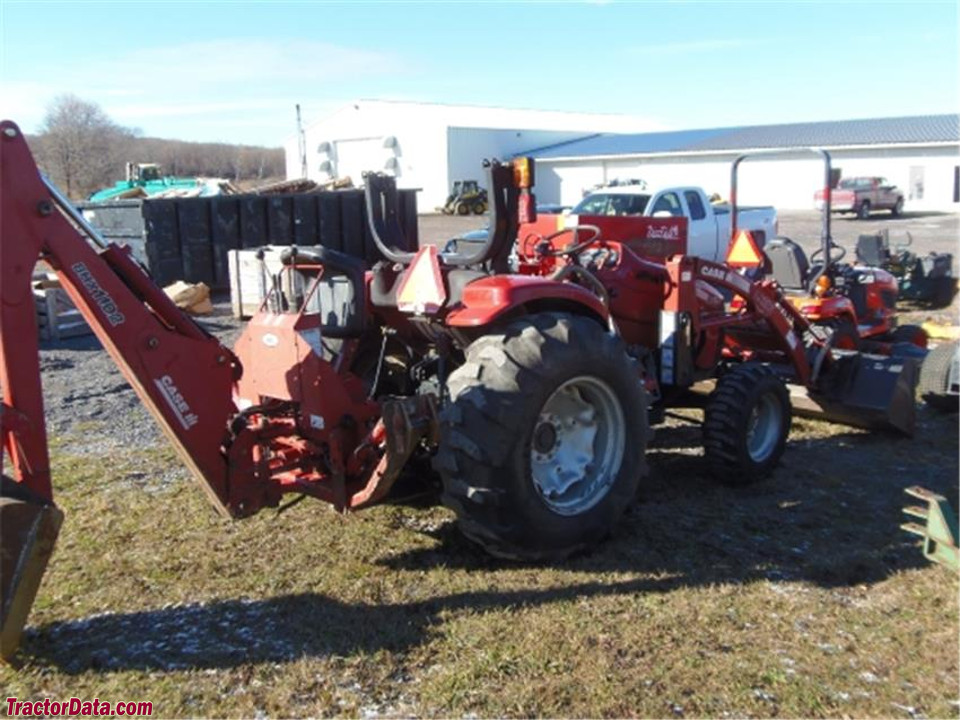

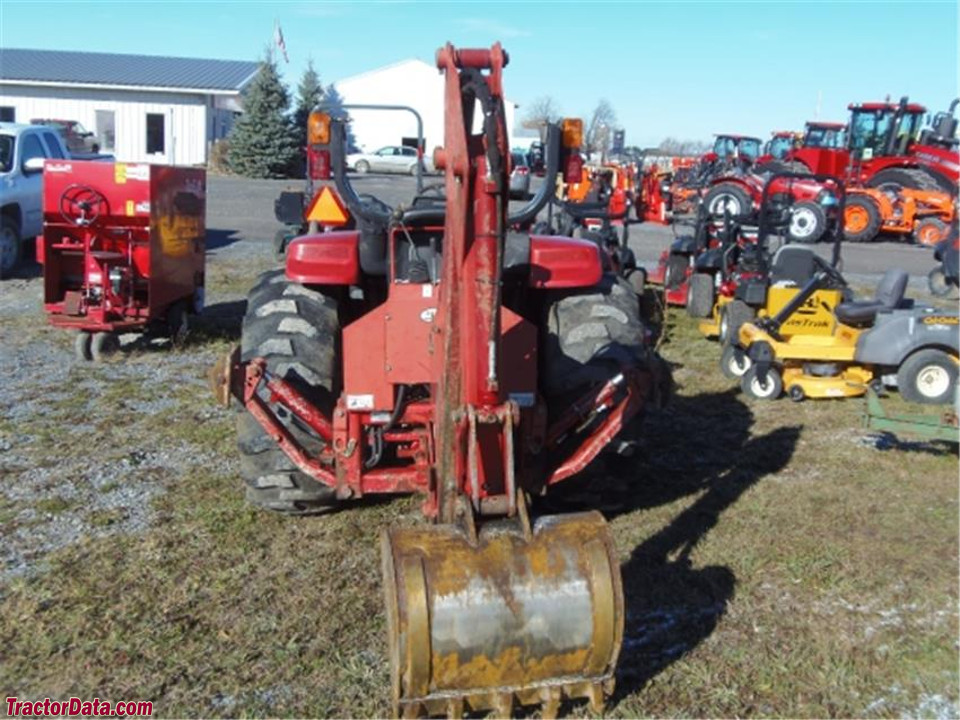

BackhoeReference

CaseIH 757C Backhoe

Backhoe typeCaseIH 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth190 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

CaseIH 758C Backhoe

Backhoe typeCaseIH 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height195 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

CaseIH BHX190 Backhoe

Backhoe typeCaseIH BHX190 BackhoeReference

Digging depth228 cmReference

Bucket force1230 kgReference

Dipperstick force884 kgReference

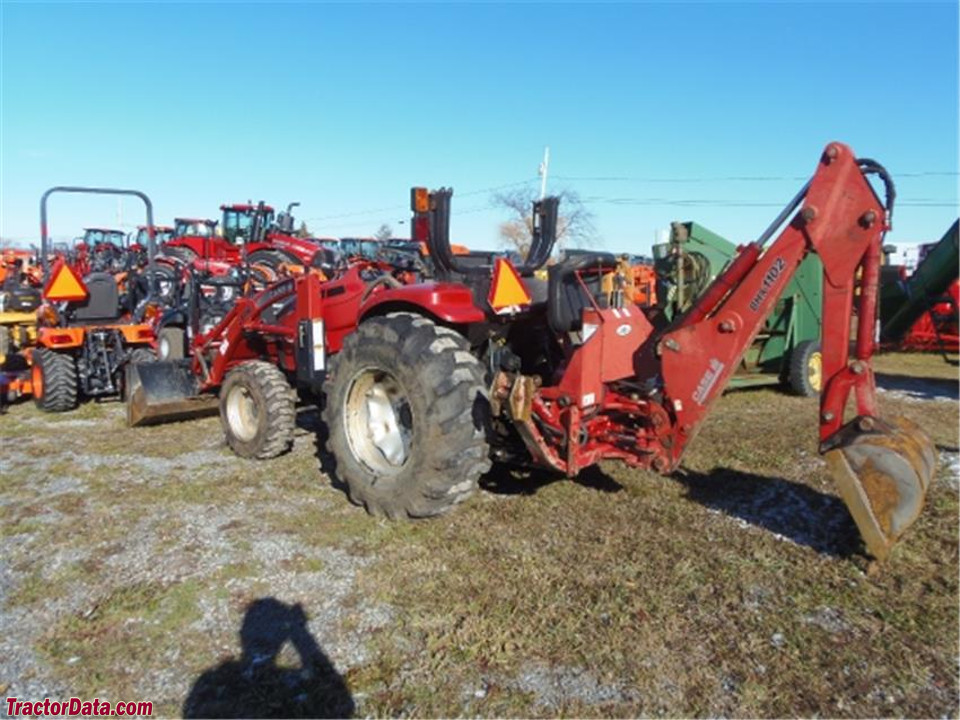

CaseIH BHX1102 Backhoe

Backhoe typeCaseIH BHX1102 BackhoeReference

Digging depth259 cmReference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
