Tractor · 2001Unverified

CaseIH D40

Name: CaseIH D40
Brand: CaseIH

CaseIH D40 — DX Series · 40 hp. Reference specifications; pending source verification.

The Case IH D40 is a compact tractor, rated at 40 hp, manufactured from 2001 to 2006. It features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The tractor weighs between 2998 and 3147 pounds. It is designed for use on small to medium-sized areas, typically up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

2998 to 3147 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

40 hp

Recorded weight

1359 kg

Transmissions

12-speed synchronized shuttle

Production years

2001-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Foldable ROPS optional. Optional canopy, soft cab, and radio.Reference

Variants

D40shuttleReference

DX40hydrostaticReference

TC40similar New Holland modelReference

Engine

Shibaura 2.0L 4-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)29.8 kWReference

ShibauraReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)29.8 kWReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

12-speed synchronized shuttleReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Four speeds in three ranges with left-hand shuttle.Reference

PTO & Hydraulics

PTO (claimed)26.1 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow37.1 lpmReference

Total flow56.4 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)1056 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase186 cmReference

Weight2998 to 3147 poundsReference

Front tire5.50x16Reference

Rear tire13.6x24Reference

Ag front5.50x16 (2WD)Reference

Ag front7.5Lx15 (2WD)Reference

Ag front7.00-16 (4WD)Reference

Ag front8.00-16 (4WD)Reference

Ag rear13.6x24Reference

Ag rear14.9x24Reference

Lawn/turf front25x8.50-14 (4WD)Reference

Lawn/turf front27x8.50-15 (4WD)Reference

Lawn/turf rear44-18-20Reference

Industrial front10x16.5 (4WD)Reference

Industrial rear17.5Lx24Reference

Length295 cmReference

Width155 cmReference

Height (ROPS)238 cmReference

Shipping weight1359 kgReference

Shipping weight1427 kgReference

Ground clearance33 cmReference

Front tread117 cmReference

Rear tread119 to 171 cmReference

CaseIH D40 attachments

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Attachment overview

BladeReference

CaseIH L160 loaderReference

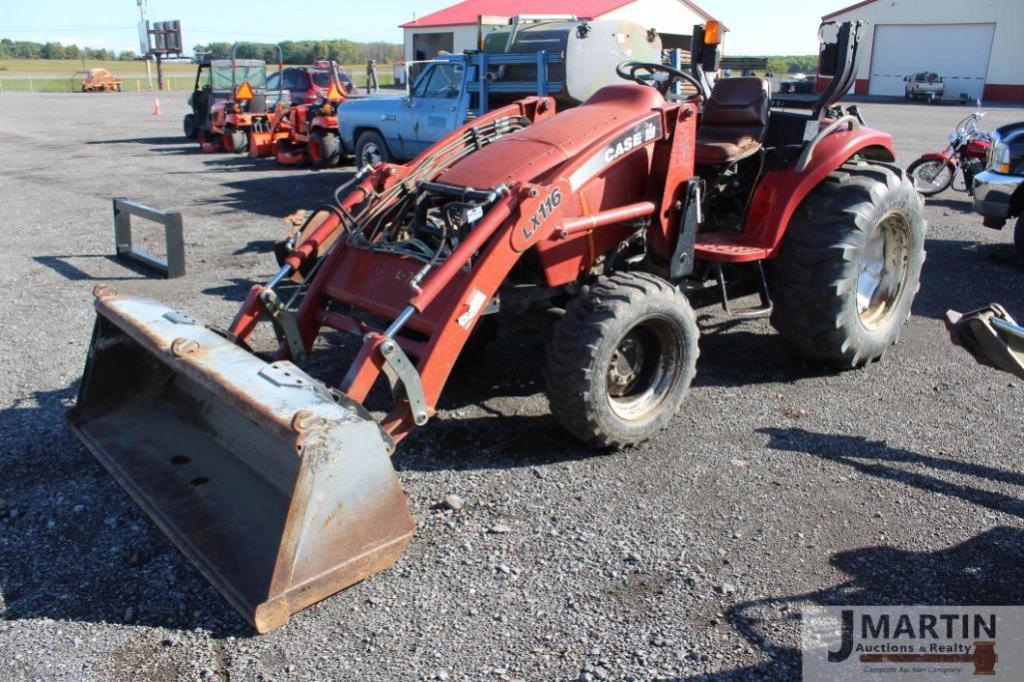

CaseIH LX116 loaderReference

BackhoeReference

CaseIH 757C Backhoe

Backhoe typeCaseIH 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth190 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

CaseIH 758C Backhoe

Backhoe typeCaseIH 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height195 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

CaseIH BHX190 Backhoe

Backhoe typeCaseIH BHX190 BackhoeReference

Digging depth228 cmReference

Bucket force1230 kgReference

Dipperstick force884 kgReference

CaseIH BHX1102 Backhoe

Backhoe typeCaseIH BHX1102 BackhoeReference

Digging depth259 cmReference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
