Tractor · 2001Unverified

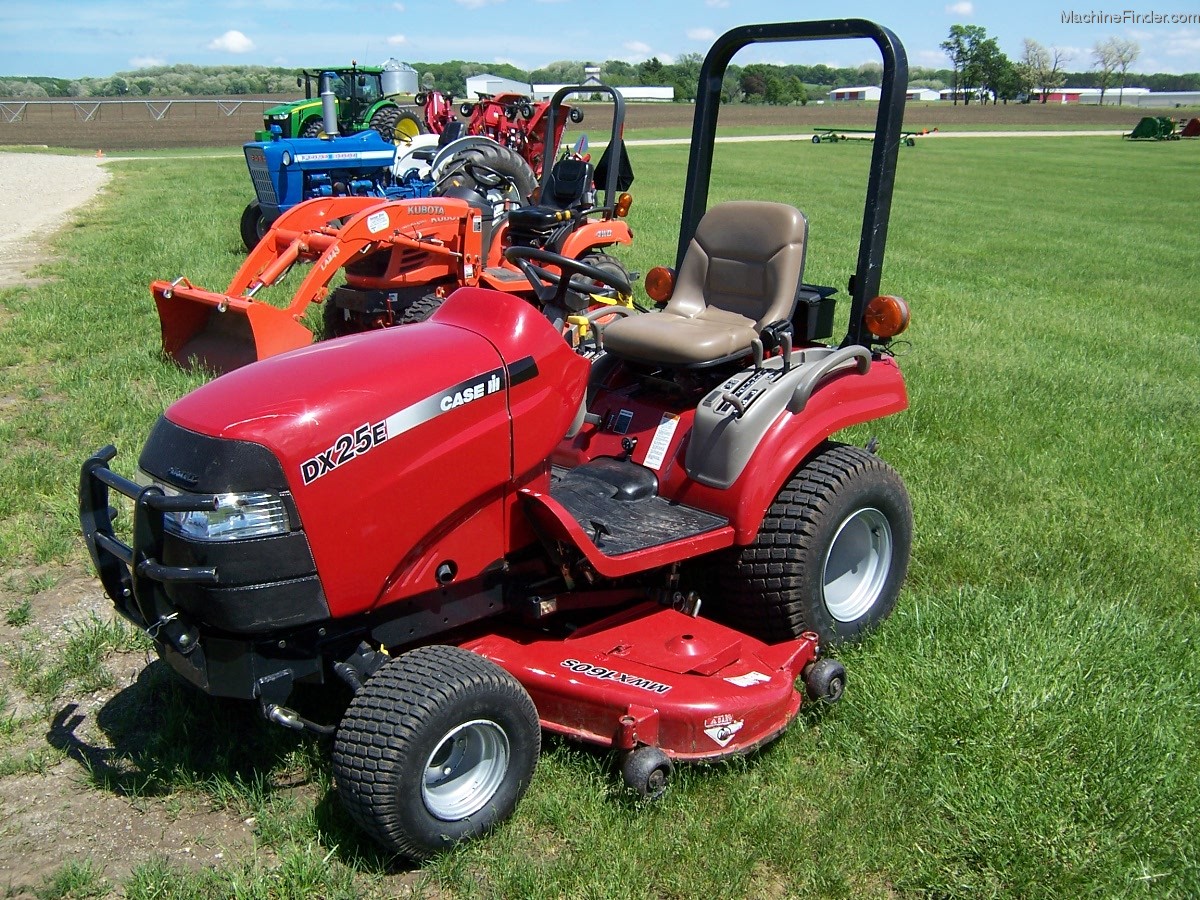

CaseIH DX25

Name: CaseIH DX25
Brand: CaseIH

CaseIH DX25 — DX Series · 25 hp. Reference specifications; pending source verification.

The CaseIH DX25 is a tractor rated at approximately 25 horsepower, positioning it at the lower end of its class. It was manufactured from 2001 to 2003. The tractor features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight is specified at 1122 kg, with a capacity for operations up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1122 kg

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

25 hp

Recorded weight

1122 kg

Transmissions

hydrostatic

Production years

2001-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Folding two-post ROPS. Optional canopy, soft cab, and radio.Reference

Variants

D25gearReference

DX25hydrostaticReference

TC25similar New Holland modelReference

Engine

Shibaura 1.3L 3-cyl dieselReference

Fuel tank27.6 LReference

Engine (gross)18.6 kWReference

ShibauraReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke84 x 80 mmReference

Power (gross)18.6 kWReference

Air cleanerdual dry elementReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)15.1 kWReference

Typeopen centerReference

Pump flow26.9 lpmReference

Total flow46.2 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)741 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase160 cmReference

Weight1122 kgReference

Front tire7.00x14Reference

Rear tire11.2x24Reference

Ag front7.00x14Reference

Ag rear11.2x24Reference

Lawn/turf front24x8.50-14Reference

Lawn/turf rear13.6x16Reference

Industrial front25x8.50-14Reference

Industrial rear17.5Lx24Reference

Length269 cmReference

Width137 cmReference

Height (ROPS)222 cmReference

Shipping weight1122 kgReference

Ground clearance35 cmReference

Front tread110 cmReference

Rear tread108 cmReference

CaseIH DX25 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA420Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

CaseIH 757C Backhoe

Backhoe typeCaseIH 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth190 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

CaseIH 758C Backhoe

Backhoe typeCaseIH 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height195 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
