Tractor · 2005Unverified
CaseIH DX26
CaseIH DX26 — DX Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
725 kg
Hover a source tag to verify
Overview
ManufacturerCaseIH (a part of CNH)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
TC26DAsimilar New Holland modelReference
Engine
Shibaura 1.1L 3-cyl dieselReference
Engine (gross)19.4 kWReference
ShibauraReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
Power (gross)19.4 kWReference
Compression23.1:1Reference
Rated RPM2850Reference
Idle RPM1100-3075Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity3.5 LReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Oil capacity3.3 LReference
Oil change100 hReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)15.3 kWReference
Hydraulic system16.0 LReference
Typeopen centerReference
Capacity16.0 LReference
Pressure127.5 barReference
Pump flow20.1 lpmReference
Total flow31.4 lpmReference
Steering flow11.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)573 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2388 (gear)Reference
Engine RPM540@2503 (hydro)Reference
Mid PTOindependentReference
Mid PTO Type2000 (1.0)Reference
Capacities
Fuel20.1 LReference
Dimensions
Wheelbase146 cmReference
Weight725 kgReference
Front tire5-12Reference
Rear tire9.5-16Reference
Ag front5-12Reference
Ag rear9.5-16Reference
Ag front6-12Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear31x13.5-15Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length270 cmReference
Width113 cmReference
Height (steering wheel)129 cmReference
Height (ROPS)206 cmReference
Height (Folded ROPS)173 cmReference
Ground clearance27 cmReference
Front tread84 cmReference
Rear tread89 cmReference
CaseIH DX26 attachments
front-end loaderReference
DX26 Serial Numbers
Location:Serial number decal on the front-right of the tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA450Reference
Battery volts12Reference
Attachment overview

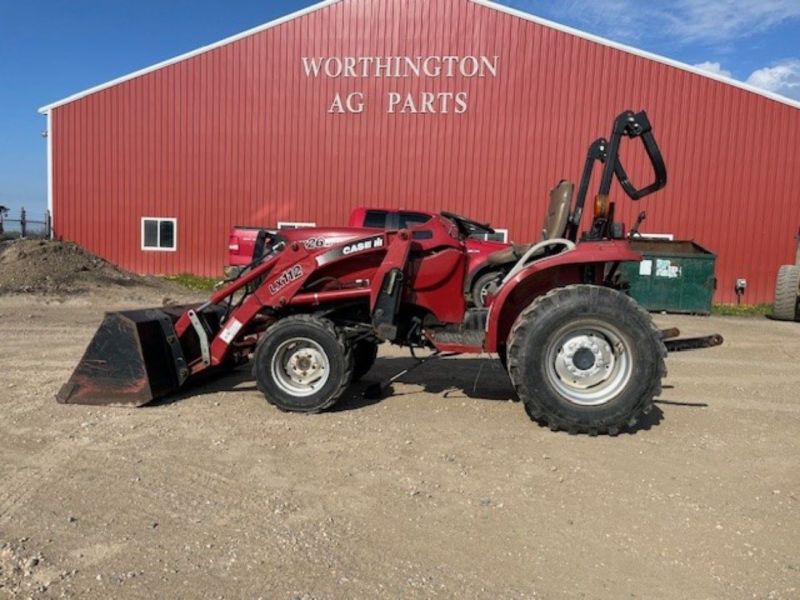

CaseIH LX112 loaderReference
CaseIH LX330 loaderReference
Speeds
With 29x10.00-15 R3 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
