Tractor · 2001Unverified
CaseIH DX33
CaseIH DX33 — DX Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1122 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Optional canopy, soft cab, and radio.Reference
Variants
D33gearReference
DX33hydrostaticReference
TC33similar New Holland modelReference
Engine
Shibaura 1.5L 3-cyl dieselReference
Fuel tank27.6 LReference
Engine (gross)24.6 kWReference
ShibauraReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power (gross)24.6 kWReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Typeopen centerReference
Pump flow28.8 lpmReference
Total flow48.1 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)741 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase160 cmReference
Weight1122 kgReference
Front tire7.00x14Reference
Rear tire11.2x24Reference
Ag front7.00x14Reference
Ag rear11.2x24Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear13.6x16Reference
Industrial front25x8.50-14Reference
Industrial rear17.5Lx24Reference
Length269 cmReference
Width137 cmReference
Height (ROPS)222 cmReference
Shipping weight1122 kgReference
Ground clearance35 cmReference
Front tread110 cmReference
Rear tread108 cmReference
CaseIH DX33 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference

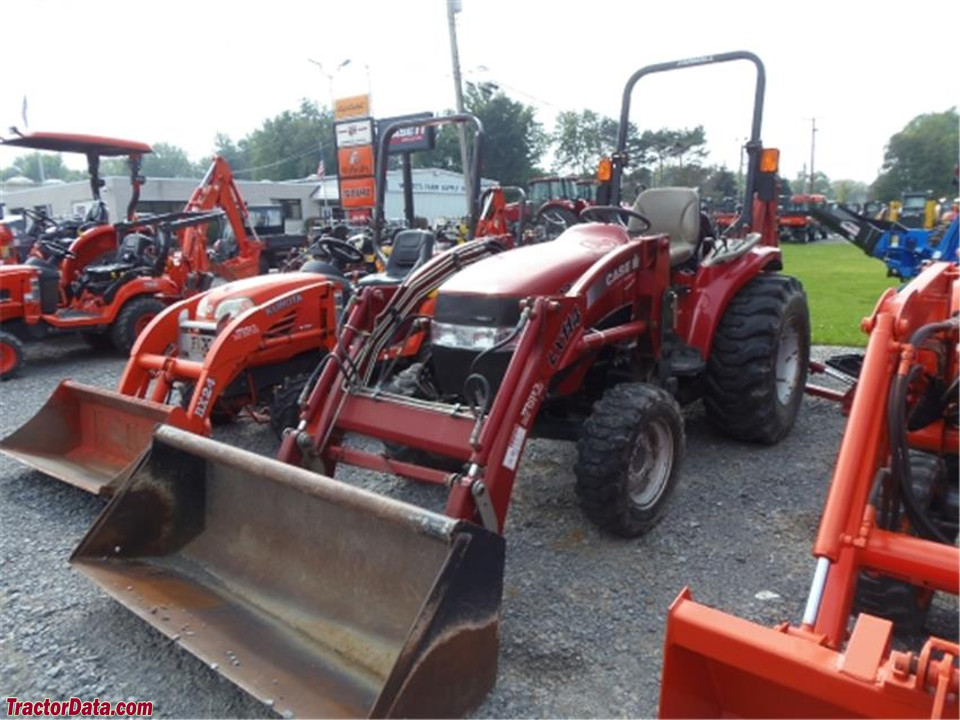

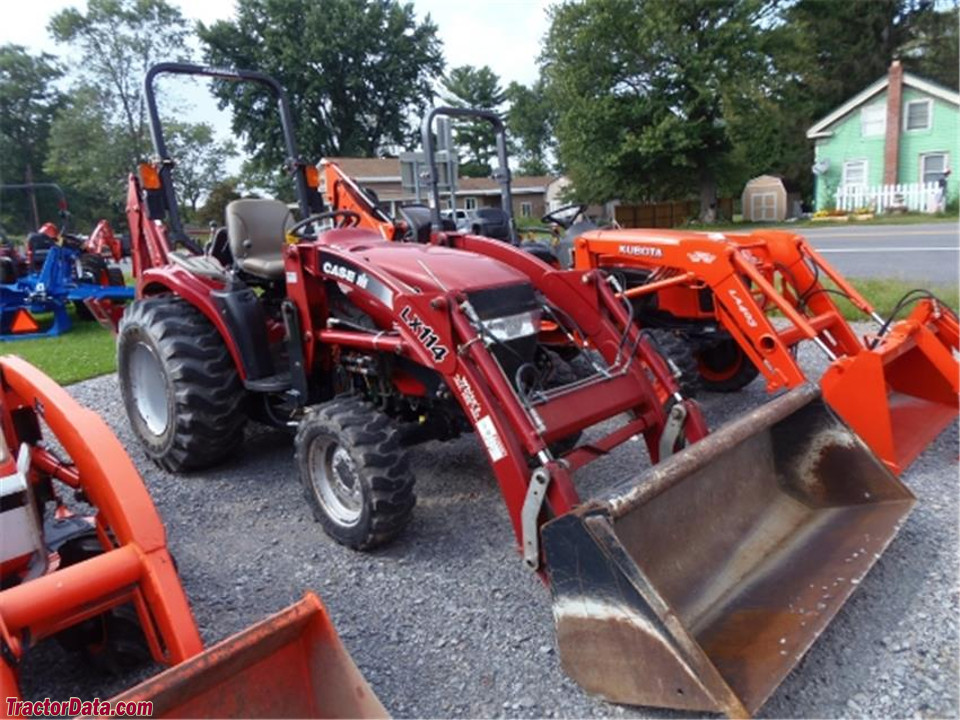

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA420Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference

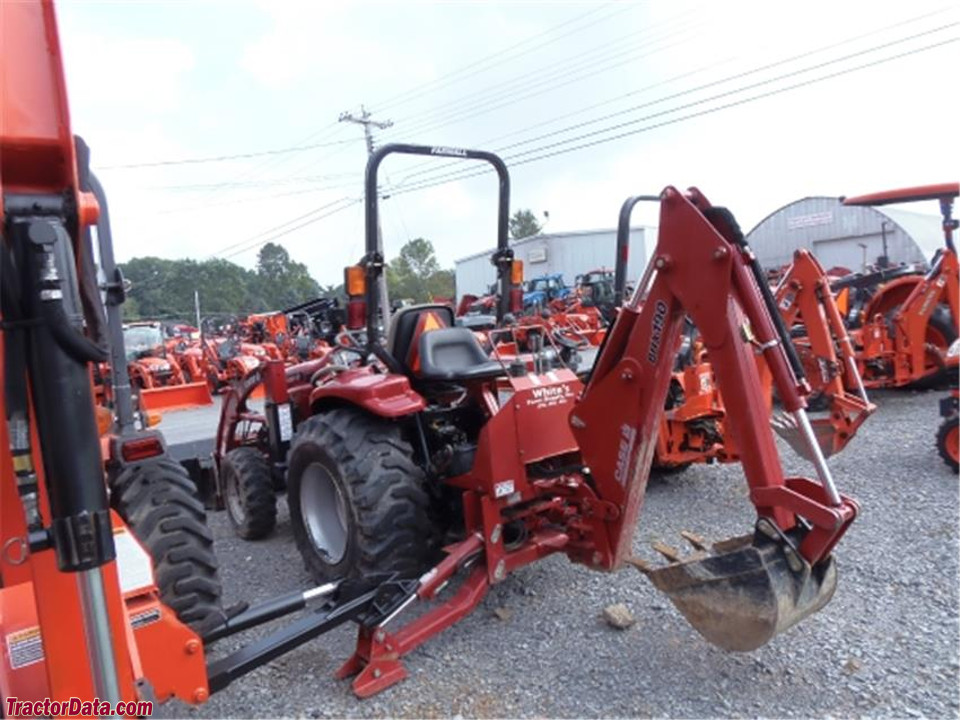

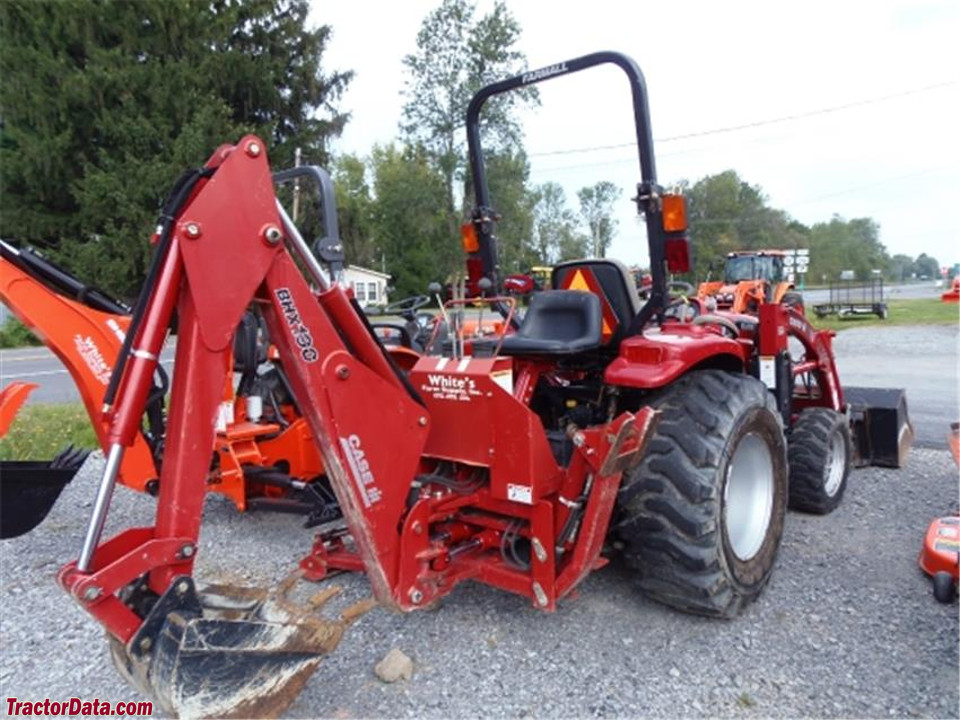

CaseIH 757C Backhoe
Backhoe typeCaseIH 757C BackhoeReference
Transport height190 cmReference
2-Foot flat digging depth228 cmReference
8-Foot flat digging depth190 cmReference
Reach from pivot302 cmReference
Loading height167 cmReference
Bucket Rotation170°Reference
Swing Arc180°Reference
Bucket force1213 kgReference
Dipperstick force954 kgReference
CaseIH 758C Backhoe
Backhoe typeCaseIH 758C BackhoeReference
Transport height205 cmReference
2-Foot flat digging depth259 cmReference
8-Foot flat digging depth210 cmReference
Reach from pivot335 cmReference
Loading height195 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1610 kgReference
Dipperstick force1009 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
