Tractor · 2001Unverified

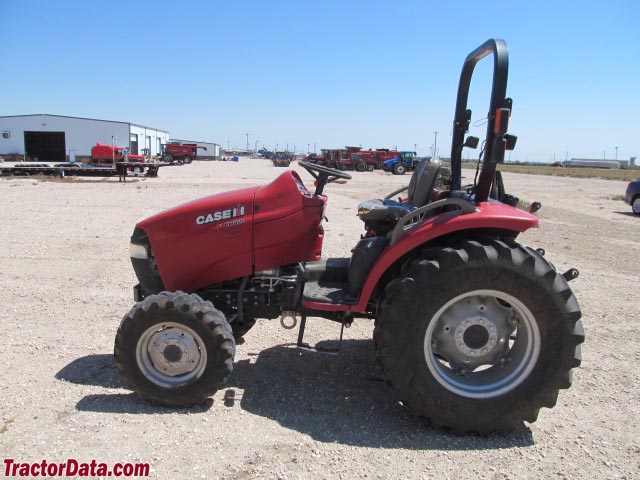

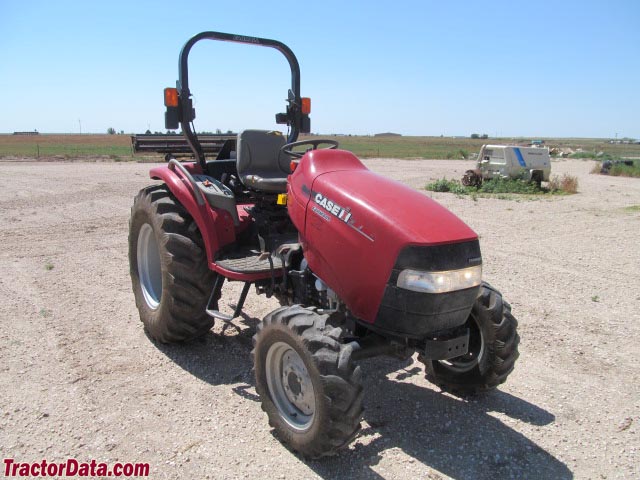

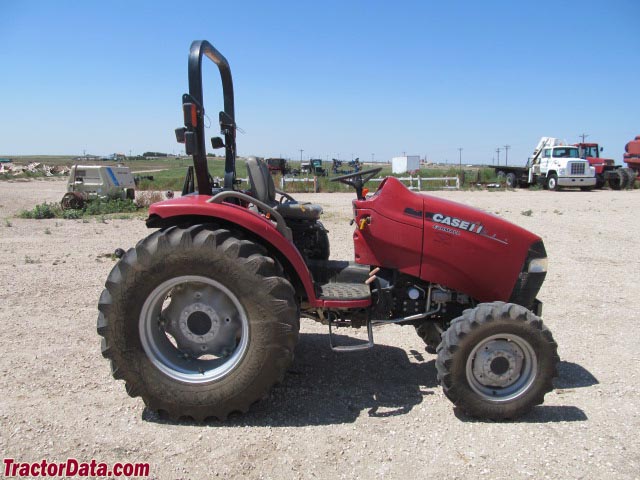

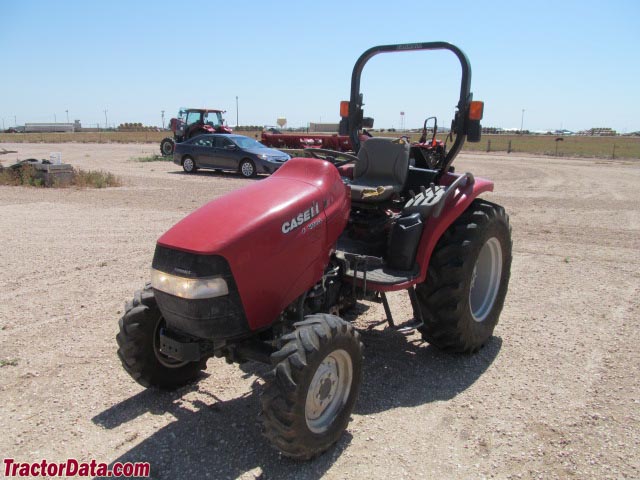

CaseIH DX40

Name: CaseIH DX40
Brand: CaseIH

CaseIH DX40 — DX Series · 40 hp. Reference specifications; pending source verification.

The CaseIH DX40 is a compact tractor with a rated output of 40 hp, one of the smaller options in its class. It was manufactured from 2001 to 2006. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. Its listed weight ranges from 3328 to 4026 pounds, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

3328 to 4026 pounds

Catalogue coverage

Variants represented

Richest spec table

104 rows

Recorded power

40 hp

Recorded weight

1509 kg

Transmissions

hydrostatic

Production years

2001-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Compact Utility tractorReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS. Optional canopy, soft cab, and radio. Cab available.Reference

Variants

D40shuttleReference

DX40hydrostaticReference

TC40similar New Holland modelReference

Engine

Shibaura 2.0L 4-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)29.8 kWReference

ShibauraReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)29.8 kWReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)24.8 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow37.1 lpmReference

Total flow56.4 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)918 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase186 cmReference

Weight3328 to 4026 poundsReference

Front tire7.00-16Reference

Rear tire13.6x24Reference

Ag front7.00-16Reference

Ag front8.00-16Reference

Ag rear13.6x24Reference

Ag rear14.9x24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear44-18-20Reference

Industrial front10x16.5Reference

Industrial rear17.5Lx24Reference

Length295 cmReference

Width155 cmReference

Height (ROPS)240 cmReference

Height (cab)228 cmReference

ROPS Shipping weight1509 kgReference

Cab Shipping weight1826 kgReference

Ground clearance33 cmReference

Front tread117 cmReference

Rear tread119 to 171 cmReference

CaseIH DX40 attachments

84" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Attachment overview

84" mid-mount mower deckReference

SnowblowerReference

BladeReference

CaseIH L160 loaderReference

CaseIH LX116 loaderReference

BackhoeReference

CaseIH 757C Backhoe

Backhoe typeCaseIH 757C BackhoeReference

Transport height190 cmReference

2-Foot flat digging depth228 cmReference

8-Foot flat digging depth190 cmReference

Reach from pivot302 cmReference

Loading height167 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1213 kgReference

Dipperstick force954 kgReference

CaseIH 758C Backhoe

Backhoe typeCaseIH 758C BackhoeReference

Transport height205 cmReference

2-Foot flat digging depth259 cmReference

8-Foot flat digging depth210 cmReference

Reach from pivot335 cmReference

Loading height195 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

CaseIH BHX190 Backhoe

Backhoe typeCaseIH BHX190 BackhoeReference

Digging depth228 cmReference

Bucket force1230 kgReference

Dipperstick force884 kgReference

Case IH BHX1102 Backhoe

Backhoe typeCase IH BHX1102 BackhoeReference

Digging depth259 cmReference

Bucket force1610 kgReference

Dipperstick force1009 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
