Tractor · 2024Unverified

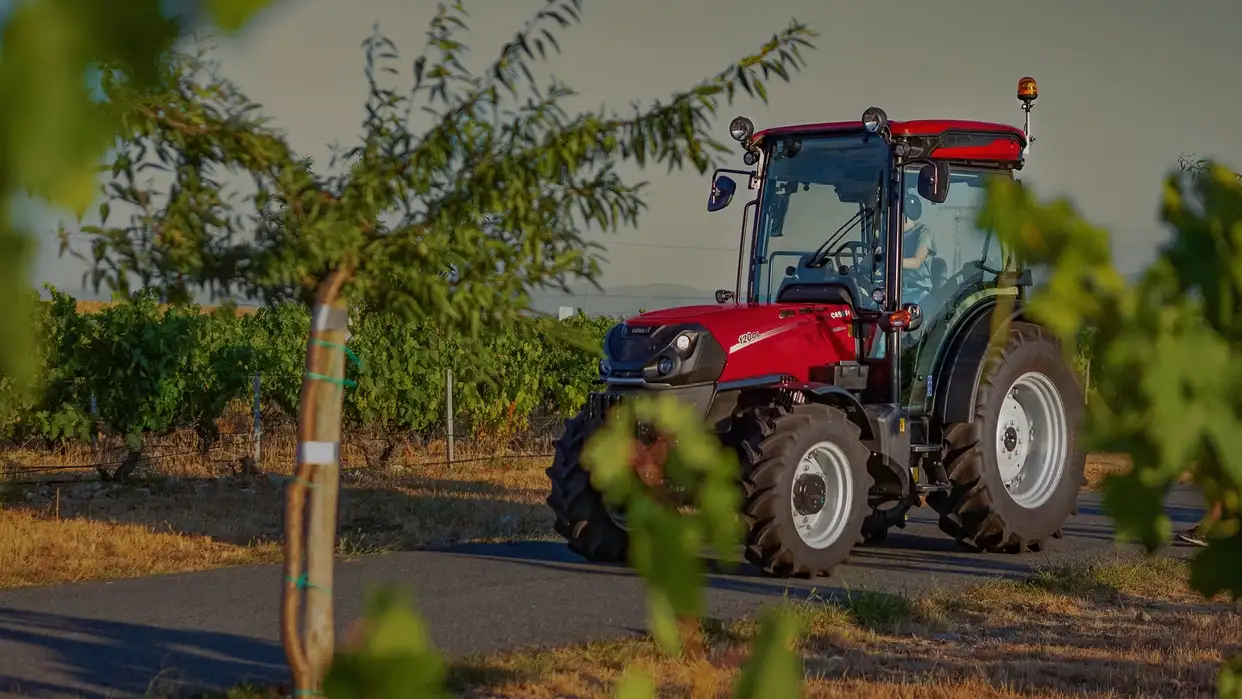

CaseIH Farmall 100CL

Name: CaseIH Farmall 100CL
Brand: CaseIH

CaseIH Farmall 100CL — CL Series · 87 hp. Reference specifications; pending source verification.

The CaseIH Farmall 100CL is a tractor with a rated output of 87 hp, positioning it within the middle range of its class in terms of power. Produced in 2024, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives the four-wheel drive system through a powershift transmission. Designed for use on areas of up to 200 acres, this tractor's capabilities are further detailed in the accompanying tables.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

87 hp

Catalogue coverage

Variants represented

Richest spec table

38 rows

Recorded power

87 hp

Transmissions

16-speed power shuttle

Production years

2024-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIH (a part of CNH)Reference

Orchard/Vineyard tractorReference

Four-wheel driveReference

ROPS. Cab optional.Reference

Engine

3.6L 4-cyl dieselReference

Cab Fuel tank74.9 LReference

ROPS Fuel tank65.1 LReference

Exhaust fluid (DEF)13.6 LReference

Engine73.1 kWReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke102 x 110 mmReference

EmissionsTier IVReference

Power73.1 kWReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed power shuttleReference

32-speed partial power shiftReference

Typepower shuttleReference

Gears16 forward and reverseReference

Clutchwet discReference

Typepartial power shiftReference

Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)64.9 kWReference

Valves3Reference

Pump flow64.0 lpmReference

Pump flow79.5 lpmReference

Rear TypeIIReference

Rear lift650 kgReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase167 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
