Tractor · 2020Unverified

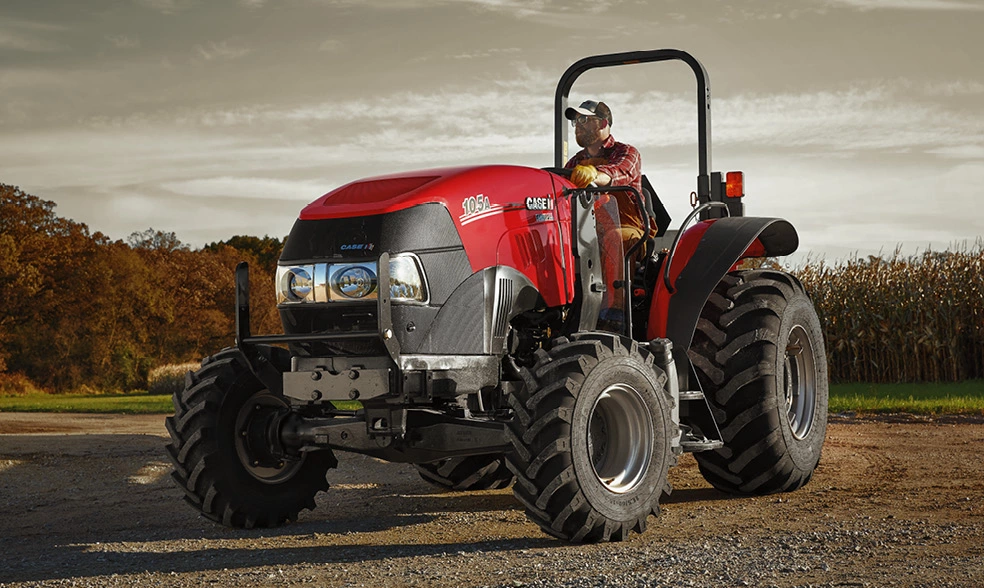

CaseIH Farmall 105A
CaseIH Farmall 105A — Utility tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
7304 to 8492 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 3.4L 4-cyl dieselReference
ROPS Fuel tank90.1 LReference
Cab Fuel tank109.8 LReference
Exhaust fluid (DEF)11.0 LReference
Engine83.5 kWReference
FPT F5GReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier IVReference
Power83.5 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
20-speed creeperReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and reverseReference
PTO & Hydraulics
PTO (claimed)68.6 kWReference
Typeopen centerReference
Rear valves2 or 3Reference
Pump flow64.0 lpmReference
Pump flow81.8 lpmReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at ends)1999 kgReference
Rear lift (at 24"/610mm)1451 kgReference
Rear lift (at 24"/610mm)3499 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase231 cmReference
4WD ROPS Wheelbase213 cmReference
4WD Cab Wheelbase226 cmReference
Weight7304 to 8492 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
2WD Optional tires (ag)Front: 7.5-16. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 10-16. Rear: 16.9-34Reference
2WD Length411 cmReference
4WD Length408 cmReference
Height (ROPS)261 cmReference
Height (cab)269 cmReference
Flange rear axleReference
2WD ROPS3313 kgReference
2WD Cab3707 kgReference
4WD ROPS3487 kgReference
4WD Cab3851 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
