Tractor · 2013Unverified

CaseIH Farmall 105C

Name: CaseIH Farmall 105C
Brand: CaseIH

CaseIH Farmall 105C — Farmall C Series · 94 hp. Reference specifications; pending source verification.

The CaseIH Farmall 105C is a tractor with a rated output of 94 hp, placing it in the middle of its class in terms of power. Produced from 2013 to 2015, the Farmall 105C features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system through a 12-speed gearbox. The listed weight of the tractor is 3600 kg, and it is designed to handle tasks on land areas ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Weight

3600 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

94 hp

Recorded weight

3600 kg

Transmissions

12-speed mechanical shuttle

Production years

2013-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

ROPS Brakesmechanical wet discReference

Cab Brakeshydraulic wet discReference

Two-post foldable ROPS. Cab optional with heat and air-conditioning.Reference

Engine

Fiat Powertrain Technologies (FPT) 3.4L 4-cyl dieselReference

Fuel tank114.7 LReference

Engine79.0 kWReference

Fiat Powertrain Technologies (FPT) F5HReference

turbocharged air-to-air aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

Bore/Stroke99 x 110 mmReference

EmissionsInterim Tier 4Reference

Emission controlcooled exhaust-gas recirculation (EGR)Reference

Power79.0 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Air cleanerdual dry elementReference

Pre-heatinggrid heaterReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Power at rated engine speed70.4 kWReference

Power at rated engine speed70.5 kWReference

Transmission

12-speed mechanical shuttleReference

12-speed power shuttleReference

20-speed creeperReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synhronized gears in three non-synchronized ranges. Mechanical shuttle shifting.Reference

Typepower shuttleReference

Four synhronized gears in three non-synchronized ranges. Power shuttle shifting.Reference

TypecreeperReference

Gears20 forward and 12 reverseReference

Additional creeper range added to the shuttle transmission.Reference

PTO & Hydraulics

PTO (claimed)67.9 kWReference

PTO (tested)70.5 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow48.8 lpmReference

Pump flow64.0 lpmReference

Rear TypeIIReference

Controlmechanical upper-link draft sensingReference

Rear lift (at 24"/610mm)2549 kgReference

Drawbarswinging drawbarReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000Reference

Power at rated PTO speed72.1 kWReference

Power at rated PTO speed72.0 kWReference

Dimensions

4WD Wheelbase226 cmReference

Weight3600 kgReference

Rear tire16.9R34Reference

Ag rear16.9R34Reference

Length378 cmReference

Width210 cmReference

Height (ROPS)261 cmReference

Height (cab)254 cmReference

4WD Cab Weight3600 kgReference

Flange axle rear axleReference

2WD Front tread152 to 202 cmReference

4WD Front tread154 to 194 cmReference

Rear tread132 to 194 cmReference

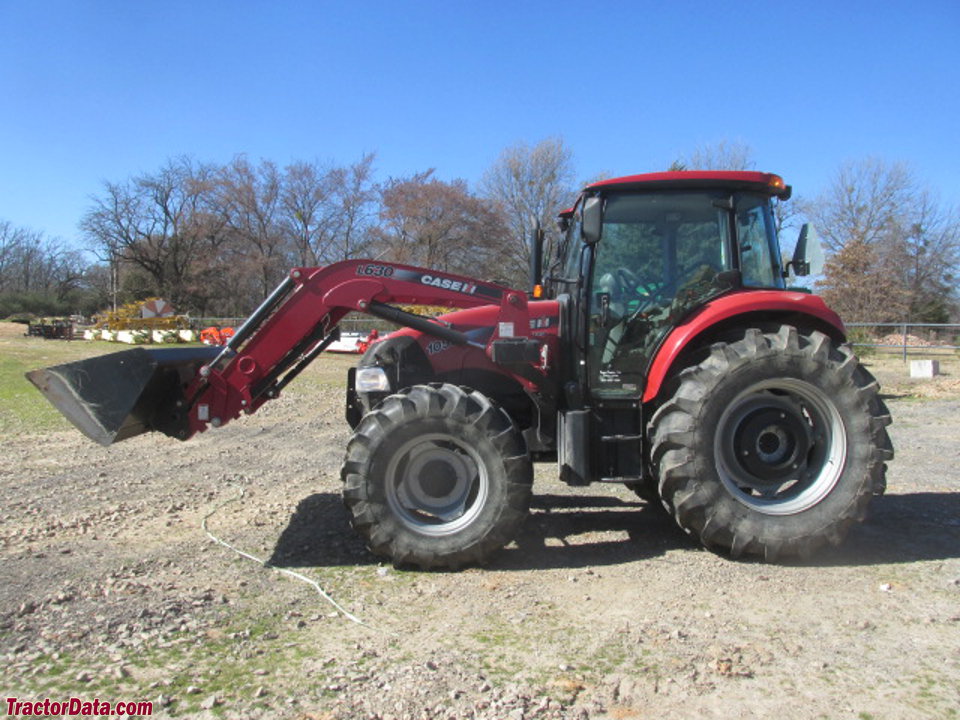

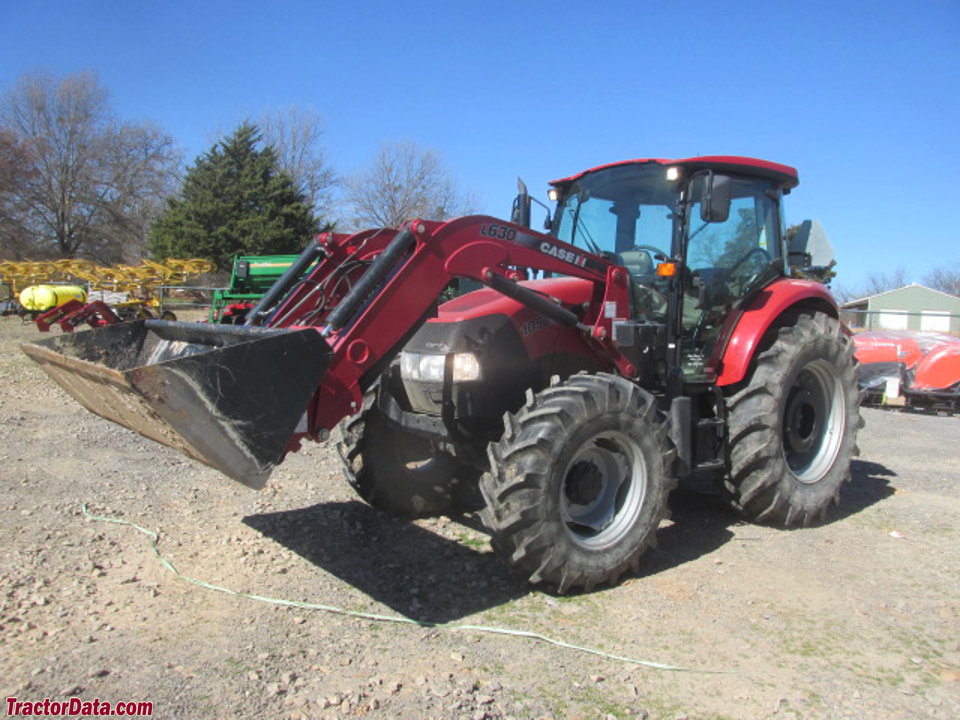

CaseIH Farmall 105C attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

ROPS Battery CCA730Reference

Cab Battery CCA800Reference

Battery volts121Reference

Attachment overview

Case IH L735 NSL loaderReference

Case IH L735 MSL loaderReference

Test results

OECD 2813: diesel 12-speed 4WD ROPSReference

OECD 2815: diesel 12-speed 4WD CabReference

Diesel 12-speed 4WD ROPSAugust 2013 - December 2013, Link: OCED Tractor Test 2813 fileReference

PTO performanceReference

Fuel use22.7 l/hourReference

Fuel use21.6 l/hourReference

Diesel 12-speed 4WD CabAugust 2013 - December 2013, Link: OCED Tractor Test 2815 fileReference

Fuel use22.3 l/hourReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
